Exmark NAVIGATOR Parts Manual

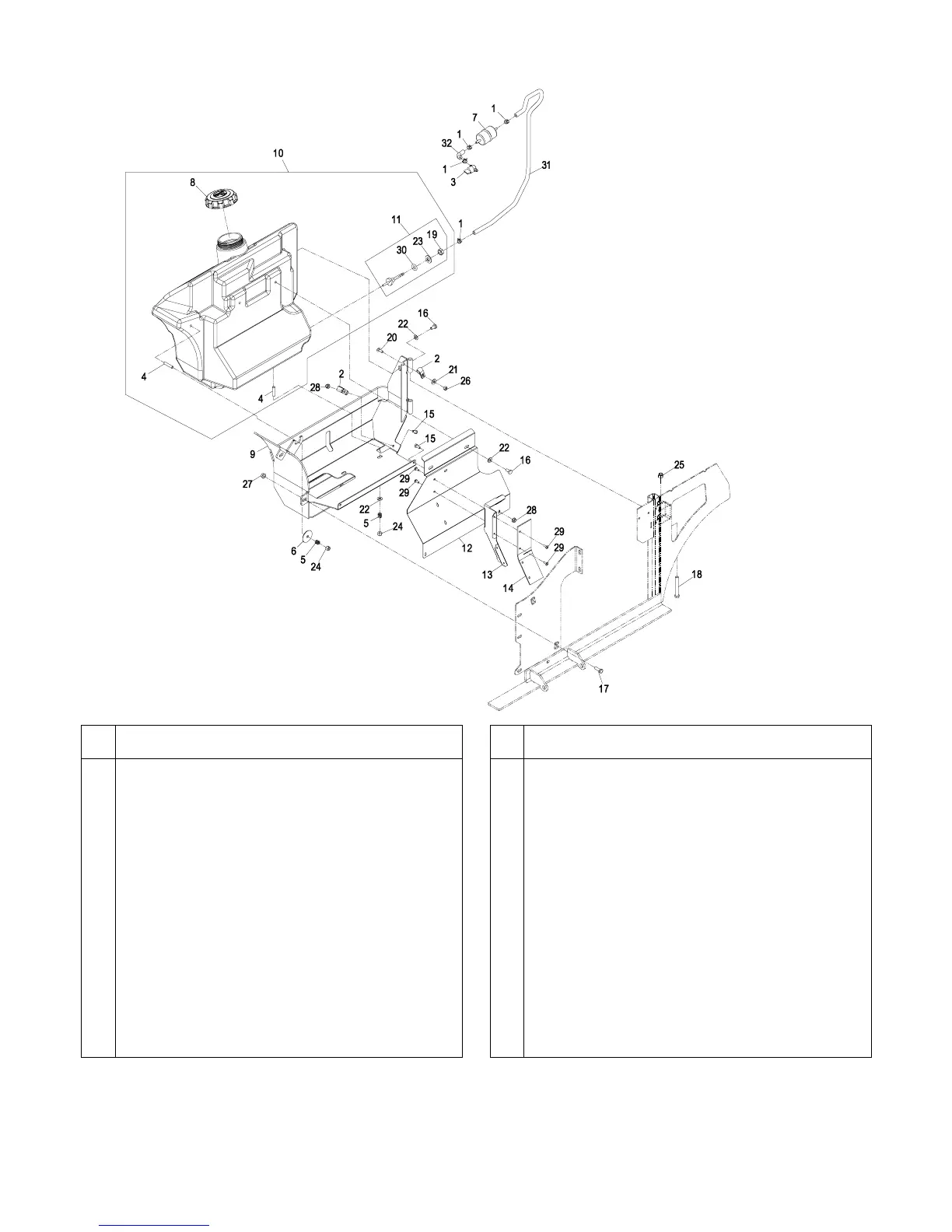

FUEL GROUP
9
Item Part No. Description Qty.
1 1-303077 Clamp-Line, Fuel....................................4
2 1-513762 Clip, Loom 1/2........................................2
3 1-603770 Valve, Fuel.............................................1
4Q 1-633023 Stud, Fuel Tank .....................................3
5 1-633349 Spring, Compression .............................3
6 1-653036 Washer ..................................................1
7
Kohler
Part No. 2405010 Fuel Filter ..................1
8 109-0346 Cap, Fuel...............................................1
9 103-5765-03 Wld, Tank Frame ...................................1
10 109-2957 Asm, Tank Fuel......................................1
11V 103-6057 Fitting, Fuel Bulkhead W/Screen............1
12 109-5344-03 Panel, Tank Shield.................................1
13 103-7095-03 Deflector, Air (27 HP only) .....................1
14 103-9658 Flap, Rubber (27 HP only)......................1
15 321-3 Screw, HH 1/4-20 x 5/8..........................3
16 322-2 Screw, HH 5/16-18 x 5/8 ........................3
Item Part No. Description Qty.
17Q 322-5 Screw, HH 5/16-18 x 1........................... 2
18 323-14 Screw, HH 3/8-16 x 3.............................2
19 3220-5 Nut, Jam 1/2-20.....................................1
20 3229-1 Bolt, Carriage 1/4-20 x 3/4..................... 1
21 3256-2 Washer, 1/4 Std.....................................1
22 3256-23 Washer, 5/16 SAE................................. 5
23 3256-26 Washer, 1/2 SAE................................... 1
24 3296-47 Nut, Nyloc 5/16-18 Thin......................... 3
25 3296-39 Nut, Nyloc 3/8-16...................................2
26 3296-42 Nut, Nyloc 1/4-20...................................1
27 32128-20 Nut, Whizlock 5/16-18 ...........................2
28 32128-33 Nut, Whizlock 1/4-20 .............................3
29 114439 Rivet (27 HP only).................................. 9
30 103-2784 O-Ring................................................... 1
31 109-0284 Hose, Fuel Line 29" ...............................1
32 109-0304 Hose, Fuel Line 2 1/2" ........................... 1
Exmark black touch up spray paint – Gloss black
Q Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #4 going into tank and on threads at
the head of screw, item #17.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting, item #11.
 Refer to Engine Owner’s Manual (Fuel Filter Must be 15 Micron or smaller).

Exmark NAVIGATOR Specifications

General

Drive System	Hydrostatic
Deck Construction	Fabricated
Transmission	Hydrostatic
Deck Material	Steel
Turning Radius	Zero-turn
Cutting Width	42 in
Blade Tip Speed	18, 500 fpm
Engine Type	V-Twin
