Exmark NAVIGATOR Parts Manual

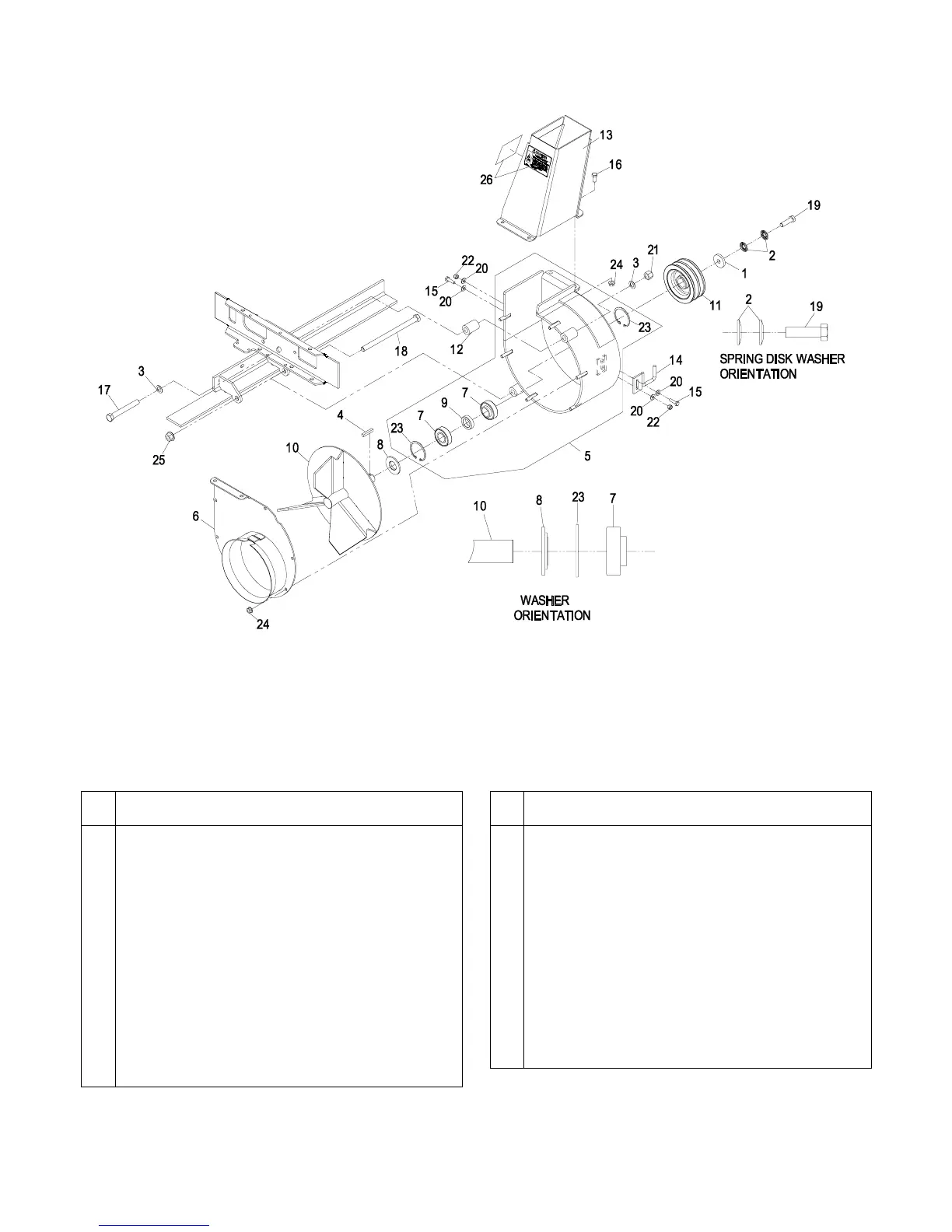

BLOWER GROUP
10
Item Part No. Description Qty.
1 1-543610 Washer ..................................................1
2 1-603610 Washer, Spring Disk 7/16 ......................2
3 18-9810 Washer, Thrust ......................................2
4 67-7490 Key, Machine 1/4 x 1/4 x 1 1/2...............1
5 109-0183 Asm, Blower Housing W/Brgs................1
6 103-3370-03 Wld, Blower Cover Assembly.................1
7 103-3540 Bearing, Ball ..........................................2
8 103-3894 Spacer, Blower.......................................1
9 103-4921 Spacer, Bearing .....................................1
10 103-5194 Wld, Impeller..........................................1
11 103-6733 Sheave, Blower......................................1
12 103-6999 Spacer, Mount .......................................1
13 103-9474 Asm, Discharge Chute W/Decal.............1
14 103-9167-03 Wld, Guide.............................................1
Item Part No. Description Qty.
15 321-6 Screw, HH 1/4-20 x 1............................. 2
16 322-3 Screw, HH 5/16-18 x 3/4........................ 4
17 325-17 Screw, HH 1/2-13 x 4.............................1
18 325-42 Screw, HH 1/2-13 x 8.............................1
19V 3212-6 Screw, HH 7/16-20 x 1 1/2..................... 1
20 3256-22 Washer, 1/4 SAE................................... 4
21 3296-23 Nut, Nyloc 1/2-13...................................1
22 3296-42 Nut, Nyloc 1/4-20...................................2
23 32120-8 Ring, Retaining...................................... 2
24 32128-20 Nut, Whizlock 5/16-18 ...........................10
25 32128-49 Nut, Whizlock 1/2-13 .............................1
26 109-7318 Decal, Danger........................................ 2
27O 109-0184 Asm, Blower Complete ..........................1
Exmark black touch up spray paint – Gloss black.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screw, item #19.
O Complete blower assembly contains all items shown except items #11, #14, #20(4), #15(2) and #22(2).

Exmark NAVIGATOR Specifications

General

Drive System	Hydrostatic
Deck Construction	Fabricated
Transmission	Hydrostatic
Deck Material	Steel
Turning Radius	Zero-turn
Cutting Width	42 in
Blade Tip Speed	18, 500 fpm
Engine Type	V-Twin
