Exmark NAVIGATOR Parts Manual

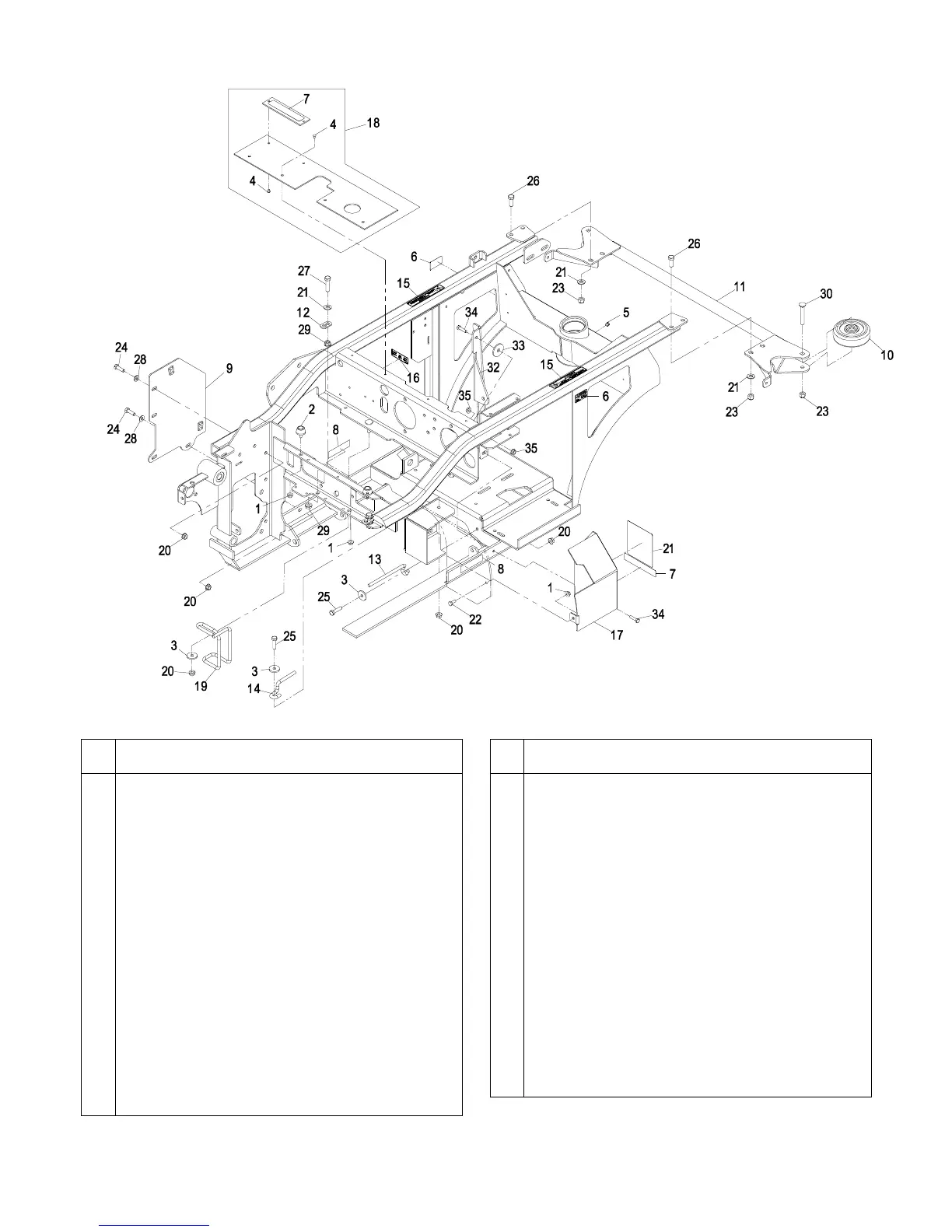

MAINFRAME GROUP (cont.)
5
Item
Part No.
Description Qty.
1 32128-33 Nut, Whizlock 1/4-20..............................5
2 109-2365 Bumper..................................................2
3 1-613235 Washer ..................................................3
4 1-803035 Rivet 3/16 x 1/4......................................6
5 1-811010 Plug .......................................................1
6 65-2690 Decal, Hot Surface.................................2
7 98-4361 Decal, Warning ......................................2
8 98-5954 Decal, Danger........................................2
9 109-2487-03 Wld, Fender...........................................1
10 103-5408 Wheel ....................................................2
11 109-0925-03 Wld, Bumper Rear .................................1
12 103-6537 Tab, Spring Anchor................................2
13 103-8333 Guide, Belt.............................................1
14 103-8349 Guide, Belt.............................................1
15 103-8495 Decal, Pinch Point .................................2
16 103-8611 Decal, Relay ..........................................1
17 103-9475 Asm Drive, Shield ..................................1
18 103-9476 Asm, Shield W/Decal.............................1
Item
Part No.
Description Qty.
19 103-9022 Guide, Belt............................................. 1
20 32128-20 Nut, Whizlock 5/16-18 ...........................7
21 103-9274 Decal, Belt Routings .............................. 1
22 321-3 Screw, HH 1/4-20 x 5/8.......................... 1
23 3296-39 Nut, Nyloc 3/8-16...................................6
24 322-5 Screw, HH 5/16-18 x 1...........................4
25 322-6 Screw, HH 5/16-18 x 1 1/4.....................2
26 323-6 Screw, HH 3/8-16 x 1............................. 4
27 323-8 Screw, HH 3/8-16 x 1 1/2....................... 2
28 3256-23 Washer, 5/16 SAE................................. 4
29 3290-357 Nut, Whizlock 3/8-16 .............................4
30 3231-31 Bolt, Carriage 3/8-16 x 2 1/2..................2
31 3256-24 Washer, 3/8 SAE................................... 6
32 109-5874-03 Brace, PTO............................................ 1
33 1-213069 Spacer...................................................1
34 321-6 Screw, HH 1/4-20 x 1............................. 2
35 32128-33 Nut, Whizlock 1/4-20 .............................5
Exmark black touch up spray paint – Gloss black

Exmark NAVIGATOR Specifications

General

Drive System	Hydrostatic
Deck Construction	Fabricated
Transmission	Hydrostatic
Deck Material	Steel
Turning Radius	Zero-turn
Cutting Width	42 in
Blade Tip Speed	18, 500 fpm
Engine Type	V-Twin
