Exmark NAVIGATOR Parts Manual

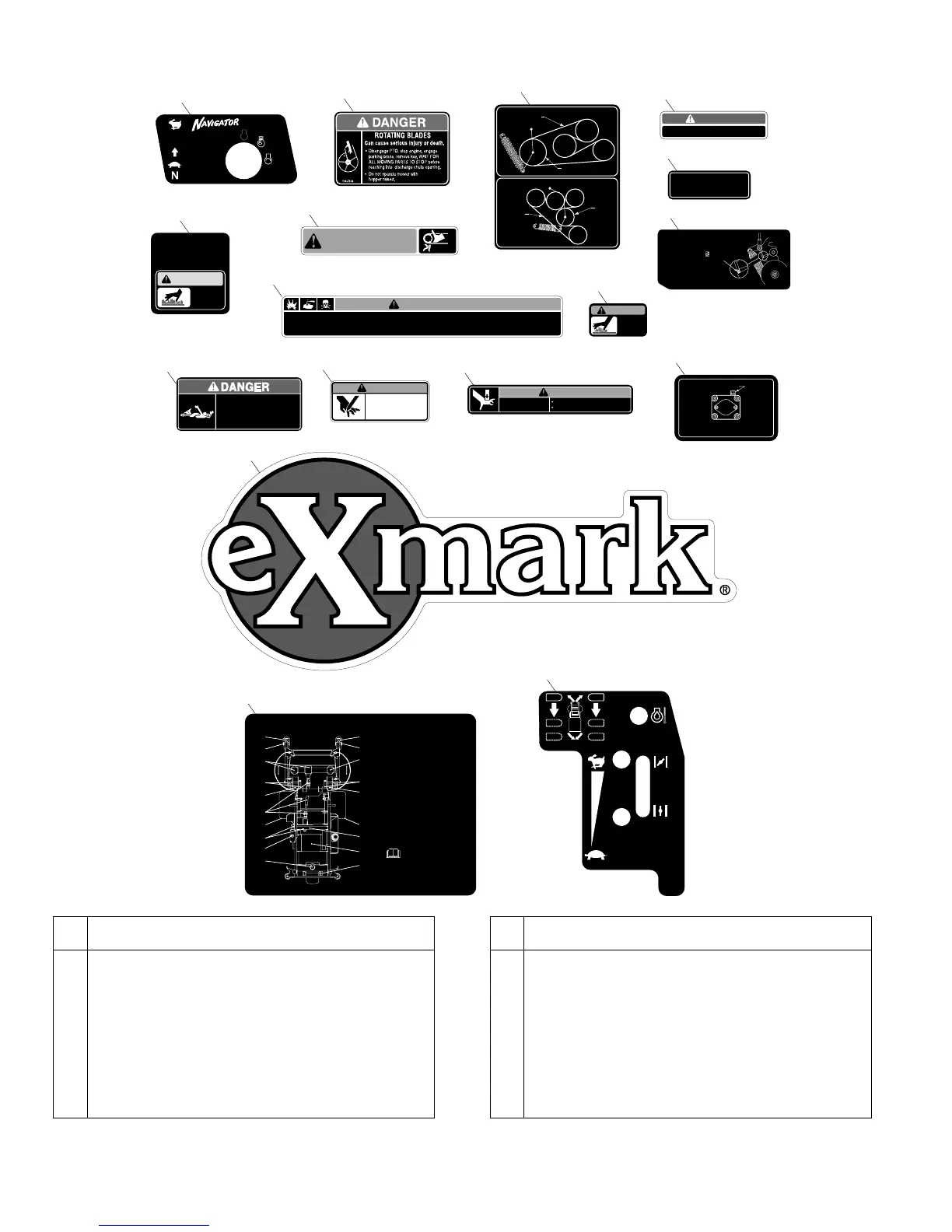

DECALS GROUP
25
103-9274
PTO DRIVE BELT ROUTING
BELT:
103-6737
JACK
SHAFT
ENGINE
BLOWER
IDLER
PUMP DRIVE BELT ROUTING
ENGINE
PUMP PUMP
IDLER
IDLER
BELT:
103-4244
WHEN EN GA GE D, IDLER A RM
POSITION MUST BE IN AREA
OR ADJUSTMENT IS REQUIRED.
READ OPERATOR’S MANUAL
FOR ADJUSTMENT PROCEDURE.
103-9 034
SERVICE AID
Every 8 hours:
1. Chec k engine o il
2. Grease front caster wheel bearings
Every 40 hours:
3. Check hydraulic oil
(Use only Mobil 1 15W-50 Synthetic
Motor oil)
4. Check tire pressure -- 15 psi
5. Grease de ck drive PTO
6. Check air cleaner
Every 100 h ours:
7. Grease deck lock mechanism
8. Grease deck pivots
9. Check gearbox oil
(Use o nly Mobi l 1 75W-90 ge ar oil)
Yearly:
10. Grease front caster pivots
11. Grease rear caster pivot
12. Grease rear caster wh eel be arings
13. Grease belt idlers
See operator's manual for
additional det ails.
103-9032
10
10
2
2
9
9
8
8
7
5
7
4
13
4
3
12
11
1
6
C
H
O
K
E
T
H
R
O
T
T
L
E
103-8812
STEERING CONTROL
N
R
N
R
103- 8611
START
RELAY
KILL
RELAY
PTO
RELAY
PINCH POINT
Can cause serious inju ry.
WARNING
103-8 495
Only use handles to lift and lower hopper.
Keep hands out from under hopper.
STOP
OFF
RUN
START
IGNITION
SPEED
CONTROL
103-8451
™
PINCH POINT
Can cause serious inju ry.
WARNING
Keep hands clear of door hinge
bars and d oor frame with the
door open.
103-8444
103-8 425
ROTATING DRIVELINE
Can cause serious injury or death.
• Keep all driveline s hields in place.
• Securely attach both ends of the driveline.
DANGER
COVER IS MISSING. DO NOT OPERATE
THIS UNIT WHEN
COVER IS NOT IN PLA CE.
98-5 954
WARNING
9
8
-
4
3
6
1
HOT
SURFACE
65-2690
WARNING
HYDRAULIC OIL - USE ONLY
FILL TO TOP OF BAFFLE
MOBIL 1 SAE 15W-50
SYNTHETIC ENGINE OIL
CAUTION
HOT
SURFACE
1-523552
10
11
12
13
15
16
1
17
6
2
3
4
5
7
8
9
WARNING
1-513747
BATTERY CONTAINS SULFURIC ACID, AVOID CONTACT
AND ALWAYS SHIELD EYES, FACE, SKIN AND CLOTHING
FROM BATTERY. CIGARETTES, FLAMES OR SPARKS
COULD CAUSE BATTERY TO EXPLODE. DO NOT CHARGE
OR USE BOOSTER CABLES OR ADJUST POST CONNECT-
IONS WITHOUT PROPER TRAINING. IN EVENT OF AN
ACCIDENT FLUSH WITH WATER AND CALL A PHYSICIAN
IMMEDIATELY. KEEP OUT OF REACH OF CHILDREN.
109-4273
DRIVE WHEEL RELEASE
One turn counterclockwise to release.
Do not over-tighten.
14
Item Part No. Description Qty.
1 103-8451 Decal, Ignition/Speed Control ................1
2 109-7318 Decal, Danger........................................2
3 103-9274 Decal, Belt Routing................................1
4 98-5954 Decal, Missing Cover.............................2
5 103-8611 Decal, Relay ..........................................1
6 103-9034 Decal, Clutch Adjustment.......................1
7 1-523552 Decal, Hydraulic Tank............................1
8 98-4361 Decal, Warning......................................2
9 1-513747 Decal, Battery........................................1
Item Part No. Description Qty.
10 65-2690 Decal, Hot Surface ................................ 2
11 103-8425 Decal, Driveline .....................................1
12 103-8444 Decal, Pinch Point ................................. 2
13 103-8495 Decal, Pinch Point ................................. 2
14 109-4273 Decal, Wheel Motor Release .................1
15 103-6024 Decal, Exmark Logo ..............................1
16 103-9032 Decal, Service Aid Navigator ................. 1
17 109-4638 Decal, Instrument Panel ........................ 1
103-9502 Kit, Decal

Exmark NAVIGATOR Specifications

General

Drive System	Hydrostatic
Deck Construction	Fabricated
Transmission	Hydrostatic
Deck Material	Steel
Turning Radius	Zero-turn
Cutting Width	42 in
Blade Tip Speed	18, 500 fpm
Engine Type	V-Twin
