Exmark NAVIGATOR Parts Manual

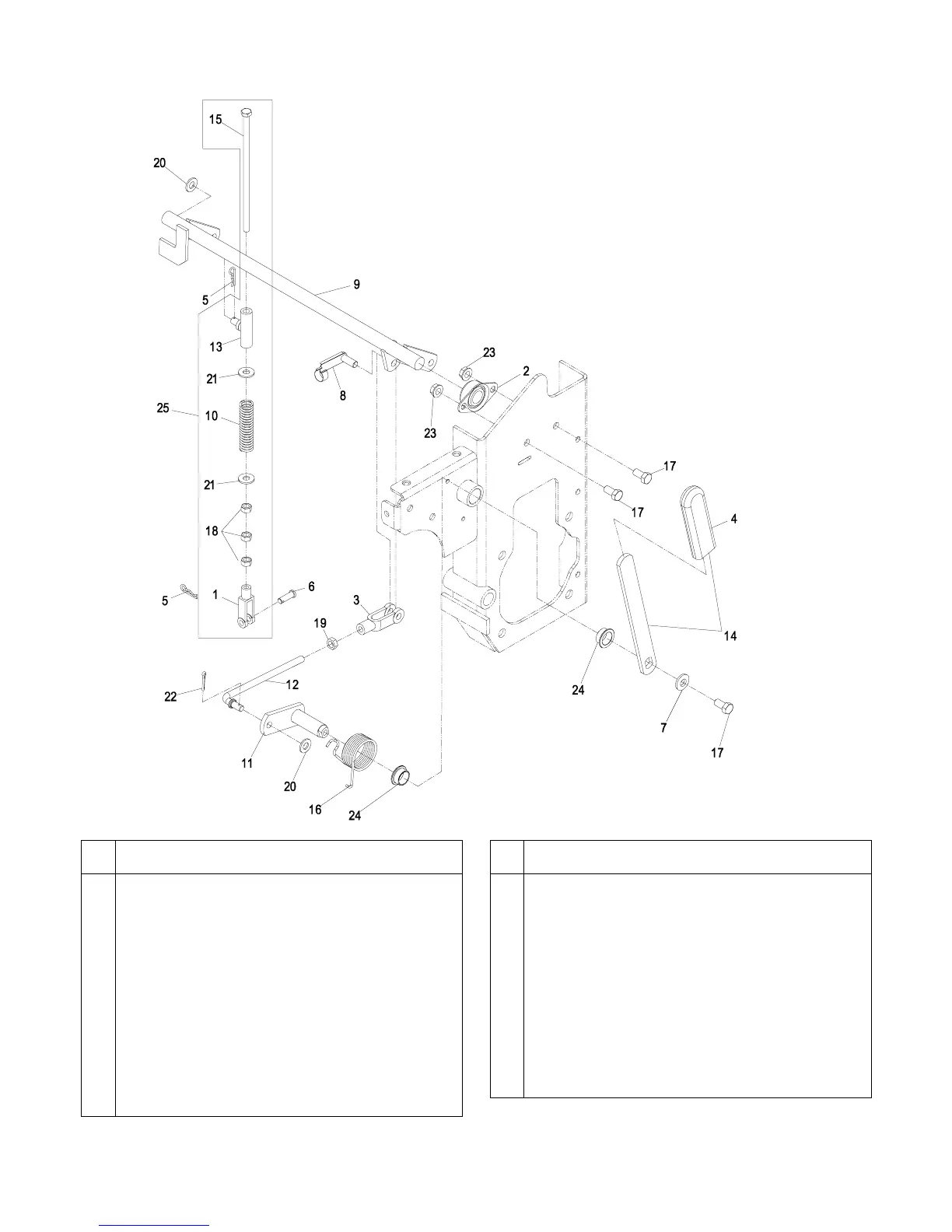

PARK BRAKE GROUP
6
Item Part No. Description Qty.
1 1-303105 Yoke, Adjustable....................................2
2 1-633102 Bearing, Side Flange .............................2
3 1-633131 Yoke, Brake Linkage..............................1
4 1-633268 Grip, Brake Lever...................................1
5 1-806003 Hairpin, Cotter........................................4
6 1-808280 Pin, Clevis 5/16 x 1 ................................2
7 98-5975 Washer, Spring Disk 3/8 ........................1
8 103-2399 Pin, Clevis Spring 3/8.............................1
9 103-4383-03 Wld, Brakeshaft .....................................1
10 103-4388 Spring, Brake.........................................2
11 103-4390 Wld, Brake Pivot ....................................1
12 103-4399 Rod, Linkage Brake ...............................1
13 103-6576 Wld, Swivel Brake..................................2
Item Part No. Description Qty.
14 103-9469 Asm, Park Brake Handle W/Grip ........... 1
15 103-7377 Screw, HH 5/16-24 x 7 3/4..................... 2
16 103-9915 Spring, Torsion RH ................................ 1
17 323-4 Screw, HH 3/8-16 x 3/4.......................... 5
18 3219-2 Nut, Hex 5/16-24.................................... 6
19 3219-3 Nut, Hex 3/8-24...................................... 1
20 3256-24 Washer, 3/8 SAE................................... 3
21 3256-3 Washer, 5/16 Std................................... 4
22 3272-10 Pin, Cotter 1/8 x 3/4...............................1
23 3290-357 Nut, Whizlock 3/8-16 .............................4
24 108519 Bushing, Bronze .................................... 2
25 109-0714 Asm, Brake Linkage .............................. 2
Exmark black touch up spray paint – Gloss black

Exmark NAVIGATOR Specifications

General

Drive System	Hydrostatic
Deck Construction	Fabricated
Transmission	Hydrostatic
Deck Material	Steel
Turning Radius	Zero-turn
Cutting Width	42 in
Blade Tip Speed	18, 500 fpm
Engine Type	V-Twin
