Exmark VIKING 408

To Next Page

To Previous Page

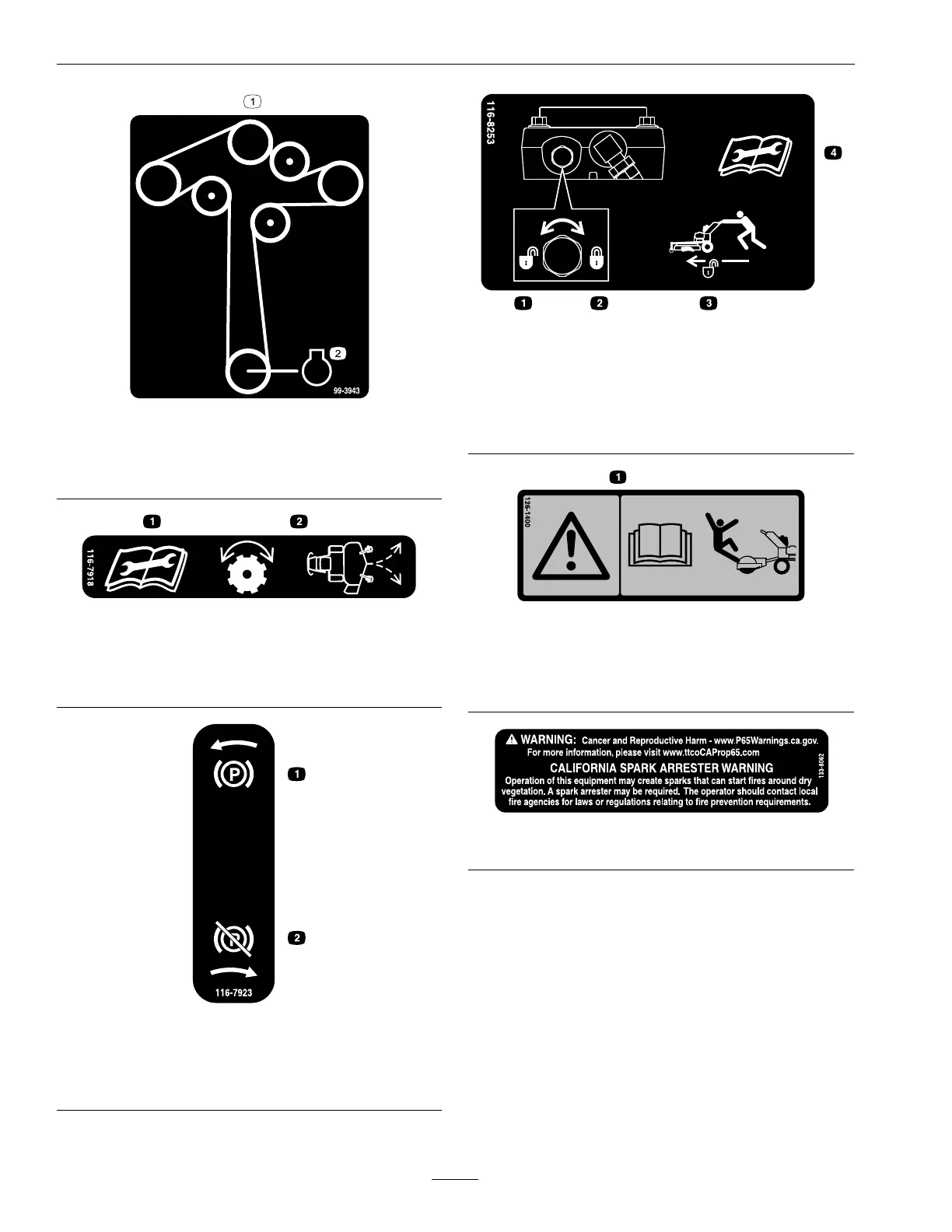

Safety

decal99-3943

99-3943

1.Beltrouting

2.Engine

decal116-7918

116-7918

1.Readtheinstructions

beforeservicingor

performingmaintenance.

2.Turnknobtoadjust

tracking.

decal116-7923

116-7923

1.Pullleverupand

rearwardtoengage

thebrake.

2.Pushleverforwardand

downtodisengagethe

brake.

decal116-8253

116-8253

1.Rotatecounterclockwise

torelease.

3.Unlocktopushmachine.

2.Rotateclockwisetolock.4.Readtheinstructions

beforeservicingor

performingmaintenance.

decal126-1400

126-1400

1.Warning-ReadtheOperator’smanual.UseonlyExmark

ridingattachments.Useofotherridingattachmentsmay

createahazardousconditionresultingininjury.

decal133-8062

133-8062
