CHAPTER 78
PAGE 9
MAINTENANCE MANUAL EXTRA 300SC
PAGE DATE: 1. August 2014

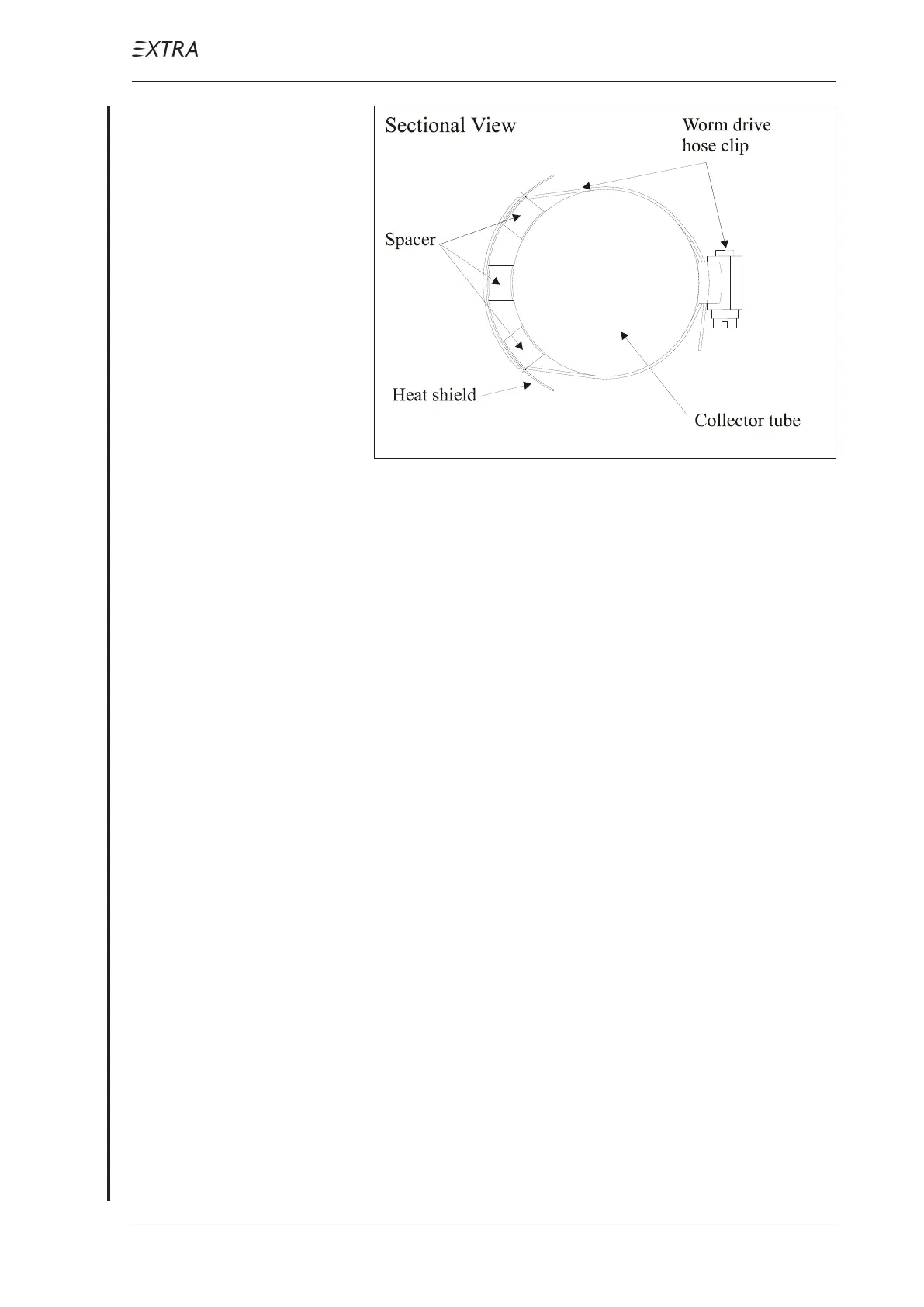

Figure 4 Heat Shield Replacement
78-10-20 Sky Dynamics 6 in 1
Description
Each engine cylinder has a separate exhaust pipe routed
down and merging in a single collector tube with increasing
diameter. Several exhaust pipes feature slip joints to allow
for thermal expansion.
An end pipe protrudes from the collector tube through the
lower engine cowling for exhaust gas discharge to the
atmosphere
Operation
The exhaust pipes are of welded stainless steel. These pipes
are routed from the cylinders down to the single collector
pipe under the engine.
