positioning
For correct product functioning, it is recommended to position it so that it is perfectly level, using a spirit level.
The diagram to the side illustrates the behaviour of the pump
used on our thermo-products at the speeds that can be set.
REARMs

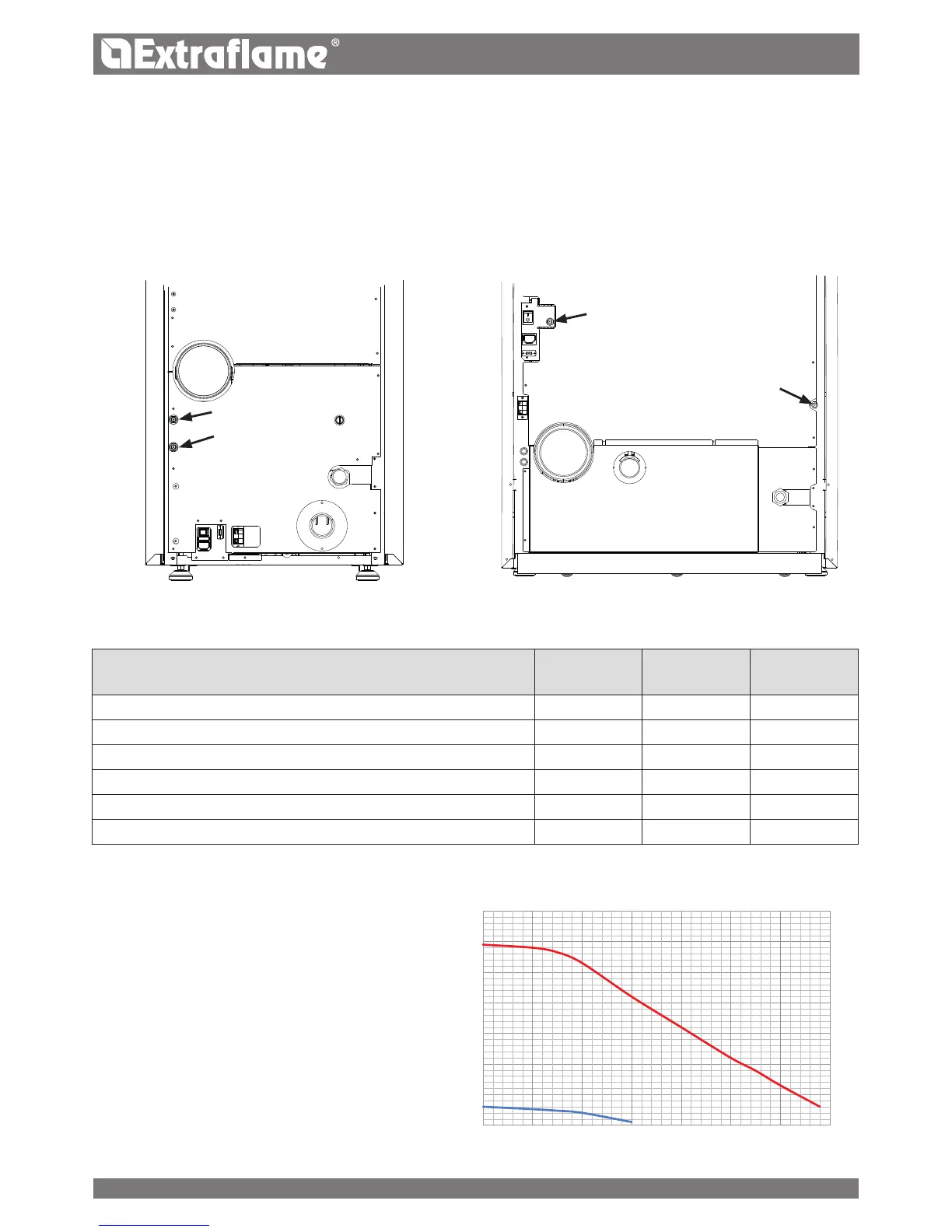

The gures below illustrate the positions of the tank (85°C) and H2O (100°C) rearms. Contact the qualied technician if one of the rearms
should be triggered, so as to verify the cause.
FEAtUREs
Hp15 Hp22 Hp30
Water content of the thermo-product heat exchanger (l)
32
32 66
Volume of expansion vessel integrated in the thermo-product (l)
8
* 8* 12*
3 bar safety valve integrated in the thermo-product
P P P
Minimum and maximum pressure switch integrated into the thermo- product
P P P
Pump integrated into the thermo-product
P P P
Pump max. head (m) 6 6 6
* Envision a possiblE additional Expansion vEssEl dEpEnding on thE systEm watEr contEnt.
Flow rate (m
3
/h)
Head (m)
10
