STBY ADDITIONAL ROOM THERMOSTAT
PLEASE NOTE : Installation must be performed by an authorised technician
Is it possible to thermostat a room adjacent to the room where it was placed the generator just connecting a room thermostat according to
the procedure described in the next step (it is advisable to position the optional mechanical thermostat at a height of 1.50 m from the oor)
. The generator functioning with the external thermostat connected to the STBY terminal can be dierent on the basis of the activation or
disabling of the STBY function.
The STBY clamp leaves the factory jumpered, therefore it is always with closed contact (on request).
ADDITIONAL ROOM THERMOSTAT FUNCTIONING WITH STBY ACTIVE STBY ON
When the contact or the external thermostat is satised (open contact / temperature reached), the generator will switch o. As soon as the
contact or external thermostat switches to the "not satised" status (closed contact/temperature to be reached) it will re-ignite.
PLEASE NOTE: the generator operation depends on the temperature of the water inside the thermal-product and relevant factory
setting. If the generator is in H OFF (water temperature reached), any additional contact or thermostat request will be ignored.
OPERATION OF THE AMBIENT ADDITIONAL THERMOSTAT WITH STBY DISABLED STBY OFF
When the contact or external thermostat is satised (open contact / temperature reached), the generator will go to minimum. As soon as the
contact or external thermostat switches to the "not satised" status (closed contact / temperature to be reached) the generator will start to
work again at the pre-set power.
PLEASE NOTE: the generator operation depends on the temperature of the water inside the general and relevant factory setting. If
the generator is in H OFF (water temperature reached), any additional contact or additional thermostat request will be ignored.
ADDITIONAL ROOM THERMOSTAT INSTALLATION
� Switch the appliance o using the master switch positioned on the rear of the generator.
� Remove the plug from the socket.

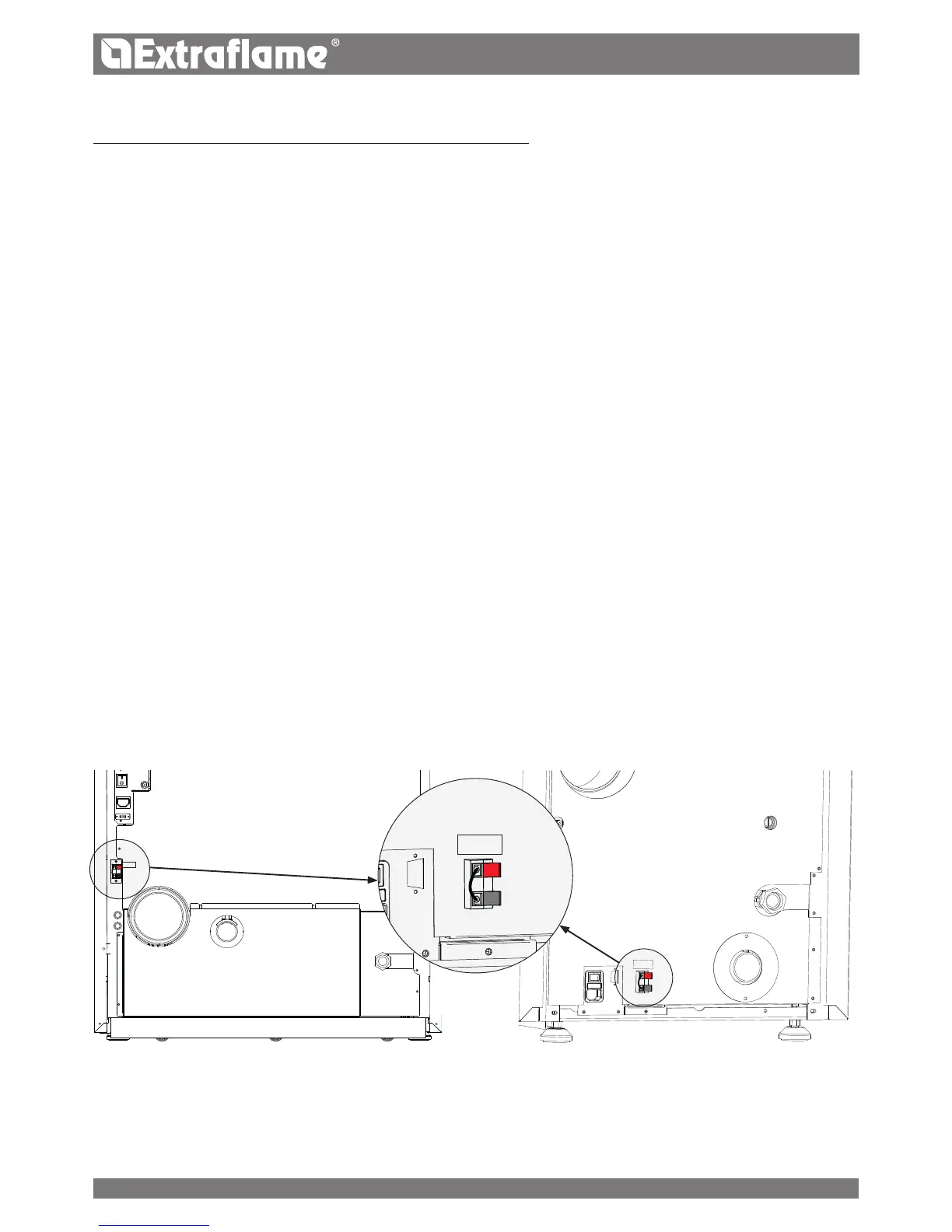

� Refer to the electrical diagram to connect the two thermostat cables onto the relative clamps positioned on the rear of the machine, one
is red and the other one is black (STBY clamp).
AUX
In case you are using the manufacturer's Power Line Communication devices, a qualied technician must perform the connection directly on
the board. For more information, contact your local dealer.
