Extraflame HP 22 User Manual

A
B
C
D
D
F
E
F
E
G
G
H
H
I
I
J
J
HP30
HP 15 - 22
ENGLISH
HP 15
WATER FLOW
(kg/h)
WATER SIDE
RESISTANCE
(Pa)
Temperature jump corresponding
ΔT = 10K 1312 160
ΔT = 20K 656 40
HP 22
WATER FLOW
(kg/h)
WATER SIDE
RESISTANCE
(Pa)
Temperature jump corresponding
ΔT = 10K 1938 367
ΔT = 20K 969 92
HP 30
WATER FLOW
(kg/h)
WATER SIDE
RESISTANCE
(Pa)
Temperature jump corresponding
ΔT = 10K 2668 687
ΔT = 20K 1334 172

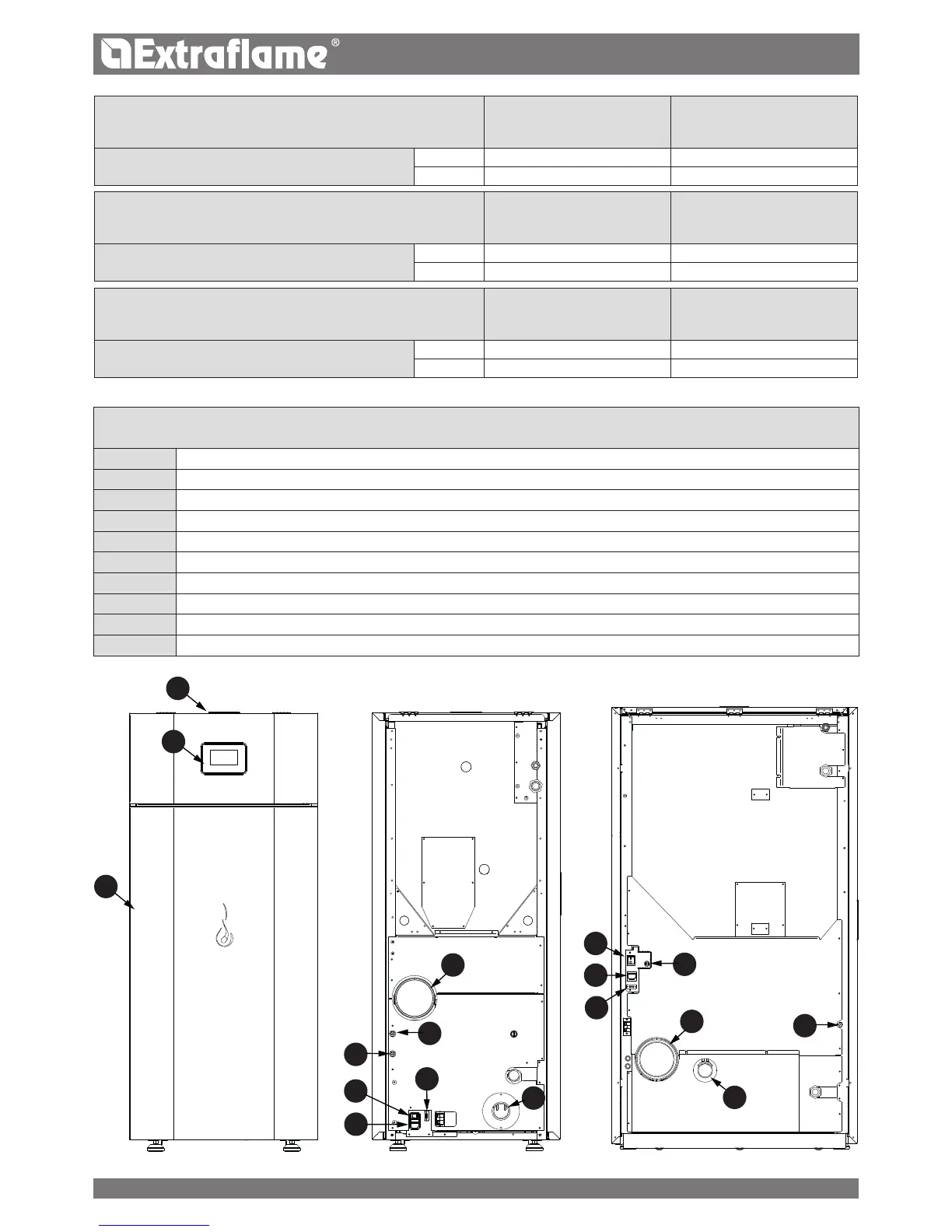

IDENTIFICATION OF COMPONENTS
A Display
B Pellet tank cover
C Door
D Power socket for electric cable
E Safety thermostat (manual reset) 100°C
F Safety thermostat (manual reset) 85°C
G Combustion ue pipe
H Air intake tube for combustion
I Main power switch
J Serial port
5
