COMFORT MAXI INSTALLATION
up to the base, connect the plug to the power socket
and set the master switch on position 1: the display
should come on.
The bottom grill of the insert must stand
at least 1 cm above the marble re top of
the facing.

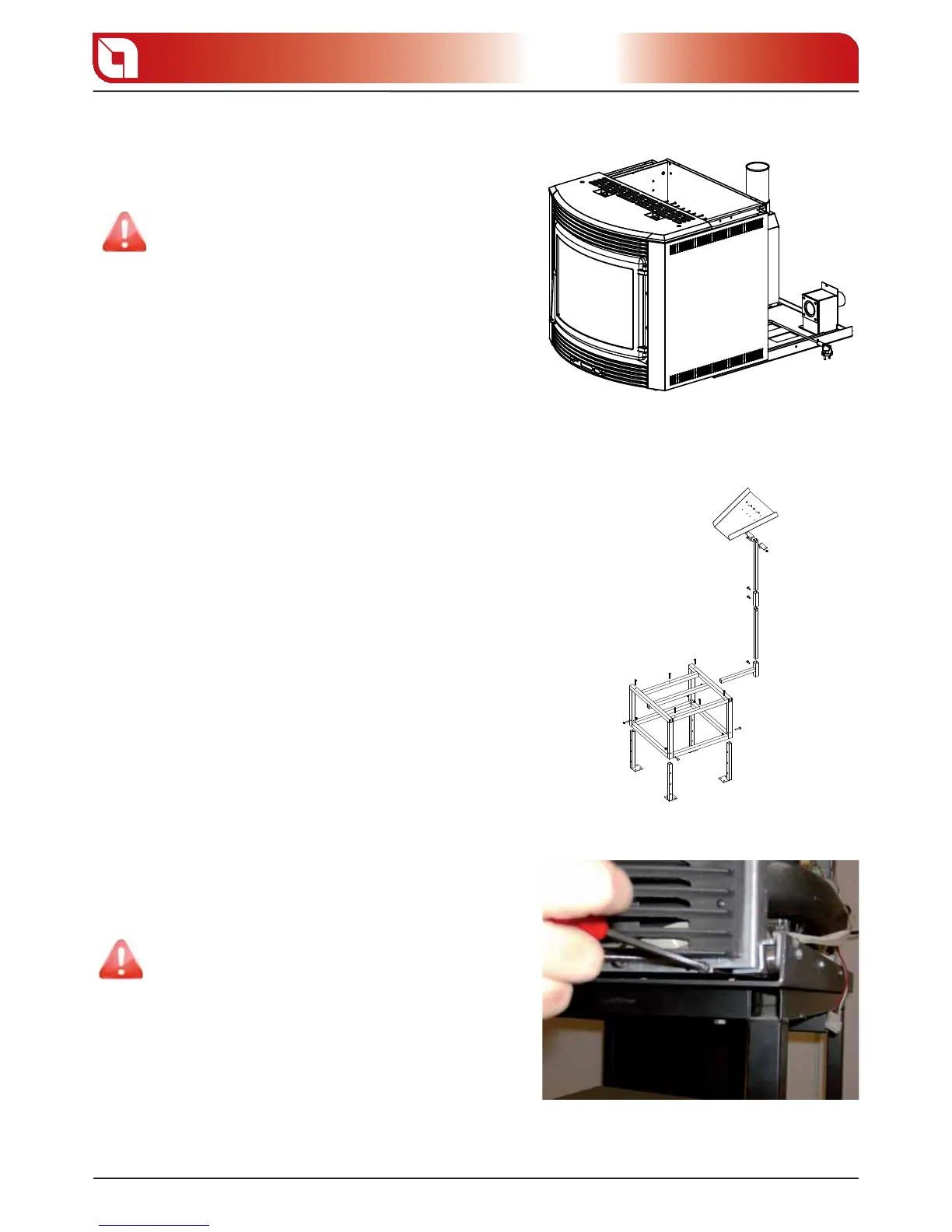

INSTALLATION WITH PEDESTAL
OPTIONAL
Description of components:
Comfort Maxi
Pedestal adjustable in height
Side feeding hopper
Adjustable hopper support
Position the base in the desired point and adjust to the
desired height using the feet (the bolts are located on
the four outer edges of the pedestal at the bottom).
Provide a power outlet on the rear of the pedestal that
will be easy to reach once the installation is complete.
Fix the pedestal to the oor using strong steel screw
anchors 8 mm diameter.
Fix the sliding base to the frame using the bolts.
Connect the exhaust outlet and air intake as described
in the previous section.
Then tilt the insert so that the wheels t into the
guide rails, slide it until the exhaust auger coupling is
completely inserted in the exhaust conveyor box.
Then use the socket wrench provided to turn the screw
anticlockwise.
To check that the insert is correctly coupled with the
base, connect the plug to the power outlet: the display
should light up.
Mount the hopper support for the pellet and insert it in
the appropriate coupling.
The hopper support can be tted on either
side of the insert.
gure 7.4
gure 7.5
gure 7.6
