Table 26: Environmental Specifications
Operating temperature 0°C to 60°C (32°F to 140°F)
Storage temperature -45°C to 85°C (-49°F to 185°F)
Operating relative humidity 10% to 90% operating/95% non-condensing
RPS-150XT Connector
See Figure 47 and Table 27 on page 75or pin locations and function.
Note
The following information is for troubleshooting purposes only. For proper operation, use only
the RPS cable supplied with the RPS-150XT. This cable is specially designed for this
application and meets all necessary regulatory and safety standards.
Caution
The use of non-approved cables will void your warranty.

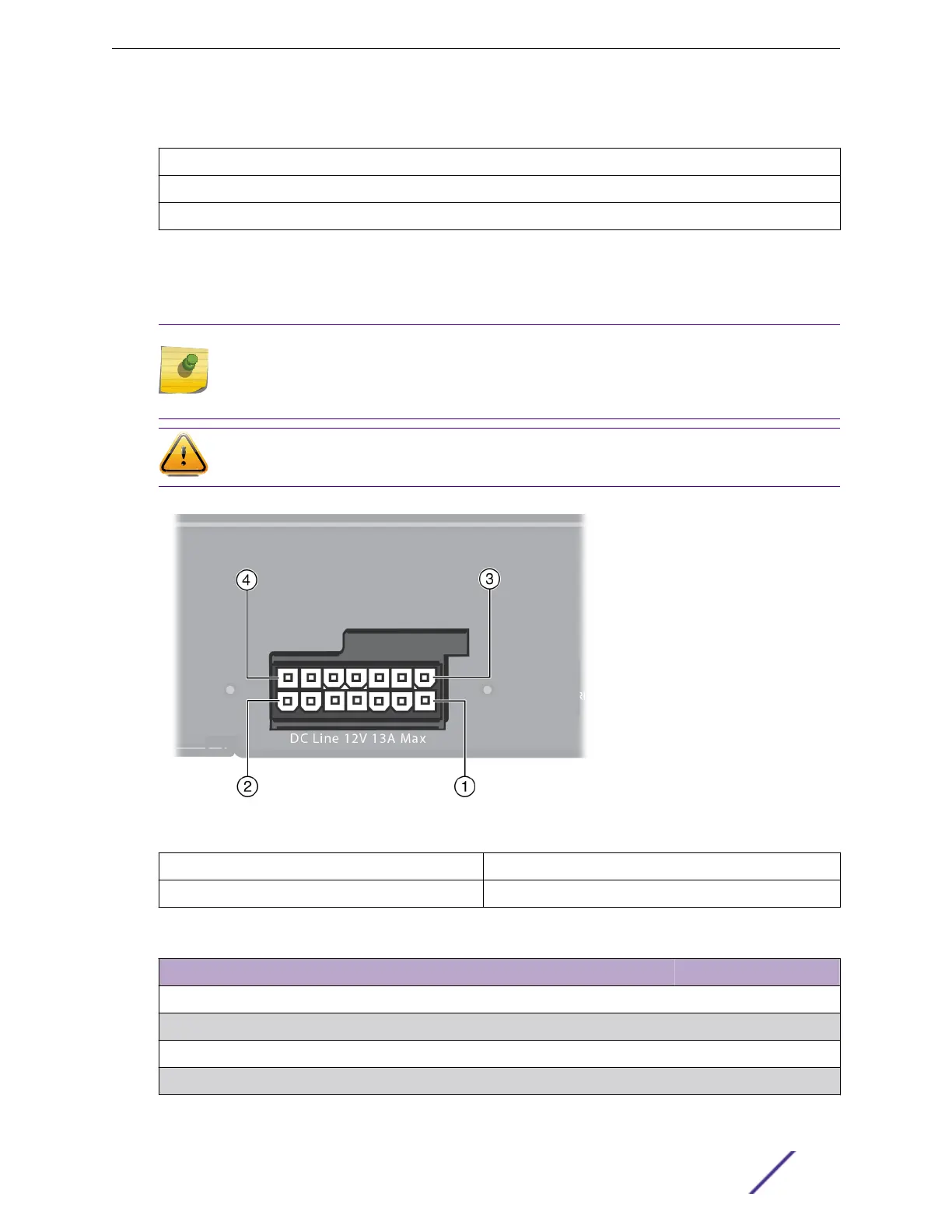

Figure 47: RPS-150XT Connector Pin Locations
1 = Pin 1
3 = Pin 8
2 = Pin 7 4 = Pin 14
Table 27: RPS-150XT Connector Pin Functions
Pin Function Pin Function
1 Ground 8 Spare pin
2 Spare pin 9 Spare pin
3 12 V power 10 Power present
4 12 V power 11 Start 1
Technical Specifications
ExtremeSwitching 210 and 220 Series Switches: Hardware Installation Guide 75
