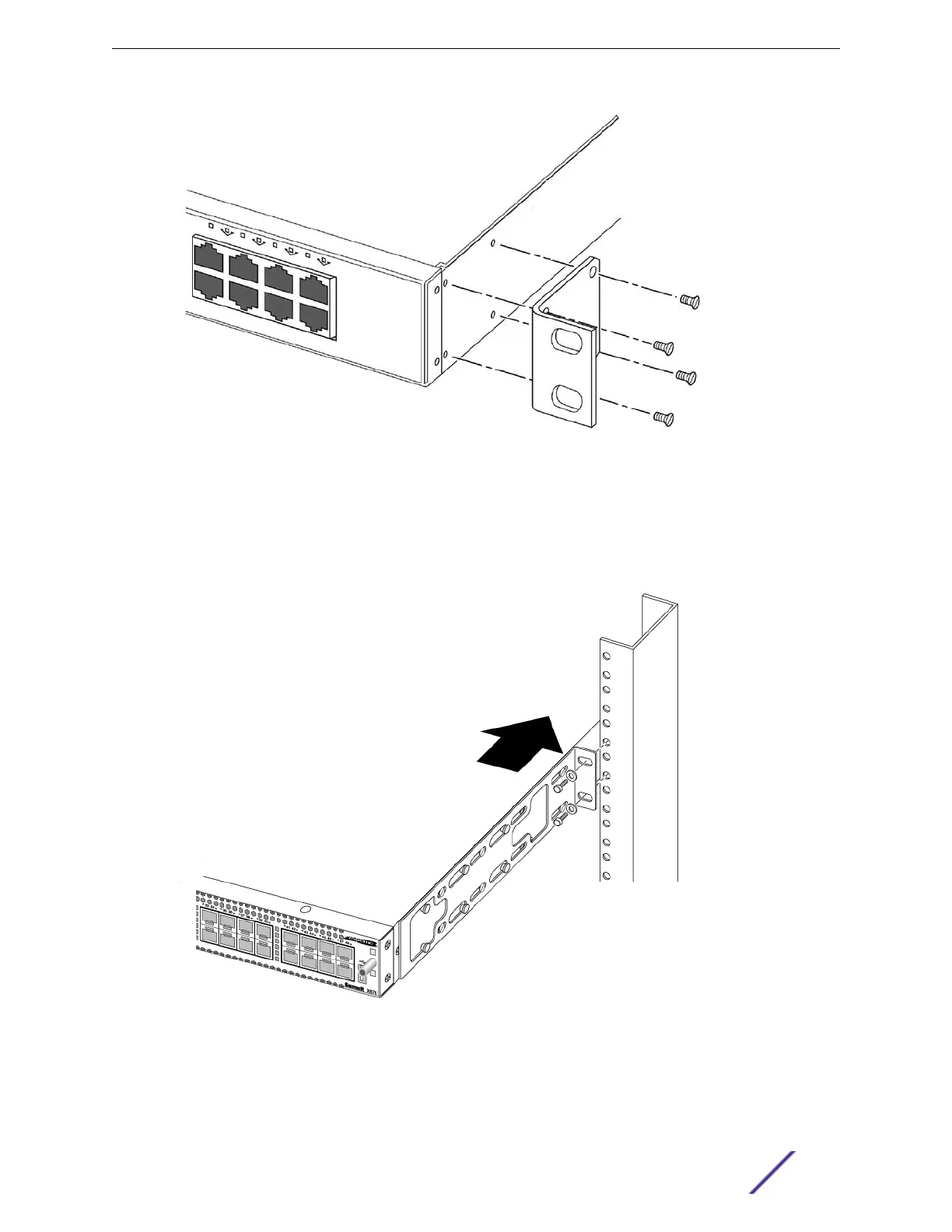

Figure 14: Front Mount: Attaching a Short Mounting Bracket
2 Use the small bracket-mounting screws (provided) to secure the bracket to the switch housing.
3 Repeat step 1 and step 2 to attach the other bracket to the other side of the switch.
4 Slide the switch into the equipment rack or cabinet.
Figure 15 shows an example of a mid-mount installation.
Figure 15: Sliding the Switch into the Rack
5 Secure the mounting bracket flanges to the rack, using screws that are appropriate for the rack.
(Rack-mounting screws are not provided.)
Installing Your Switch
VSP 4900 Series Switches: Hardware Installation Guide 38
