Extron electronics XTP II CrossPoint Series Setup Guide

8 XTP II CrossPoint Series • Installation
NOTE: See item
A
on figure 2 on page 4, figure 3 on
page 5, and figure 4 on page 6.

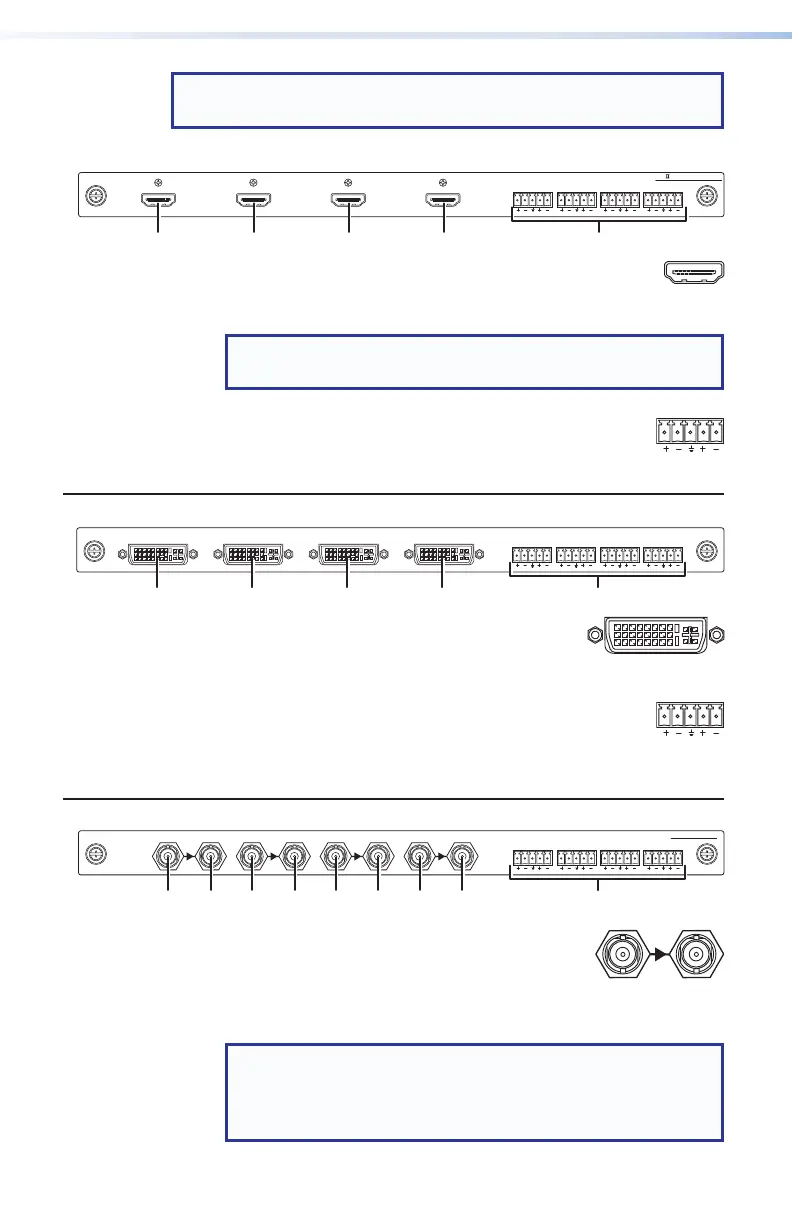

XTP II CP 4i 4K PLUS and XTP CP 4i HDMI (HDMI input boards)
AUDIO
LR LRLR LR
INPUTS
XTP II CP 4i HD 4K PLUS
6666666677
6
HDMI connectors — Connect up to four HDMI
cables between these ports and the HDMI output
port of the digital video sources.
NOTE: See HDMI connectors on page 16 to secure
the connector with a LockIt HDMI Cable Lacing Bracket.
7
Audio (local audio) connectors — Connect
balanced or unbalanced stereo audio inputs to these
3.5 mm, 5-pole captive screw connectors (see Local
audio connectors on page 17 to wire the connectors).
XTP CP 4i DVI Pro (DVI Pro input board)
IN
XTP CP 4i DVI Pro
AUDIO
LR LRLR LR
IN
8888888877
8
DVI connectors — Connect a DVI cable
between this port and the DVI output port of
the digital video source.
7
Audio (local audio) connectors — Connect
balanced or unbalanced stereo audio inputs to
these 3.5 mm, 5-pole captive screw connectors
(see Local audio connectors on page 17 to wire the
connectors).
XTP CP 4i 3G-SDI (3G/HD-SDI/SDI video input board)
IN
AUDIO
LR LRLR LR
IN
XTP CP 4i 3G-SDI
LOOP OUTINPUTLOOP OUTINPUTLOOP OUTINPUTLOOP OUTINPUT
¢¢¢¢¢¢¢¢99999999 77
9
Input connectors — Connect a 3G-SDI,
HD-SDI, or SDI video input to this BNC
connector.
¢
Loop Out connector — Connect a local digital display to this
BNC connector for buffered loop-through of the input signal.
NOTE: The 3G/HD-SDI/SDI board ships with 75-ohm
terminators on the Loop Out connectors. Extron
recommends leaving these installed when the loop out
is not used.
LR
LR
LOOP OUTINPUT
