3.6

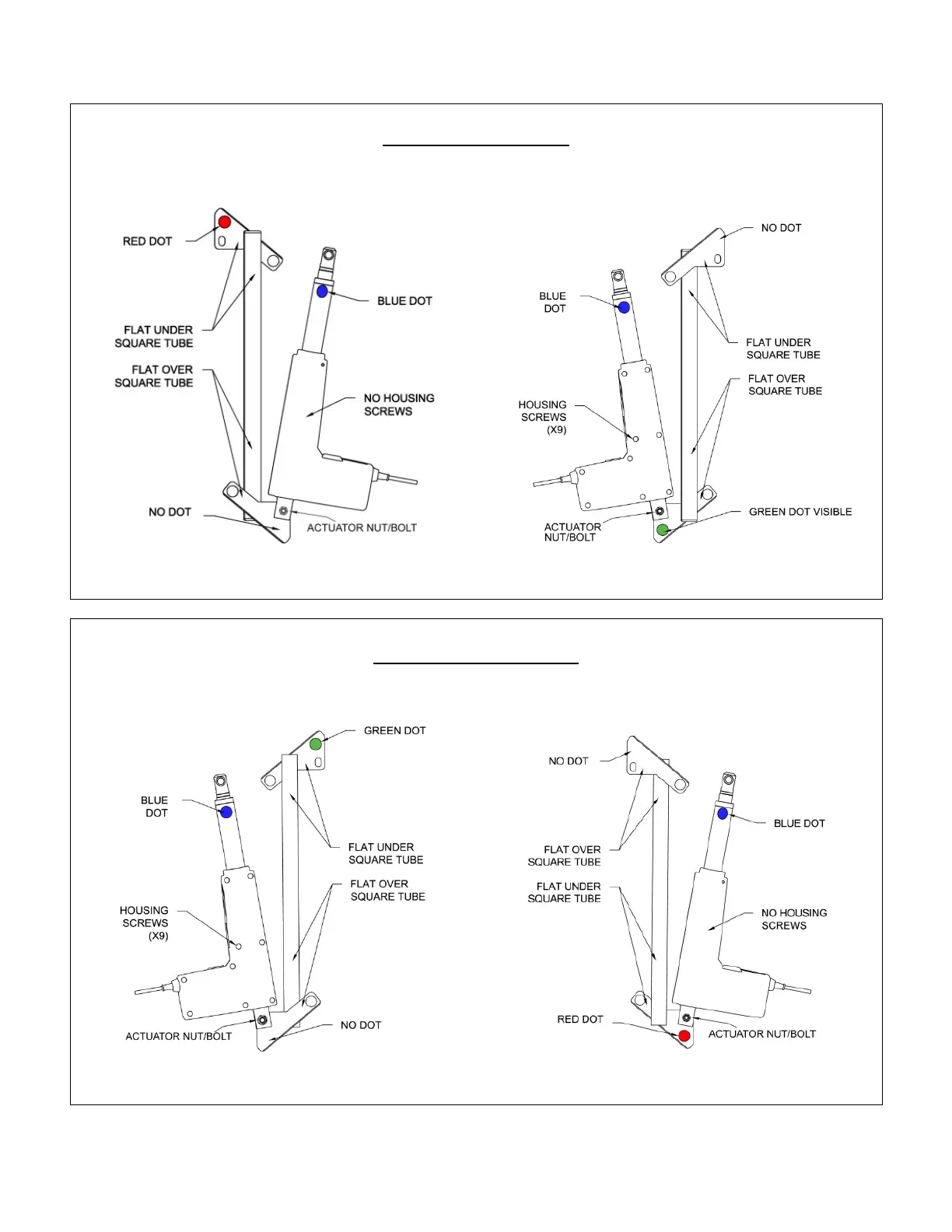

For a left side mount, red dots will be facing outward, away from the bowl (FIG. 8). For a right side
mount, green dots will be facing outward (FIG. 9).
LEFT SIDE MOUNT
FRONT, INSTALLING VIEW REVERSE VIEW
FIG. 8
RIGHT SIDE MOUNT
FRONT, INSTALLING VIEW REVERSE VIEW
FIG. 9
