3-3. DIP Switch (S1~S8) Assignment

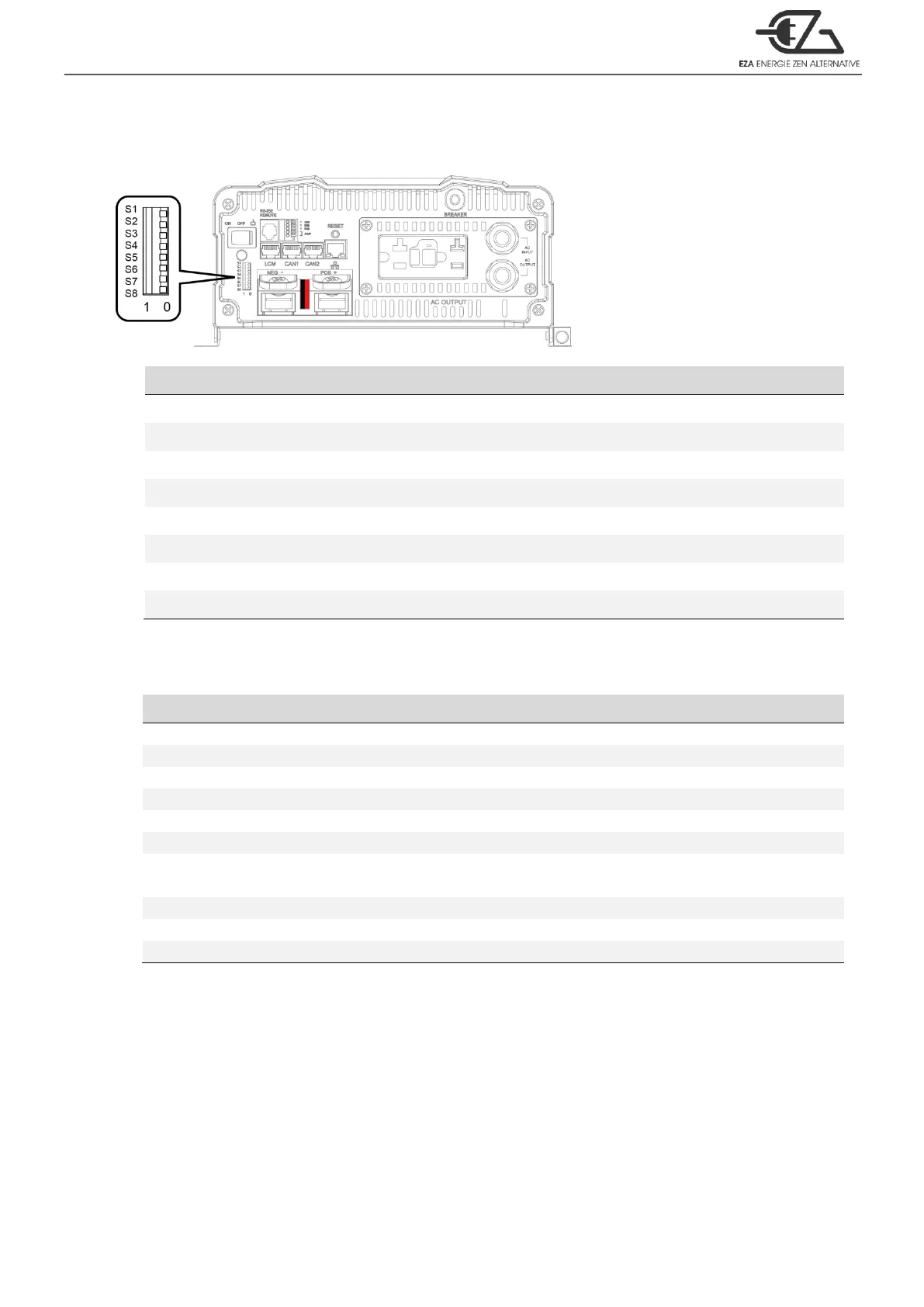

Figure 7. DIP switch (S1~S8)
PIN#
PIN Assignment
1
AC output voltage setting
2
AC output voltage setting
3
AC output frequency setting
4
To set-up 3 Phase output or Energy-saving level
5
To set-up 3 Phase output or Energy-saving level
6
To set-up 3 Phase output or Energy-saving level
7
To set-up DIP Switch S4~S6 for power saving or 3 Phase output
8
To set-up function parameters adjustment via LCM or DIP switch
Table 5. DIP switch (S1~S8) PIN assignment
3-3-1. DIP switch set-up
S1
S2
S3
S4
S5
S6
S7
S8
Scenario
0
0
X
X
X
X
X
X
AC output voltage：100VAC/200VAC
1
0
X
X
X
X
X
X
AC output voltage：110VAC/220VAC
0
1
X
X
X
X
X
X
AC output voltage：115VAC/230VAC
1
1
X
X
X
X
X
X
AC output voltage：120VAC/240VAC
X
X
0
X
X
X
X
X
AC output frequency：50Hz
X
X
1
X
X
X
X
X
AC output frequency：60Hz
X
X
X
X
X
X
0
X
Power saving mode setting (S4~S6); No
master-slave in parallel
X
X
X
X
X
X
1
X
3 Phase output setting (S4~S6)
X
X
X
X
X
X
X
0
Adjust function parameters via LCM
X
X
X
X
X
X
X
1
Adjust function parameters via DIP switch
1=ON / 0=OFF
Table 6. DIP switch set-up
3-3-2. Power Saving Mode
Power Saving Mode is adjustable and set by the Dip Switches,S4, S5 and S6 on the
front panel. Example ECB25：Saving set 2%, the load is below 50W 10 sec. will into
saving mode, more than 150W or more leave saving mode.
A. Power device enter the saving mode
The rate power x setting % = the threshold enter the power saving model
In case the load less than threshold value 5 seconds, the power device will enter
1=ON/0=OFF
