EZA ECB Series - AC WIRING DIAGRAMS - PARALLEL CONFIGURATIONS; 1Ø2 W Parallel AC Wiring Diagram

32
EN
5-4. AC Wiring Diagram
Figure 29. ECB series front panel introduction
【1Φ2W ─ Wiring Diagram】

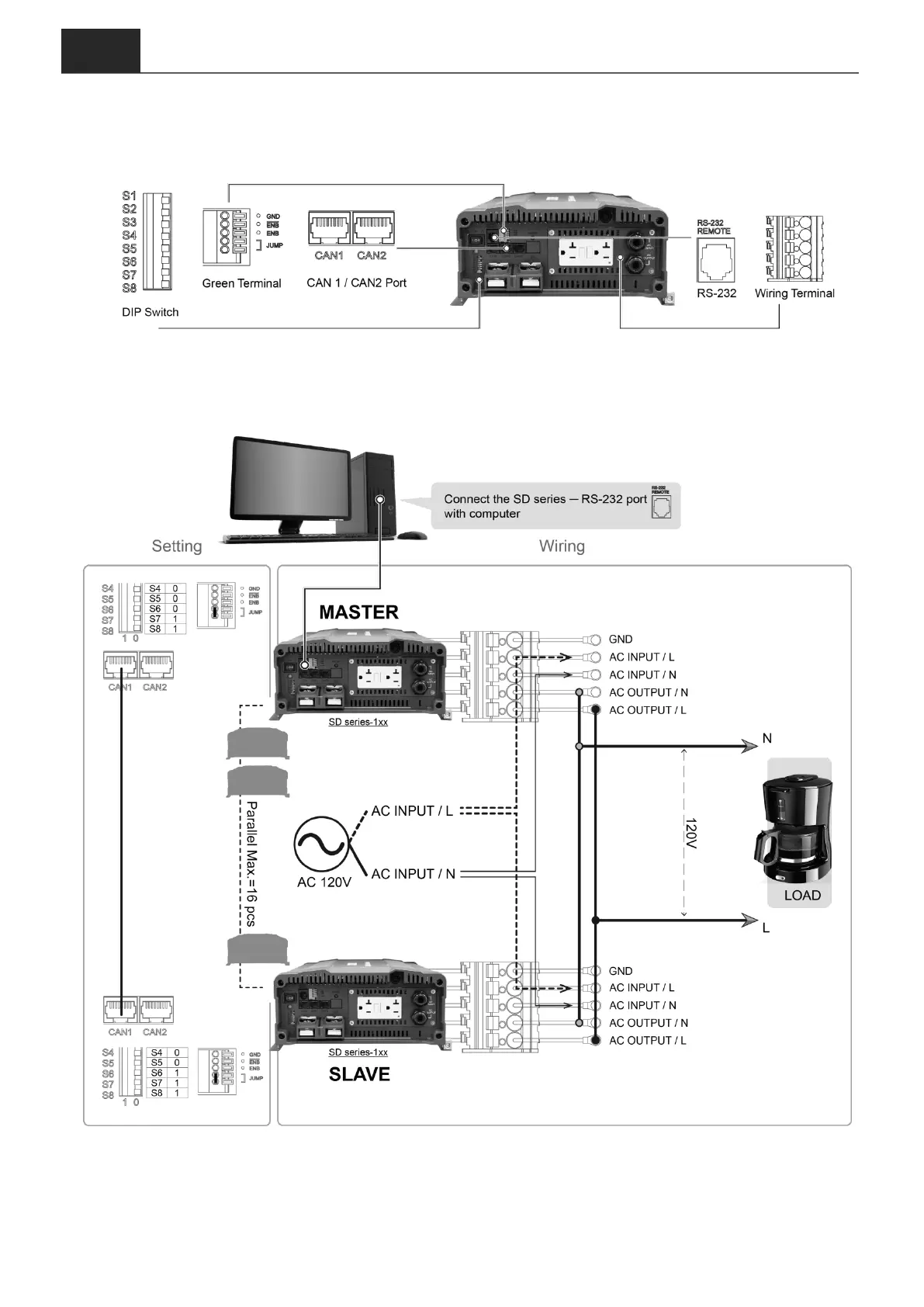

Figure 30. 1Φ2W parallel AC wiring diagram
