EZA ECB Series - AC WIRING DIAGRAMS - PHASE CONFIGURATIONS; 1Ø3 W Parallel AC Wiring Diagram

33

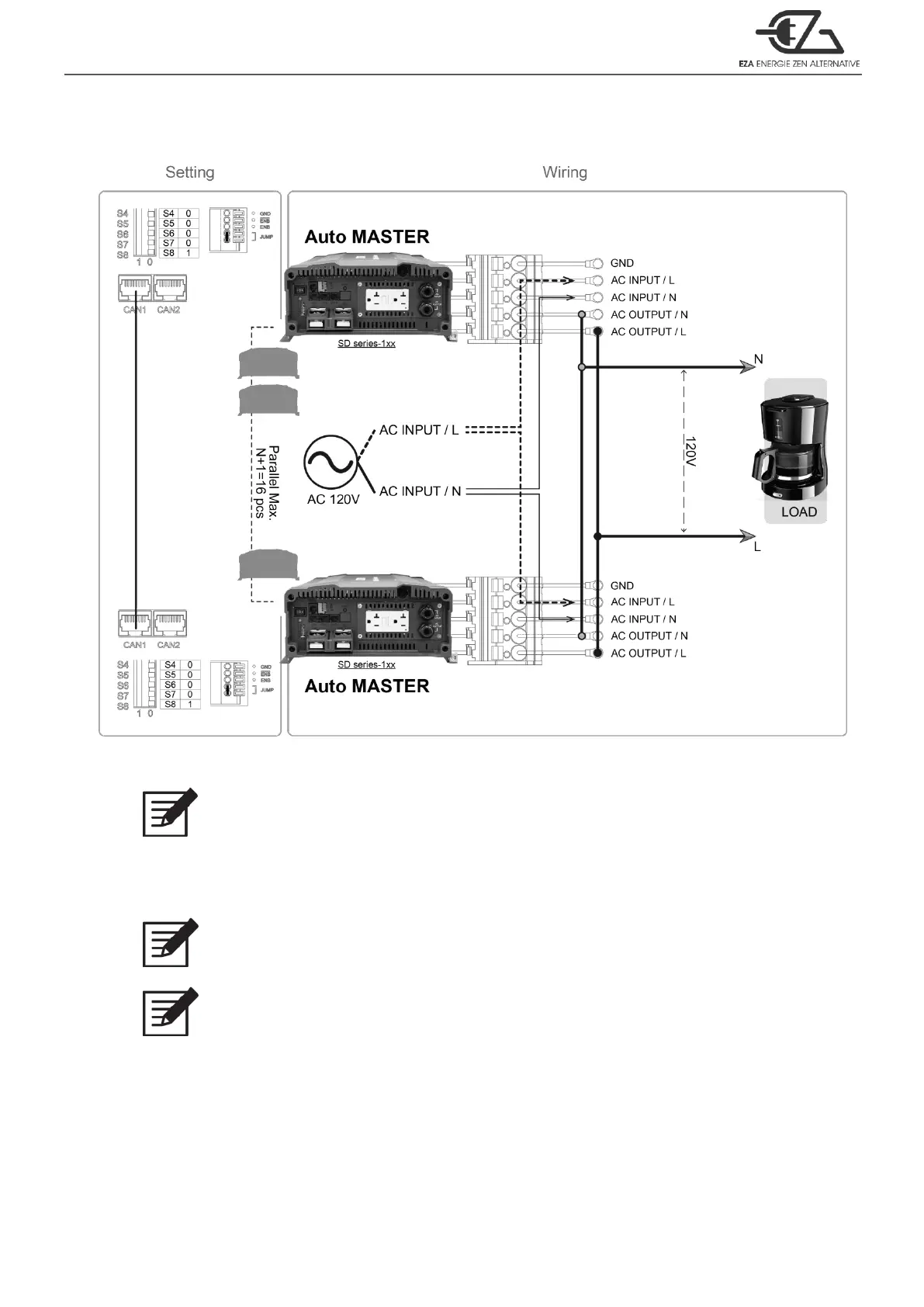

【1Φ2W Auto Master ─ Wiring Diagram】
Figure 31. 1Φ2W parallel AC wiring diagram ─ auto master
Note
Auto master can be operated under 1Φ2W mode.
Under 1Φ2W auto master mode, please set up the inverter by Ethernet or
Remote control CR-10.
Note
1Φ2W system parallel Max. N+1=16
Note
If you parallel N units, the first (unit 1) and the last unit (unit N) must set
parallel jumper in ON position.
