Type
1Φ2W
1Φ3W
3Φ4W
Waveform
Battery
Set up
Warning
Transfer Switch STS
module：Single < 4ms; N+1
& 1P3W & 3P4W < 6ms
Do not support N+1
operation, maximum of two
ECB inverters, THD < 4%
Do not support N+1
operation, maximum of three
ECB inverters, THD < 4%
DIP switch (S7) must be set to
“1” 
DIP
Switch
Setting
Refer to 5-2-1. / 5-2-2.
Refer to 5-2-3.
Refer to 5-2-4.
Wiring
Diagram
Refer to Figure 30. / Figure 31.
Refer to Figure 32.
Refer to Figure 33.

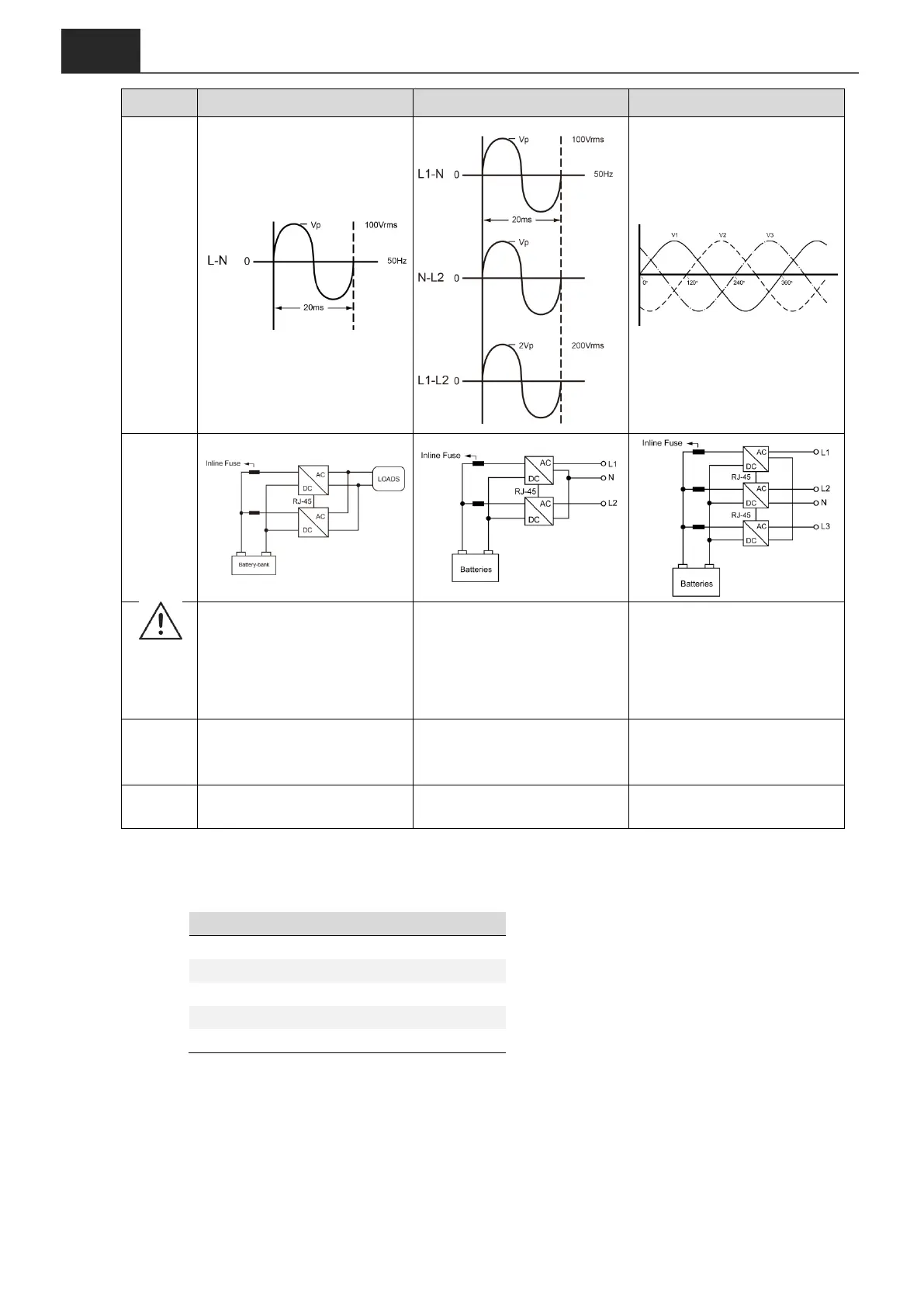

Table 20. Parallel industry applications
5-2-1. 1Φ2W Switch Table
Master
Slave 0°
S4
0
0
S5
0
0
S6
0
1
S7
1
1
S8
1
1
Table 21. 1Φ2W switch table
