TRT800H / P/N 800ATC-H-(2xx)-(2xx)
Operation and Installation
24
Document-No: 03.2124.010.71e / Revision: 2.10

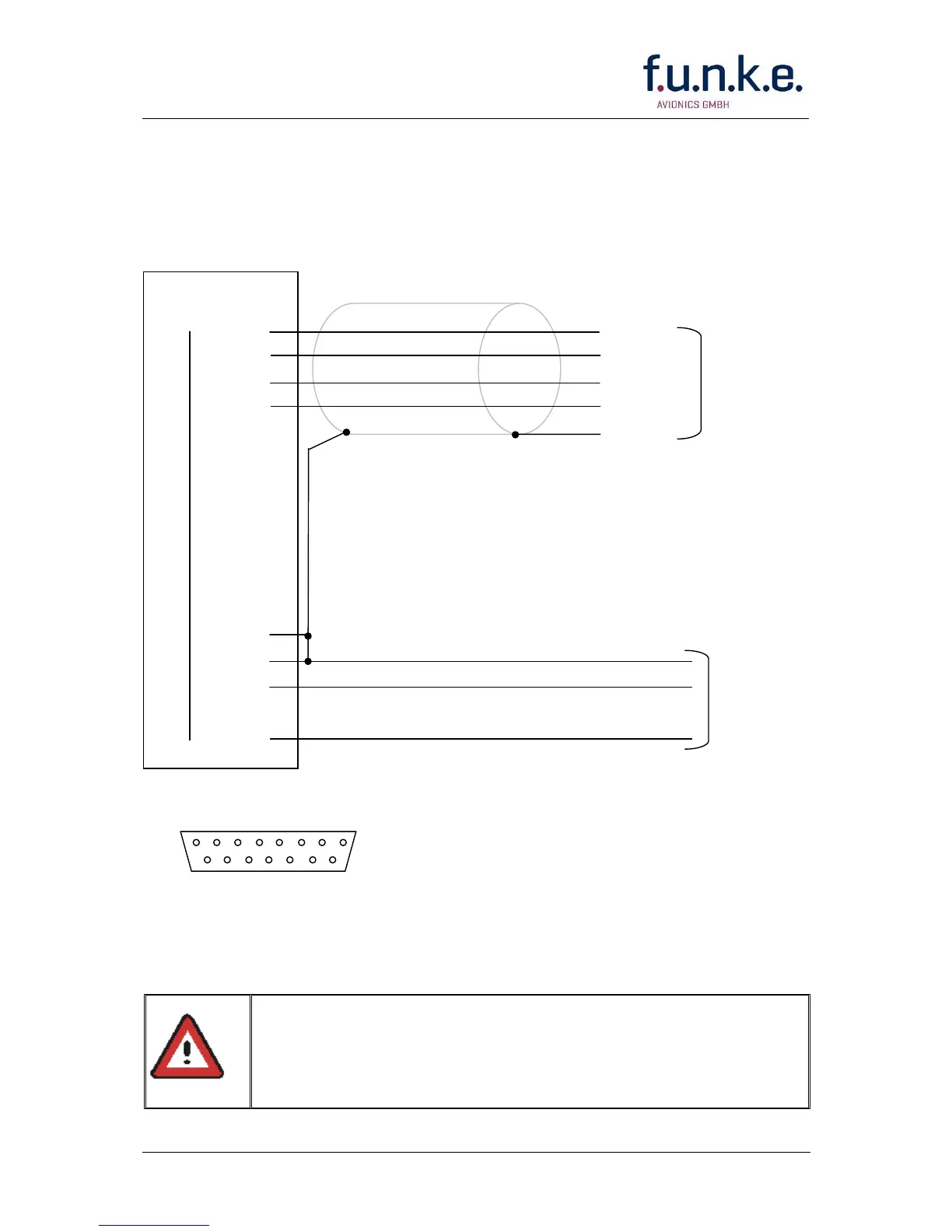

3.7.3.3 Cable plan TRT800EMSS (newer version without interface remote)
from S/N 91032115
The External – Memory – Address - Adapter TRT800EMxx
contains electronic parts and must not be opened. Opening
or modifying the connector leads to the loss of airworthiness
certification!
DSUB 15pol
TRT800H/TRT800A
*
< PIN-5 >
< PIN-12>
< PIN-15>
< PIN-13>
< PIN-1 >
< PIN-9 >
< PIN-8 >
< PIN-14>
TXD
RXD
FLY_GND
SUPP_I/O
GND
open
cable
ends
white
brown
yellow
green
shield
blue
red
brown
GND
+UB
AUTO-ON
(2)(3)
open
cable
ends
2
New TRT800H interface starting from HW 6.0
3
port / function not available at TRT800A
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
D-SUB Connector female
(solder side)
