TRT800H / P/N 800ATC-H-(2xx)-(2xx)

Operation and Installation

Document-No: 03.2124.010.71e / Revision: 2.10

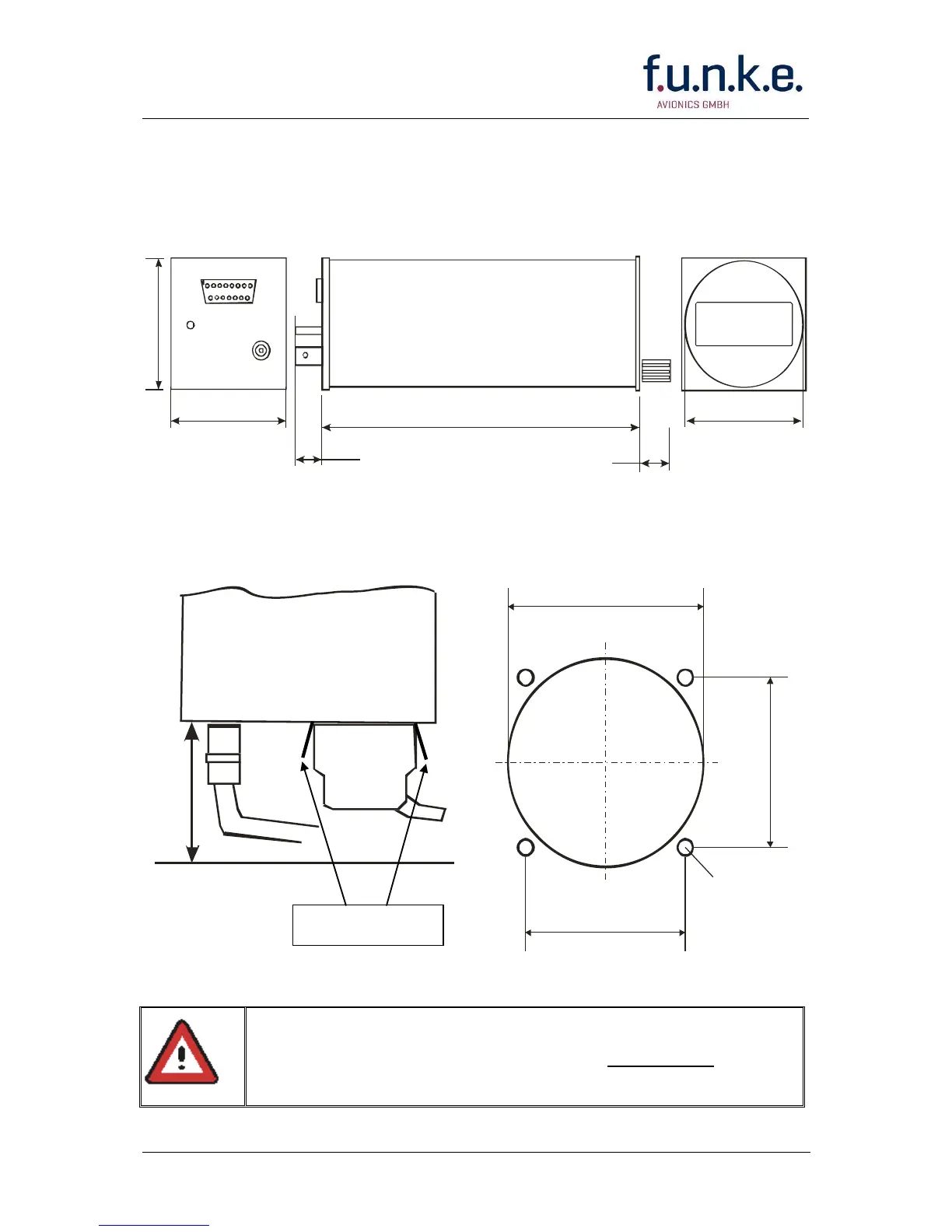

3.12 Drawings

3.12.1 Dimensions

20mm

15 mm

170 mm

TRT800

TRT800H

65 mm

Ø 57 mm

Static Air

Antenna

Power/RS232

3.12.2 Mounting Advices

Connections Area

 80 mm

Panel Cut-out

47,0 mm

57,5 mm

4 x Ø 4 mm

Connector (plug) has to be clamped with both spring locks.

No screws may be turned in more than max. 15mm into the

device – even if no hard limit is noticeable

Fixing clips (spring)

left / right
