F.W. Bell 5280 User Manual

STANDARD AXIAL PROBE
Model Number: (5280): SAD18-1904
(5270): SAH17-1904
Flux Density Range: (5280): 0 to ±30 kG (0 to 3 T)
(5270): 0 to ±20 kG (0 to 2 T)
Corrected Linearity: (5280): ±0.5% to ±30kG
(5270): ±1.0% to ±20kG
Frequency Bandwidth: (5280): 0 to 25 kHz
(5270): 0 to 10 kHz
Offset change with Temperature: ±300 mG / ºC (typical)
Accuracy change with Temperature: -0.05% / ºC (typical)
Operating Temperature Range: 0 to +75ºC (+32 to +167°F)
Storage Temperature Range: -25 to +75ºC (-13 to +167°F)
5280 gaussmeter probes
SAD18-1904 4" Axial Probe
SAD18-1902 2" Axial Probe
5270 gaussmeter probes
SAH17-1904 4" Axial Probe
SAH17-1902 2" Axial Probe
2-5

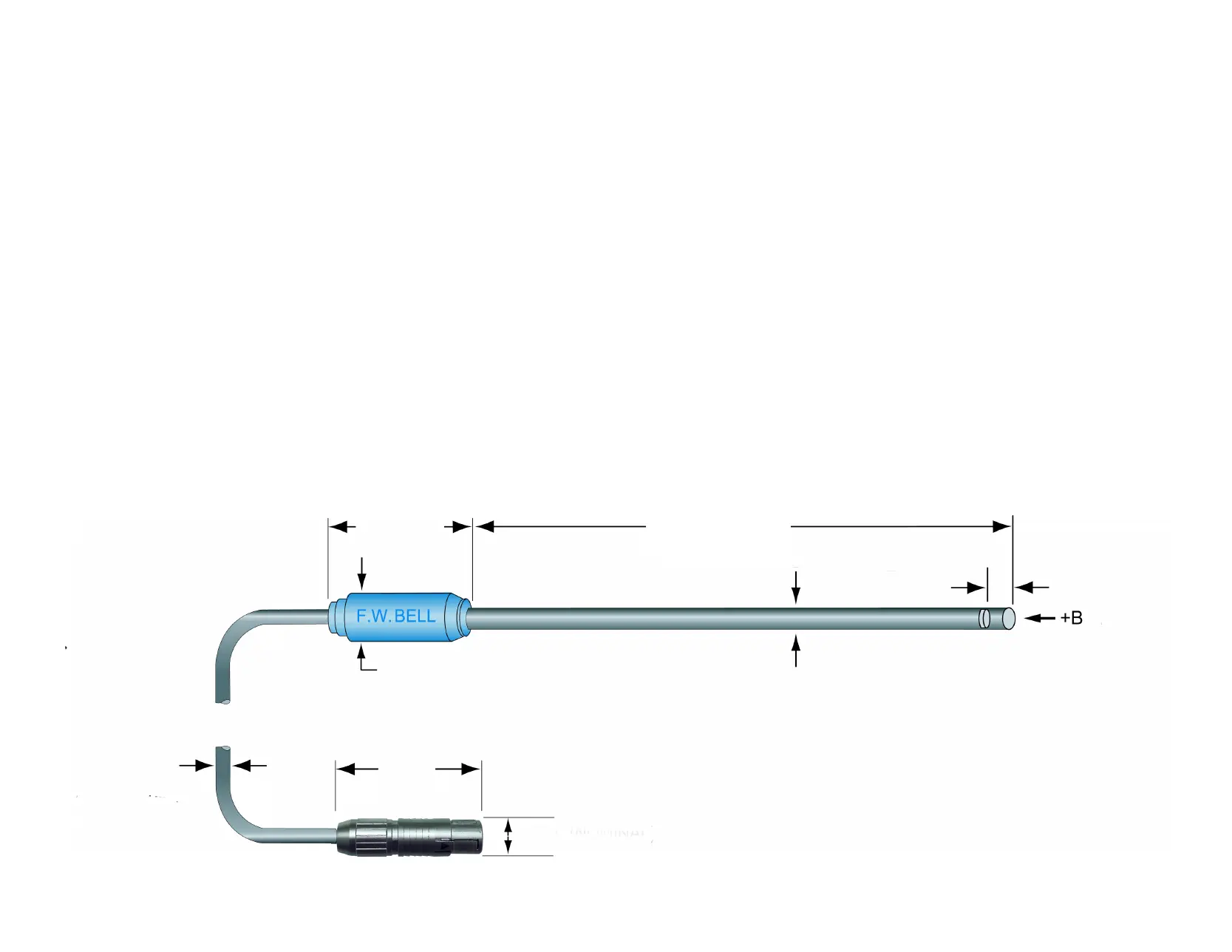

Figure 2-2
Standard Axial Probe
ACTIVE AREA
DIAMETER
0.4 mm (0.015")
NOMINAL
SENSOR LOCATION
0.25 mm (0.010")
NOMINAL
STEM MATERIAL
RIGID PHENOLIC
DIAMETER
(0.187" ±0.006")
NOMINAL
CABLE
LENGTH
1.524 m (5')
DIAMETER
4.3 ±0.3 mm
(0.170" ±0.010")
101.6 ±1.6 mm
(4.000" ±0.063")
53.3 ±6.3 mm
(2.10" ±0.25")
.492" NOMINAL
.350” ±.010
1.831" NOMINAL

F.W. Bell 5280 Specifications

General

Brand	F.W. Bell
Model	5280
Category	Measuring Instruments
Language	English
