F.W. Bell 5280 User Manual

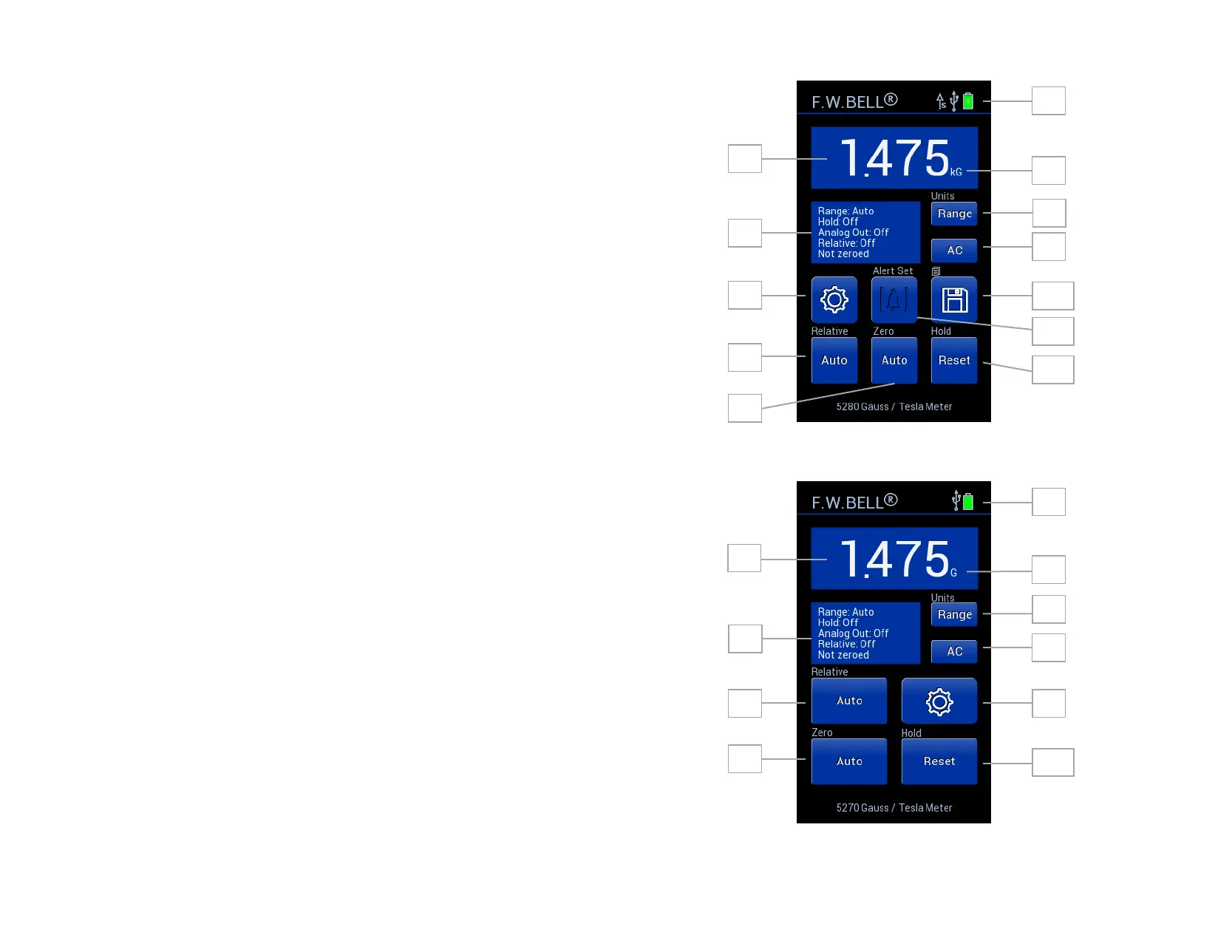

Figure 3-7
5280 Home Screen
Figure 3-8
5270 Home Screen
Home Screen
1. Measurement
2. Information Box
Status on current settings
Messages
3. Settings pages
4. Relative (cancel known fields)
Auto/Manual displayed
‘short press’ start relative operation
‘long press’ to relative setting page
5. Zero (cancel ambient fields)
Auto/Manual displayed
‘short press’ start zero operation
‘long press’ to zero setting page
6. Probe/USB/Battery Status
7. Units/Range shown
8. Range ‘short press’
Low = 300 G
Med = 3 kG
High = 30 kG
Auto
Units ‘long press’
Gauss, tesla, amp/meter
9. AC or DC
10. Data Internal Storage
‘short press’ record to log
‘long press’ to view log
11. Alert Set
‘short press’ to enable
‘long press’ to view settings
12. Hold
‘short press’ to reset
‘long press’ to hold
Min, Max, Peak, or Off
6
1
2
3
4
5
7
8
9
10
11
12
1
2
4
5
6
7
9
3
12
8
3-7
