FAAC A140 AIR - Page 23

20
B
a
b
A
b
a
a
ENGLISH
fig. 35
fig. 36

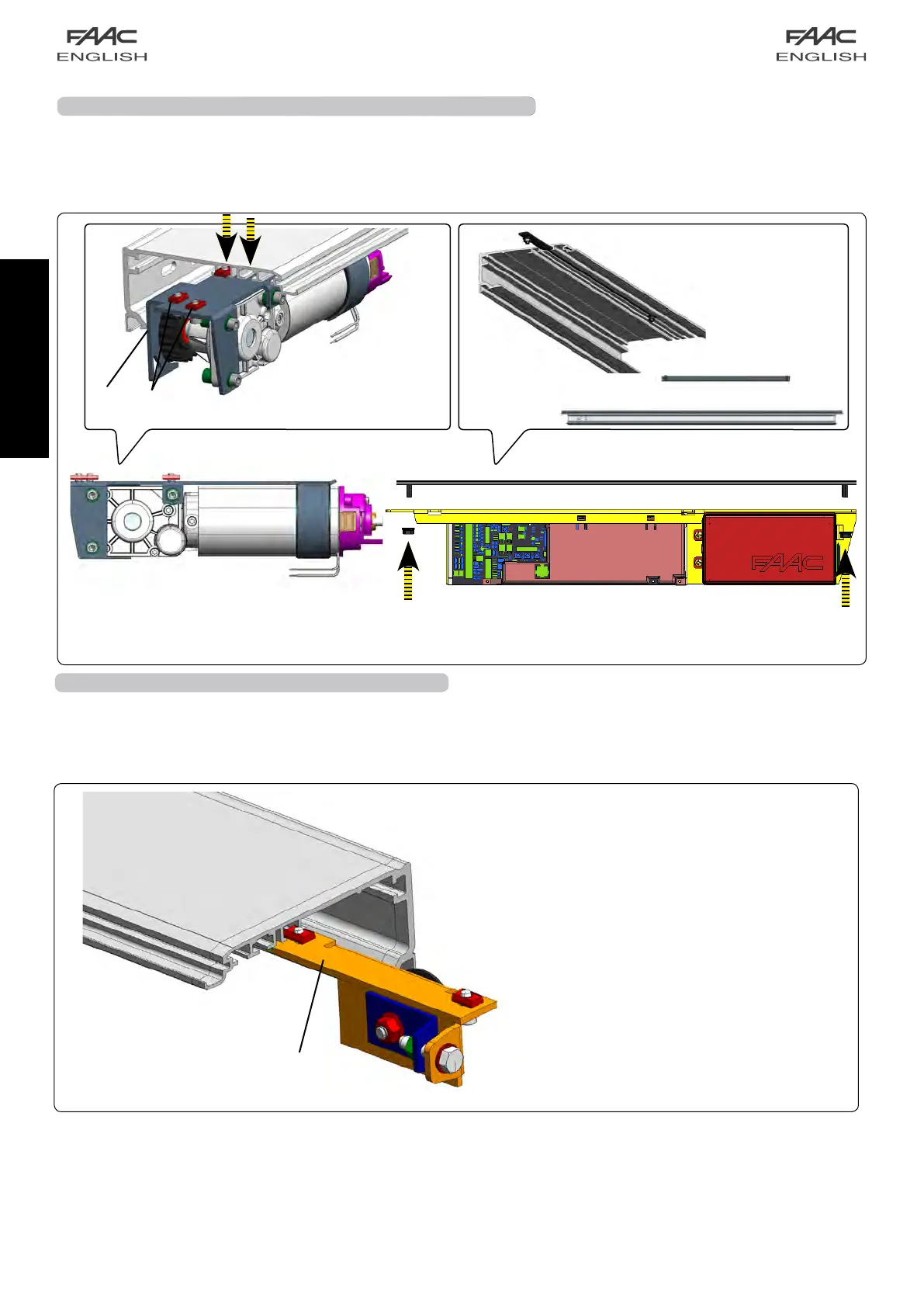

8A FITTING THE ELECTRONICS MODULE AND THE MOTOR UNIT
Theninserttheelectronicsmoduleandsecureitusingthetworodbolts.(fig.35Ba b
Insert3smallplatessidewaysoftheprofileandsecurethemotorwiththe3screwstothesupportprofile(fig.35A a ).
Onthemotorbracketthereisagaugewithabeltlift-prooffunction(fig.35A b )
9A FITTING THE TRASMISSION PULLEY UNIT
insertthetransmissionpulleyunitfig.36refa
