FAAC A140 AIR - Description of Terminals

FAAC A140 AIR
71 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
39
1
2
3
4
5
6
7
8
9
10
11
12
13
J7
I-DET
E-DET
KEY
EMERG1
EMERG2
-FAILSAFE
OUT1
+24V
+24V
GND
GND
P
P
ENGLISH

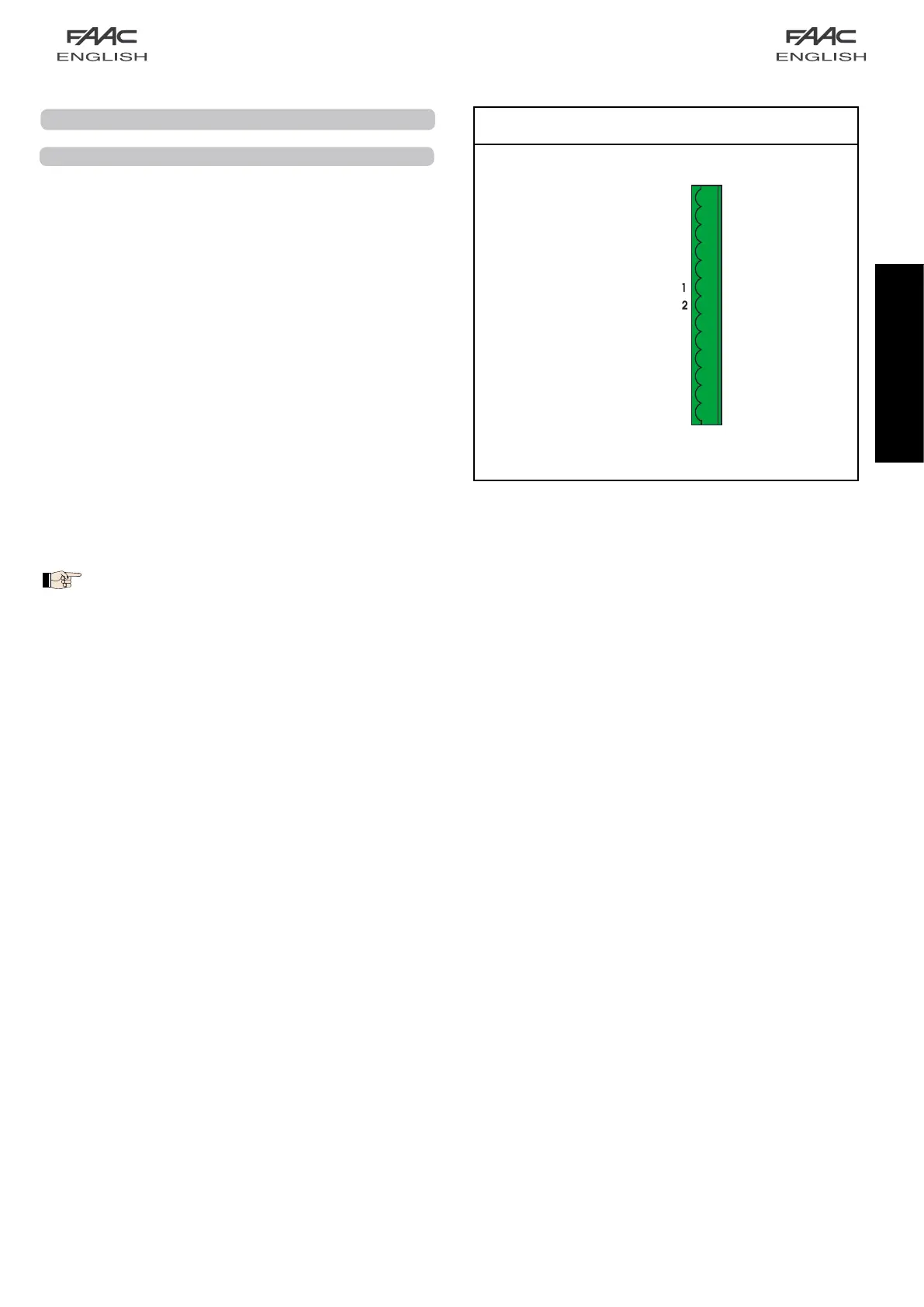

TERMINAL BOARD J7
DESCRIPTION OF TERMINALS
TERMINAL BOARD J7
1 I-DET (NO contact default)
Internal sensor input.
ByusingSD-KeeperwithDisplay(Accessory),youcanmodifythe
polarity of the contact to N.C.
2 E-DET (NO contact default)
External sensor input.
ByusingSD-KeeperwithDisplay(Accessory),youcanmodifythe
polarity of the contact to N.C.
3 KEY (NO contact default)
Key command:
activation causes the door to open, closing it after night pause
time.
ByusingSD-KeeperwithDisplay(Accessory),youcanmodifythe
polarity of the contact to N.C.
4 EMERG1 (NO contact default)
Emergency command 1:
in the standard setting, activation causes the door to stop (for as
long as it is maintained active, the door stays in stop condition).
ByusingSD-KeeperwithDisplay(Accessory),youcanprogram
the operation of this input in a different way (see programming
instructions).
the EMERG1 command has priority over EMERG2
5 EMERG2 (NO contact default)
Emergency command 2:
in the standard setting, activation causes the door to open (for
as long as it is maintained active, the door stays open).
ByusingSD-KeeperwithDisplay(Accessory),youcanprogram
the operation of this input in a different way (see programming
instructions).
6 PROTECTION 1
Protection 1 input.
Use monitored safety devices that comply with EN16005
standard.
7 PROTECTION 2
Protection 2 input.
Use monitored safety devices that comply with EN16005
standard.
8 -FAIL-SAFE
Negative for powering monitoring sensors.
9 OUT 1 (“gong” default)
Output (negative) of open-collector (max 100mA).
In the standard setting, this output is active when the
photocells are shadowed for 1 sec. at intervals of 0.5 sec.until
disengagement.
ByusingSD-KeeperwithDisplay(Accessory),youcanprogram
the operation of this output in a different way (see programming
instructions).
10-11 +24V=
+24V= for powering accessories
The maximum total load of the accessories connected to inputs
”+24V=” must not exceed 1 A.
12-13 GND
Negative for powering accessories and common contact.
