27
2 / INSTALLING YOUR APPLIANCE EN
• Recycling
— Calculate the nal height for xing the
duct support U-bracket.
— Mark the two holes.
— Drill 8 mm diameter holes and secure
the duct support bracket, ensuring that it is
xed in the same axis as the hood.
— Fix the at bracket behind the lower
duct.
— Fit the sleeve adapter on the de ector
(Pic. 8).
— Connect the extendable sleeve to the
de ector.
— Fit the two parts of the duct on to the
hood (Pic. 5).
— Fit the de ector (Pic. 8) into the upper
duct by the ventilation inlets (Pic. 6)
— Make the electrical connection to the
hood using the mains supply cable.
— Lift the upper duct up to the ceiling and
x it to the bracket using the two screws.

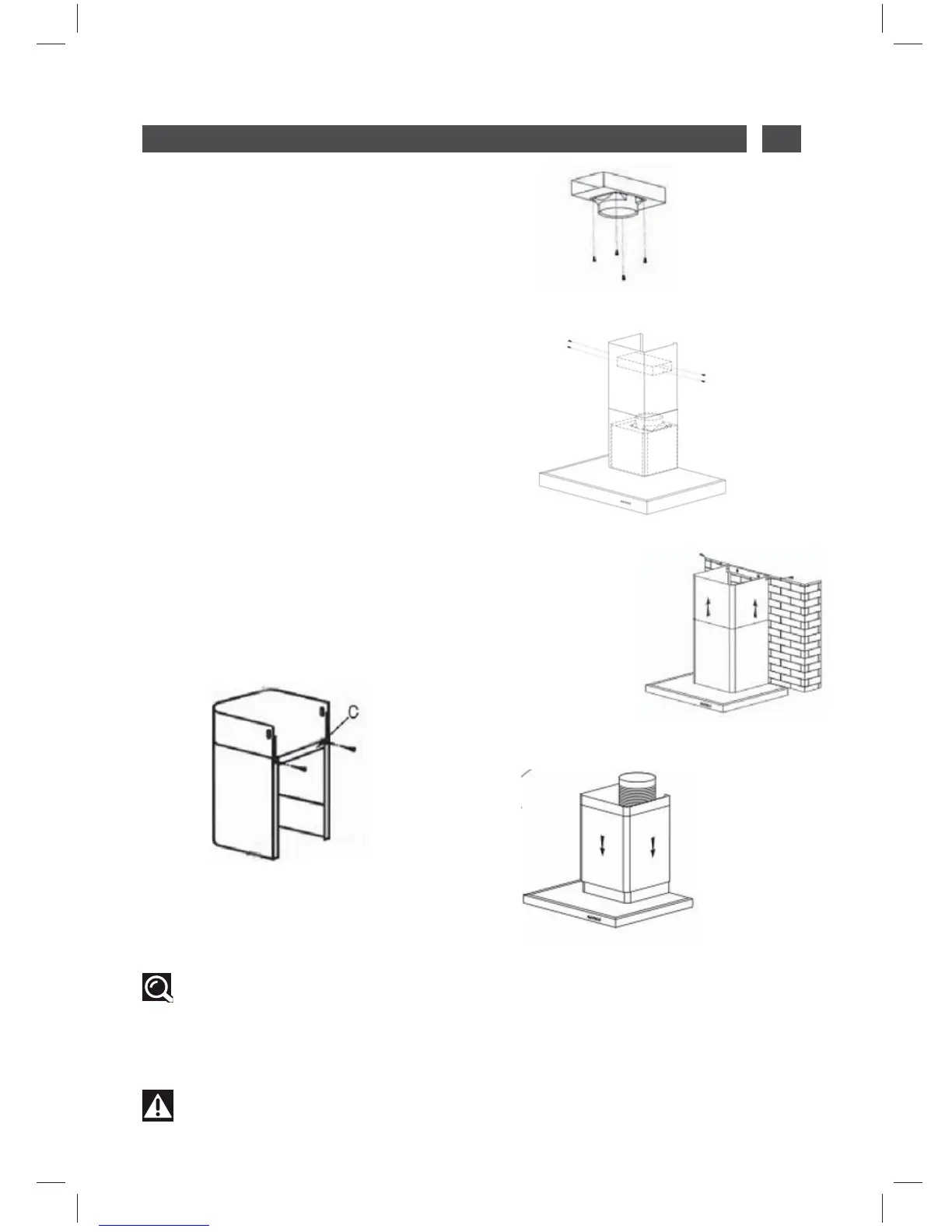

Pict 8
Pict 6
Pict 5
Pict 4
Warning
Do not use tools to remove the safety fi lm of hood.
Tip
For optimal use of your appliance, we recommend that you connect the hood to a 150
mm-diameter fl ue (not delivered with the appliance). Minimise the number of angles and
bends and the lengths of the fl ue. In the event that the hood will be operated using outdoor
evacuation, you should ensure a suffi cient infl ow of fresh air to avoid a pressure defi ciency
in the room.
