Fagor DDS User Manual

Drive modules
188
3.
DRIVE MODULES
Compact drives
184
DDS
HARDWARE
Ref.1310
CARDS 8DI-16DO and 16DI-8DO
These cards may be located in slot SL1 and/or SL2.
 8DI-16DO offers to the user 8 digital inputs and 16 outputs
 16DI-8DO offers to the user 16 digital inputs and 8 outputs
X8-DIG.INs, X11-DIG.INs, X12-DIG.INs, digital inputs
They offer 8 fully programmable digital inputs.
The digital inputs are optocoupled and referred to a common point (pin 1)
and they admit digital signals at 24 V DC.
Each input is associated with a PLC resource.
Characteristics of the
digital inputs
(at 24 V)
X9-DIG. OUTs, X10-DIG. OUTs, X13-DIG. OUT, digital outputs
They offer 8 fully programmable digital outputs. These outputs are opto-
coupled and of the contact type referred to a common point (pin 1) . Each
output is associated with a PLC resource.

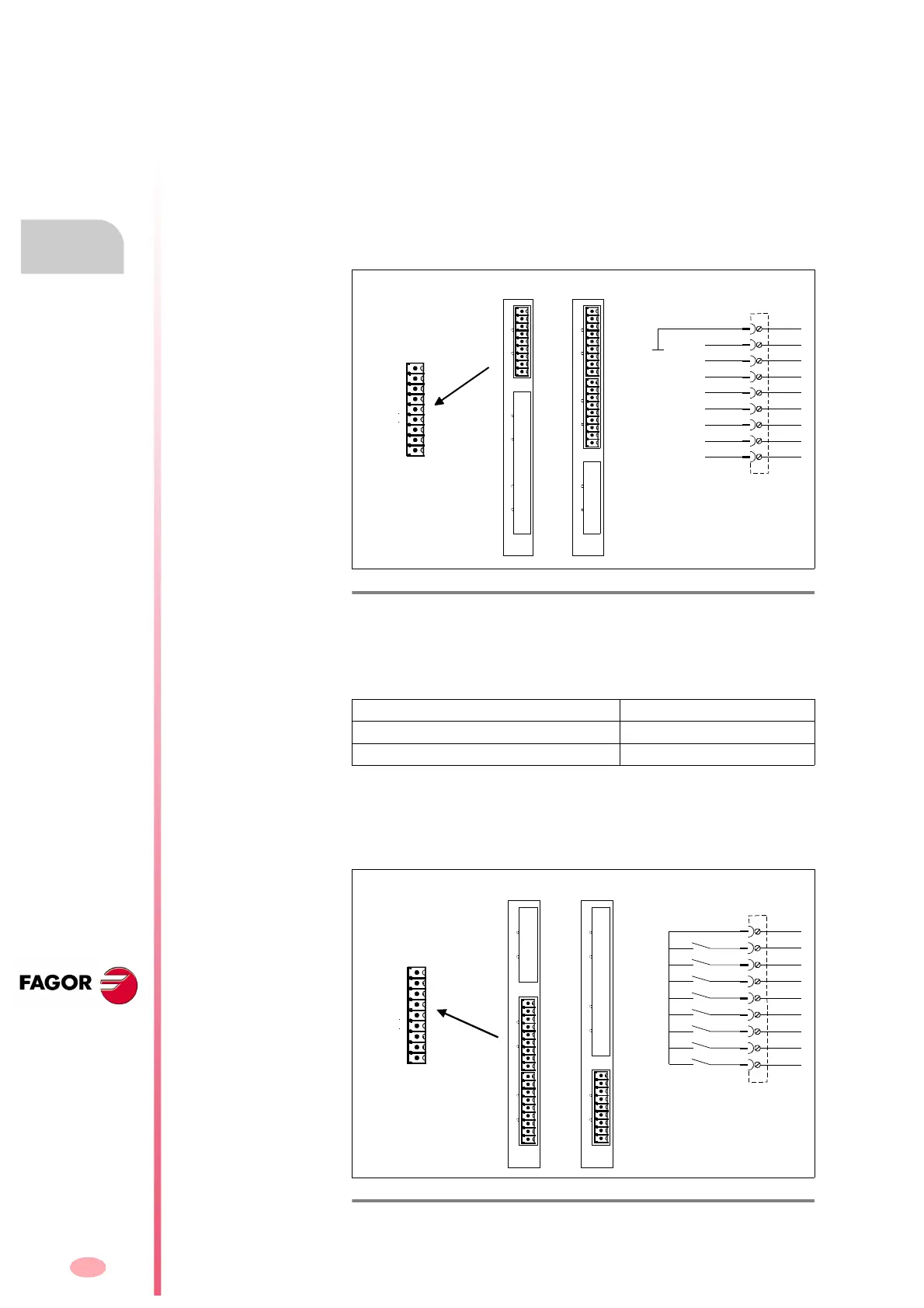

F. H3/138
Cards 8DI-16DO and 16DI-8DO.
X8-DIG. INs, X11-DIG. INs and X12-DIG.INs. Digital inputs.
1
9
7
6
3
5
4
8
2
1
9
Pin
(Phoenix,
3.5 mm)
X8-DIG. INs X11-DIG. INs X12-DIG. INs
(8DI-16DO Board)
X8-DIG. INsX9-DIG. OUTsX10-DIG. OUTs
1
1
1
8DI-16D0
16DI-8D0
1
1
1
X11-DIG. INsX12-DIG. INsX13-DIG. OUTs
(16DI-8DO Board)
Rated voltage (maximum) 24 V DC (40 V DC)
ON/OFF voltage 12 V DC / 6 V DC
Typical consumption (max) 5 mA (7 mA)
F. H3/139
Cards 8DI-16DO and 16DI-8DO.
X9-DIG.OUTs, X10-DIG.OUTs and X13-DIG.OUTs. Digital outputs.
1
9
7
6
3
5
4
8
2
1
9
Pin
(Phoenix,
3.5 mm)
X9-DIG. OUTs X10-DIG. OUTs X13-DIG. OUTs
(8DI-16DO Board)
X8-DIG. INsX9-DIG. OUTsX10-DIG. OUTs
1
1
1
8DI-16D0
16DI-8D0
1
1
1
X11-DIG. INsX12-DIG. INsX13-DIG. OUTs
(16DI-8DO Board)
