Cables
266
7.
CABLES
Mains connection cable. Power supply - mains connection
248
DDS
HARDWARE
Ref.1310

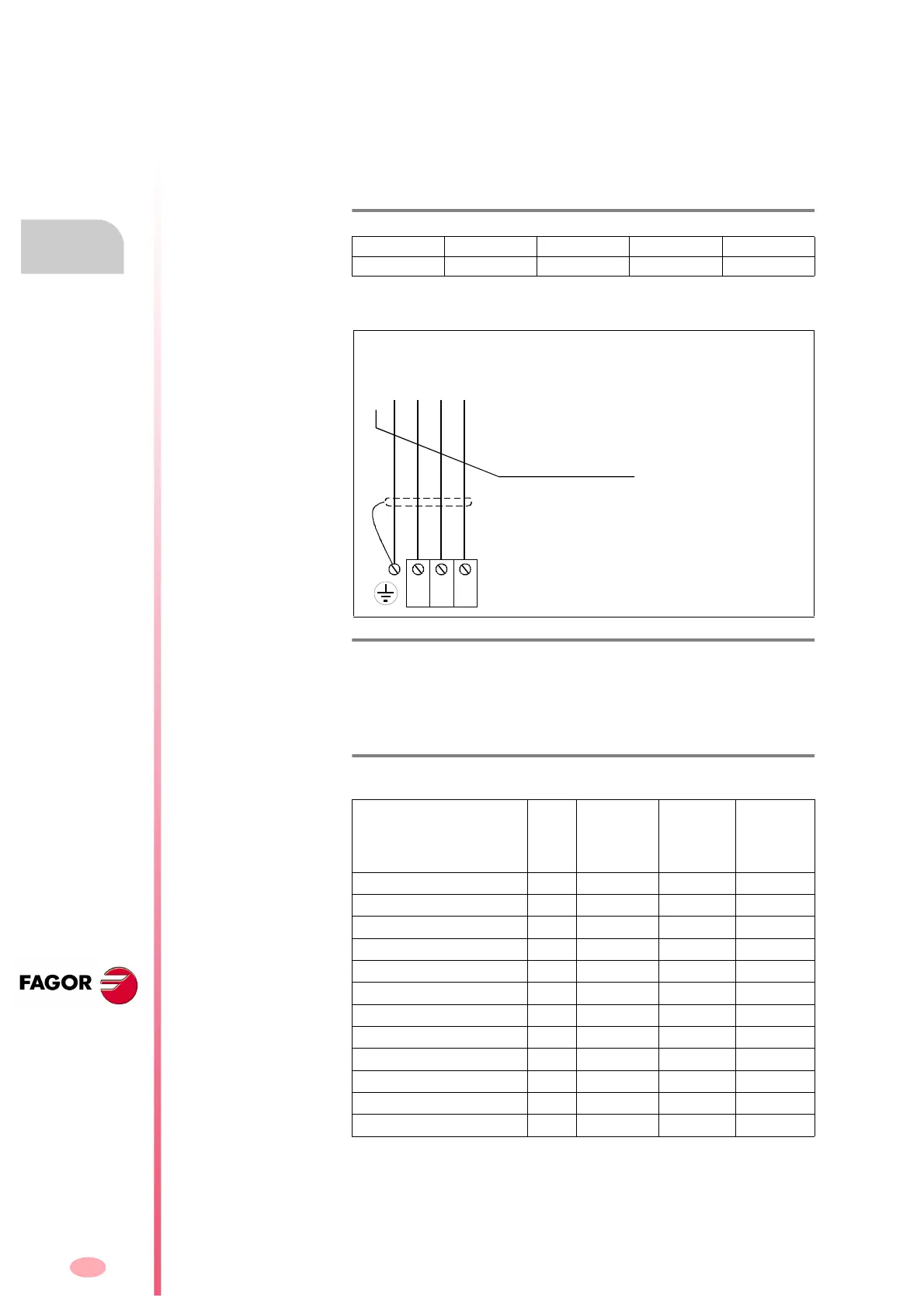

7.1 Mains connection cable. Power supply - mains connection
Refer to table T. H5/14 of chapter 5 to determine the cable needed to con-
nect the power supply to mains. Note that compact drives have it integrat-
ed into them.
The table
T. H 7 / 2 shows the mains connection cable supplied by FAGOR
and their sales reference is MPC-
x.
The 4 wires of the mains cable must be connected to the power supply or
to the compact drive (integrated power supply) as shown in figure
F. H 7/ 1 .
Power leads. Mechanical characteristics
The following table shows the mechanical characteristics of the terminals
(L1, L2, L3, PE) at the power supplies and at the compact drives.
T. H7/2 Range of mains connection cables.
MPC-4x1.5 MPC-4x4 MPC-4x10 MPC-4x25 MPC-4x50
MPC-4x2.5 MPC-4x6 MPC-4x16 MPC-4x35 MPC-4x70
F. H7/1
MPC cable connection from the power supply or compact drive to mains.
T. H7/3 Mechanical characteristics of the power connectors for the power
supplies and compact drives.
Module Gap
(mm)
Max.
tightenin
torque
(N·m)
Max. hole
section
(mm²)
Min. cable
section
(mm²)
PS-65A 18.8 7 70 50
PS-25B4 10.1 1.5 16 10
XPS-25 12.1 2 16 10
XPS-65 18.8 7 70 50
RPS-80 25.0 20 95 70
RPS-75 25.0 20 95 70
RPS-45 18.8 7 70 35
RPS-20 10.6 1.5 16 10
ACD/SCD/CMC 1.08/1.15 7.62 0.5 4 2.5
ACD/SCD/CMC 1.25 7.62 0.7 6 4
ACD/SCD/CMC 2.35/2.50 10.16 1.2 6 6
SCD 2.75 10.16 1.5 16 10
MPC- 4x...( mm
2
)
Ready Made Cable
L3L2
From Mains
RTS
N
RST phases may
be connected in
any sequence.
L1
To Next Page
