POWER LINE CONNECTION
Mains filter
240
DDS
HARDWARE
Ref.1310
6.5 Mains filter
In order for the FAGOR DDS servo drive system to meet the European
Directive on Electromagnetic Compatibility 2004/108/CE, a mains filter
must be installed against electromagnetic disturbances.
To install it, it must be properly connected to ground and the wires con-
necting to the power supply module must be as short as possible.
They may be installed either horizontally or vertically. The three-phase line
is connected to the terminals on top of the module and the load (power
supply or compact drive) to those at the bottom. See the label on the front
panel showing these terminals in full detail. See figure
F. H6/3.
Table T. H 6/ 5 indicates the proper filter to be installed depending on the
power supply or compact drive being used in the DDS system.
For further information on mains filters, see section
4.1 Mains filters of
this manual.
INFORMATION. This does not guarantee the compliance with such CE
Directive on Electromagnetic Compatibility
regarding the machine be-
cause it may have other devices that could cause disturbances.
i

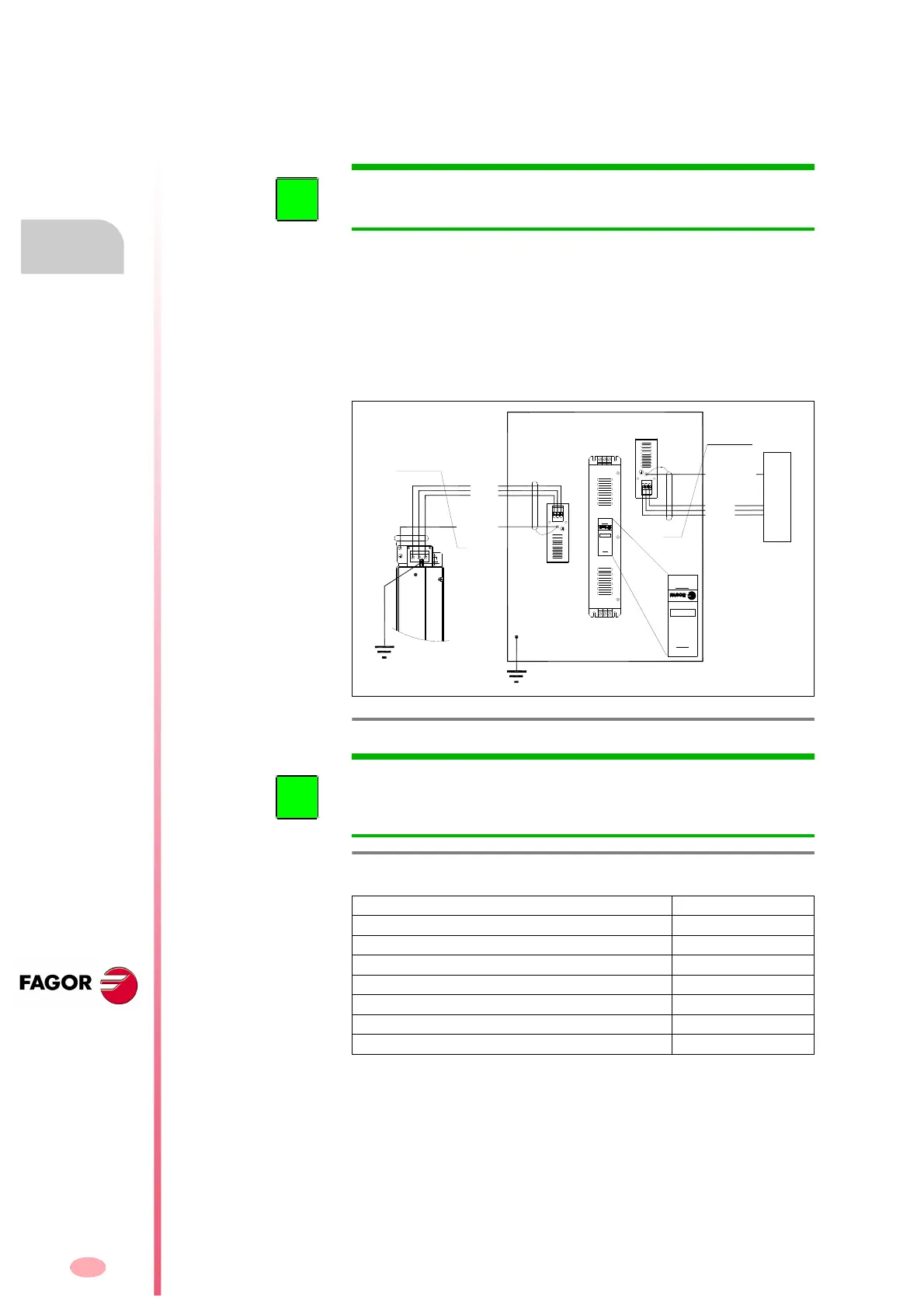

F. H6/3
Installation of the MAINS FILTER A.
MAINS FILTER XXA
(bottom view)
GROUND
MPC-4x...
MAINS FILTER XXA
(top view)
MPC-4x...
L1
L2 L3
L3 ' L2 ' L1 '
LO AD
MAIN FILTER 42A
Type:
3 Phase RFI Filter
MAINS
L3 L2 L1
L1'
L2'
L3'
L3
L2
L1
GROUND
MAINS
L1 L2 L3
L1' L2' L3'
L3 L2 L1
MAINS
3 Phase RFI Filter
Type :
MA IN S FILTER 4 2A
LO A D
L3 ' L2 ' L1 '
POWER SUPPLY
INFORMATION. The “MAINS FILTER A” may be installed either be-
fore or after the power contactor
- KM1. See figure F. H6/ 1 . It is usually
installed before the power contactor
- KM1, but it does not have to be
necessarily installed in this position.
i
T. H6/5 Mains filter selection according to the power supply or compact
drive installed.
Module MAINS FILTER
XPS-25, RPS-20 42A
PS-25B4 42A
PS-65A, XPS-65, RPS-45, RPS-75 130A
RPS-80 180A
ACD/SCD/CMC 1.08/1.15/1.25 42A
ACD/SCD/CMC 2.35/2.50 42A
SCD 2.75 42A
