DDS
HARDWARE
Ref.1310
DIMENSIONS
When designing and building the electrical cabinet, it is crucial to consider the necessary space to in-
clude the modules that will make up the DDS system, auxiliary modules and other elements such as
cables and connectors.
11.1 Main modules
F. H11 /1

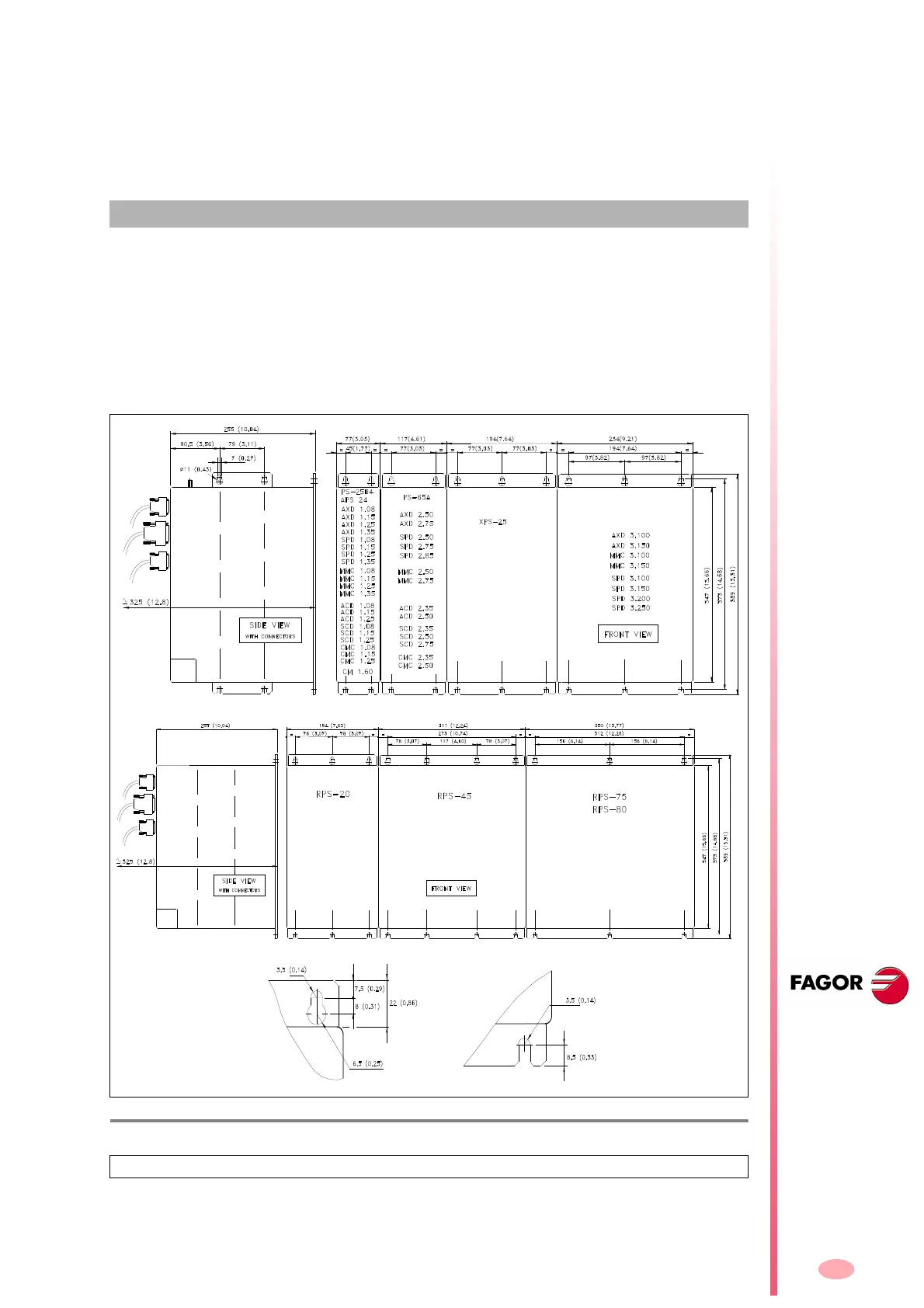

Dimensions of the main modules.
NOTE. Remember that the upper power connectors may need a height of up to 45 mm.
