12.1 References of synchronous servo motors

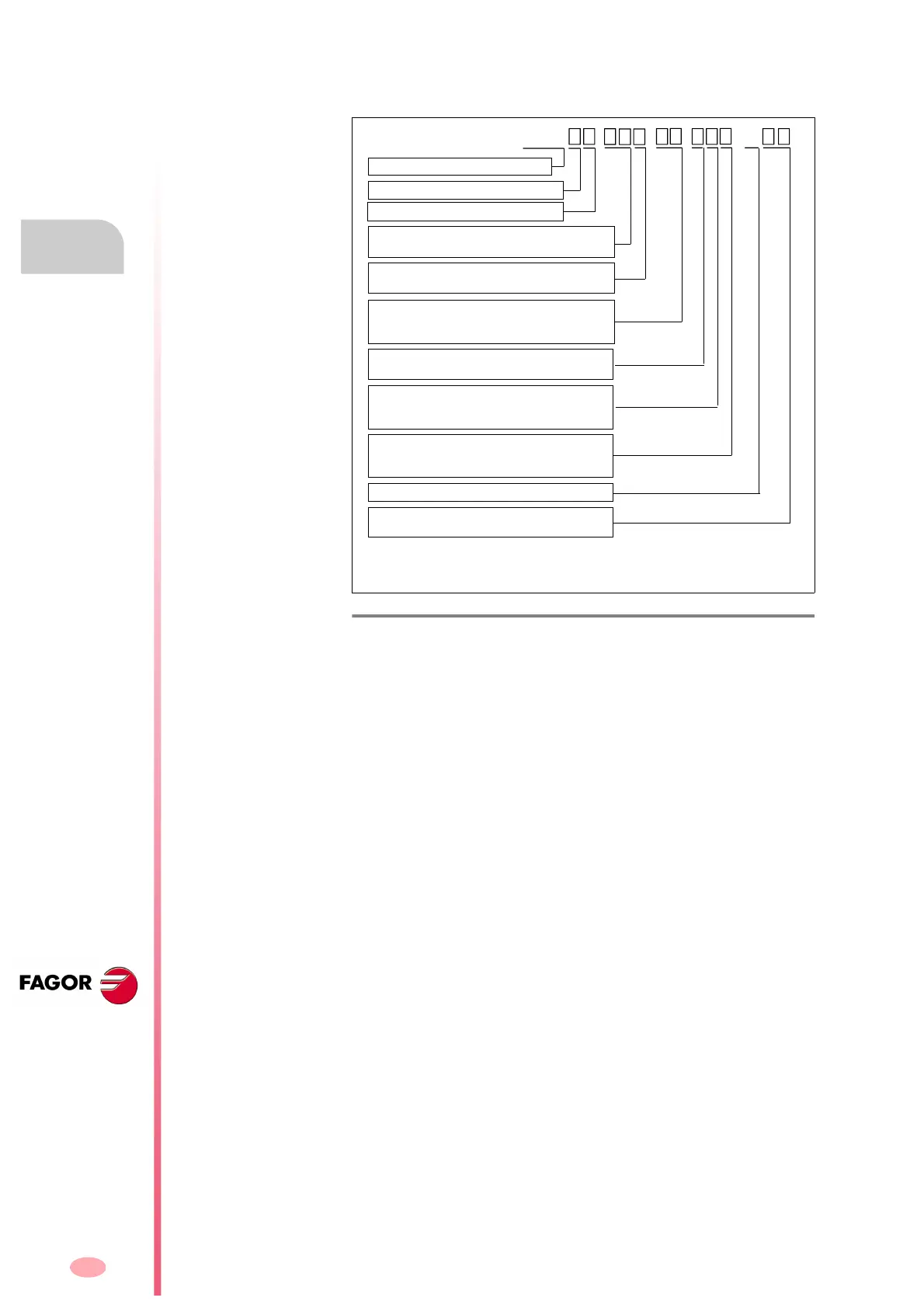

Sales reference of the synchronous servo motors, FXM.
F. H12/1
Sales reference of the synchronous servo motors, FXM.
0
Without fan
12 12
00 rev/min
30 30
00 rev/min
20 20
00 rev/min
40 40
00 rev/min
FXM . . . - X
MOTOR SERIES
SIZE 1, 3, 5, 7
LENGTH 1, 2, 3, 4, 5, 6, 7, 8
RATED
SPEED
WINDING
A
400 V AC
FEEDBACK
TYPE
FLANGE &
SHAFT
0
With standard keyway
BRAKE
OPTION
0
Without brake
SPECIAL CONFIGURATION X
F
220 V AC
1
With fan
1
With standard brake (24 V DC)
1
Without keyway
SPECIFICATION OF THE
SPECIAL CONFIGURATION 01 ZZ

E1
Sinusoidal SinCoder
A1
Absolute multi-turn SinCos
I0
Incremental TTL
E1
SinCoder Stegmann
TM
SNS 50 (with taper shaft), 1024 ppt
I0
Tamagawa
TM
Encoder OIH48 TS5214N510, 2500 ppt
A1
SinCos Stegmann
TM
SRM 50 (multi-turn), 1024 ppt
FAN
OPTION
(Neodine type H with double torque)
(only in sizes 5 and 7)
