12.10 Module identification
Each electronic module is identified by its characteristics plate. It indi-
cates the model and its main technical characteristics.
The versions plate shows the hardware and software versions of the
equipment. For example, the IGBT board mounted in this module has ver-
sion 01A (IGB); the software version is 0306 (SOF).
These two plates fully identify the module and must be referred to when
repairing or replacing these units. They make it easier to solve compatibili-
ty conflicts between different versions.
The drive module is also labeled on its package:
WARNING. The user must make sure that the references indicated on
the packing list of the order match those supplied by each module on its
characteristics plate before making any connection to avoid any possible
shipping errors.
F. H12/22

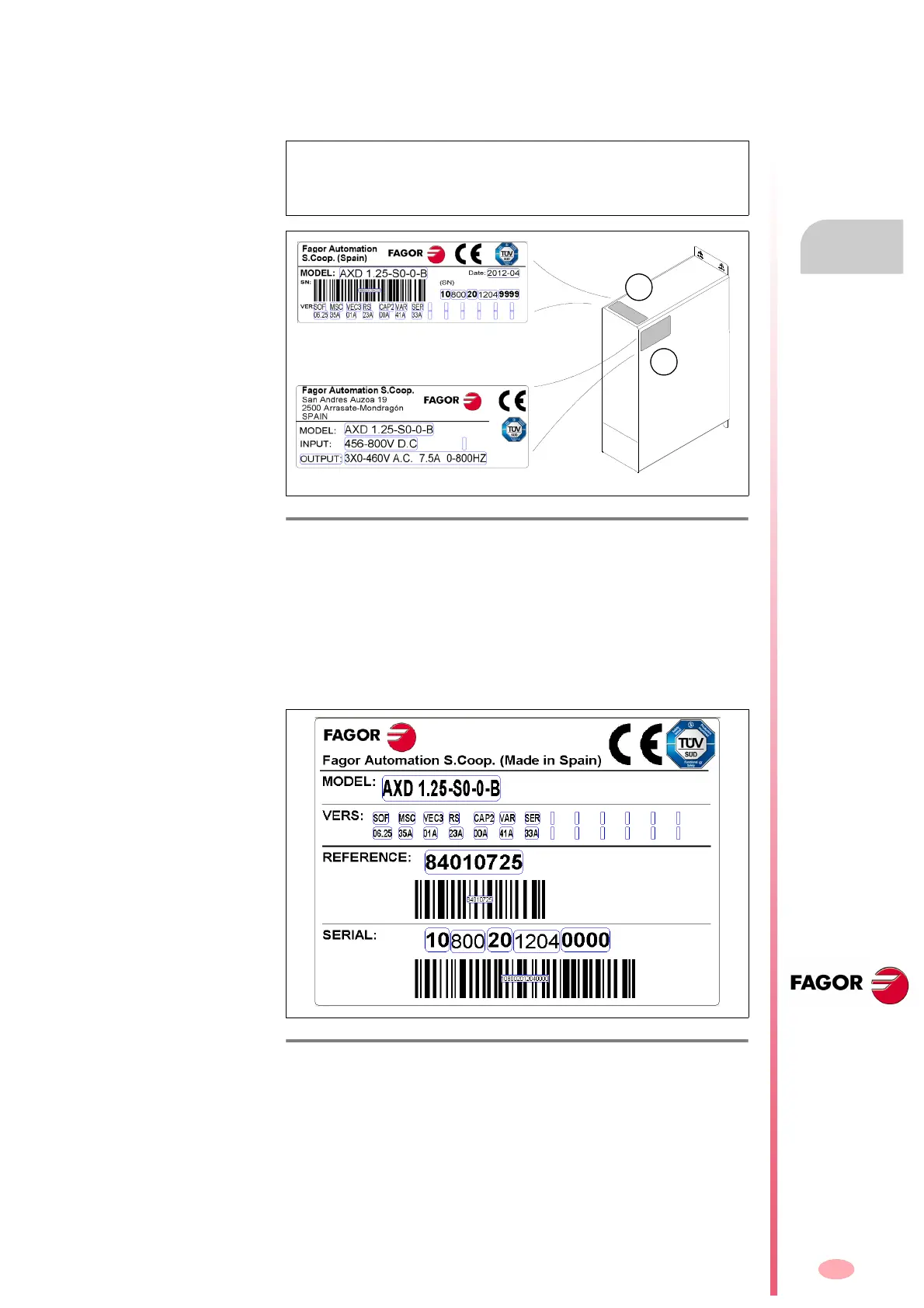

Module identification plates. A. Version label, B. Characteristics plate.
F. H12/23
Packaging label of the drive module.
