Power supplies
POWER SUPPLIES
Regenerative regulated power supplies
2.
85
DDS
HARDWARE
Ref.1310
Other connectors
X1 and X2 connectors
These connectors belong to the auxiliary power supply integrated into the
main RPS power supply. This auxiliary power supply is fed through connec-
tor X1.
This electrical power is received from the three-phase line to the power
supply connected to a point before the power connection operation (before
power contactor - KM1). It admits a voltage between 400 and 460 V AC.
The following table shows the values for gap, tightening torque, sections
of the screws and other data of the plug-in connector for X1.
At the same time, pin 1 of connector X2 outputs 24 V DC, 8 A to feed the
control circuits of the module itself and of the modular drives connected to
the bus.

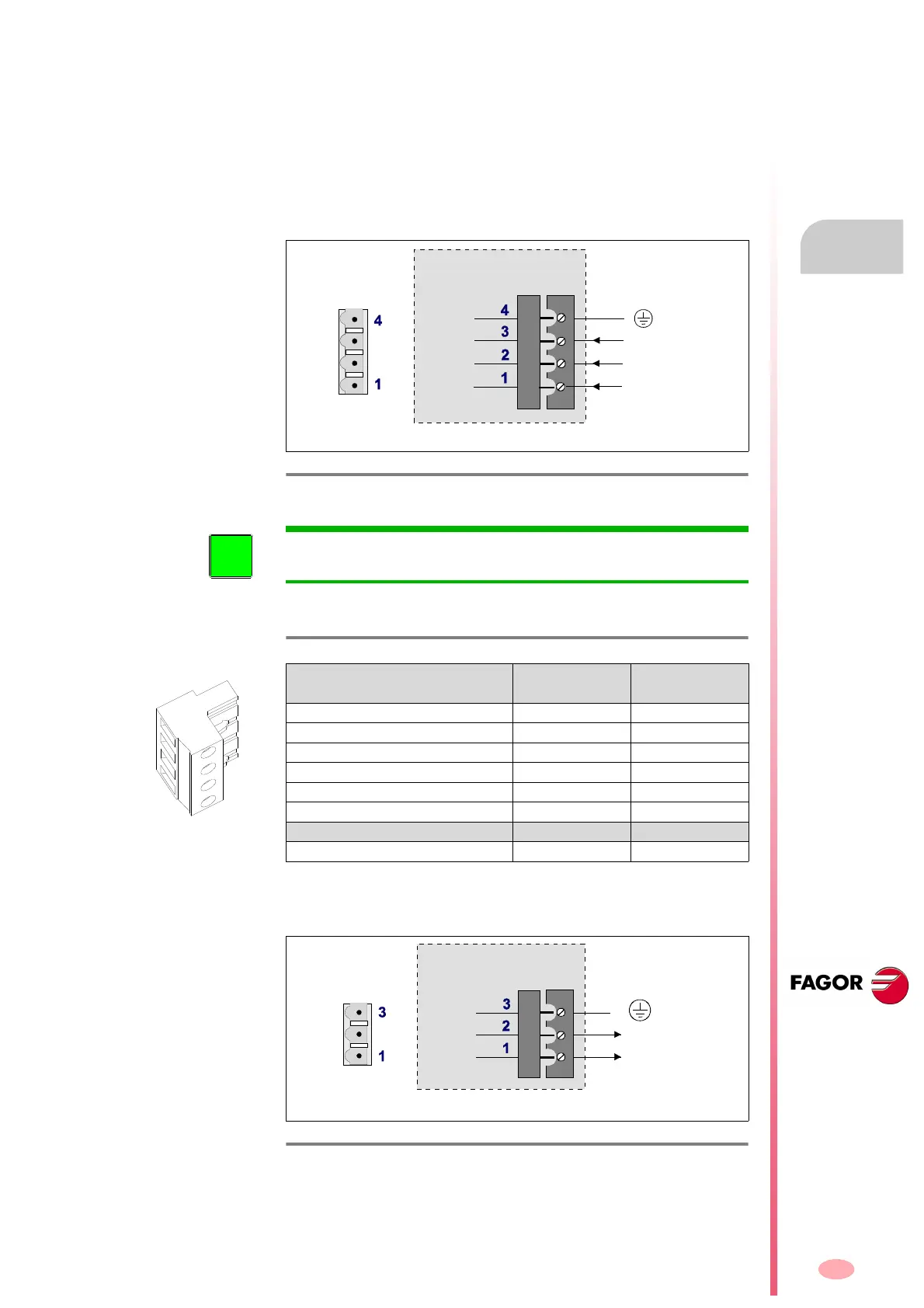

F. H2/44
Connector X1. Powering the auxiliary power supply integrated into RPS
power supplies.
(Phoenix,
7.62 mm)
RPS-
X1
400 - 460 V AC
400 - 460 V AC
400 - 460 V AC
L1
L2
L3
L1, L2, L3 phases
may be connected
in any sequence
INFORMATION. The mains phases feeding terminals 1, 2 and 3 of connec-
tor X1 may be connected in any phase order; i.e. RST, RTS, STR, ...
T. H2/32 Data of the plug-in connector for X1.
Connector data
RPS-80
RPS-75
RPS-45
RPS-20
Nr of poles 4 4
Gap (mm) 7.62 7.62
Min/max tightening torque (N·m) 0.5/0.6 0.5/0.6
Screw thread M3 M3
Min./max. section (mm²) 0.2/2.5 0.2/2.5
Rated current In (A) 12 12
Wire data
Length to strip (mm)
77
F. H2/45
Connector X2. 24 V DC output.
(Phoenix,
5.08 mm)
0 V DC
+ 24 V DC
X2
RPS-
