EN

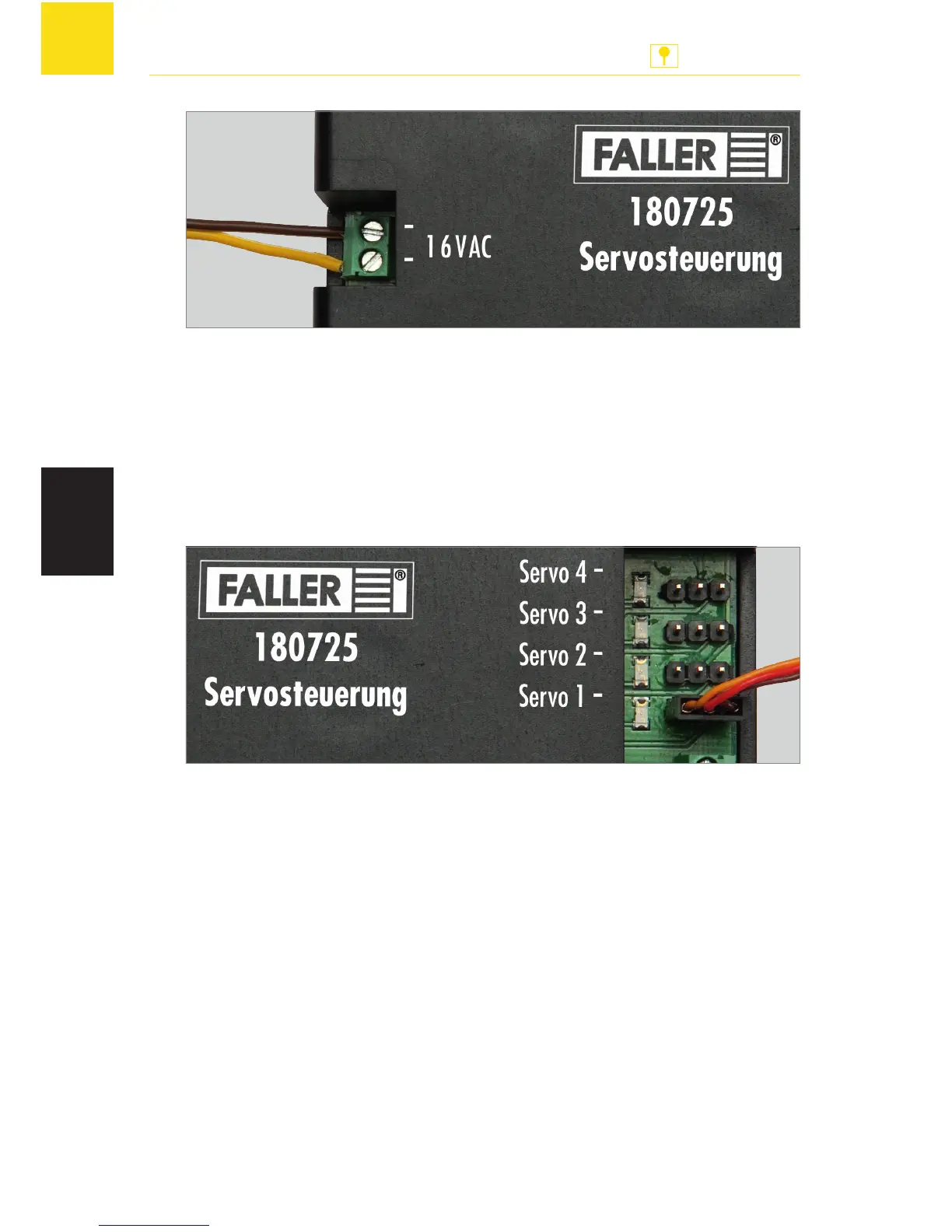

Fig. 3: Connecting the supply voltage
X
Connect a 16 V alternating voltage to the »16 VAC« port of the Servo
Control, see Fig. 3.
»Prog« LED flashes at lower heart rate.
Connecting servos
You may connect up to four servos to the Servo Control.
Fig. 4: Connecting servos
ADVICE: »Servo 1« to »Servo 4« ports are protected against reversed polar-
ity. If you have wrongly connected the supply cable of a servo by mistake,
the Servo Control will not be able to address the servo. In such a case sim-
ply rotate the plug by 180°.
X
Connect one or several servos to one or several of the »Servo 1« to
»Servo 4« ports on the Servo Control, see Fig. 4.
