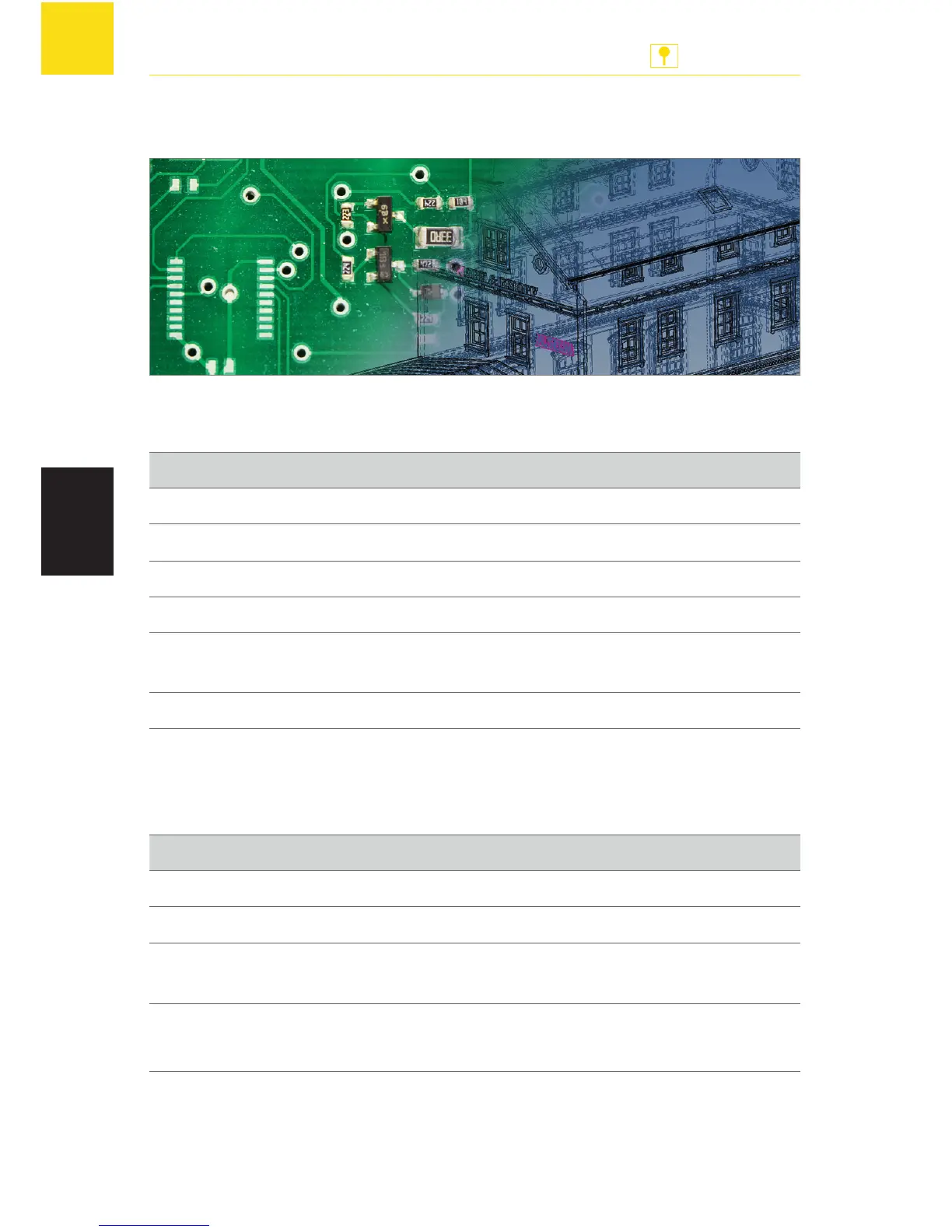

9. Technical data and symbols
Power supply
Designation Value
Supply voltage 16 V alternating current
Frequency range 50/60 Hz
Total load 700 mA
Load on each servo output 700 mA
Approved servos All commercially available
standard servos
Number of connectable servos 4 servos
Tab. 3: Power supply
Digital data
Designation Value
Switching addresses 2 switching addresses
Address range 1-2048
Pulse-width of control pulses
emitted by the digital control unit
Between 1 and 2 ms
Digital formats DCC
Motorola
Tab. 4: Digital Data
