Connection
ANLAGENBAU
EN
Connecting push buttons
For each servo position you may connect a push button.

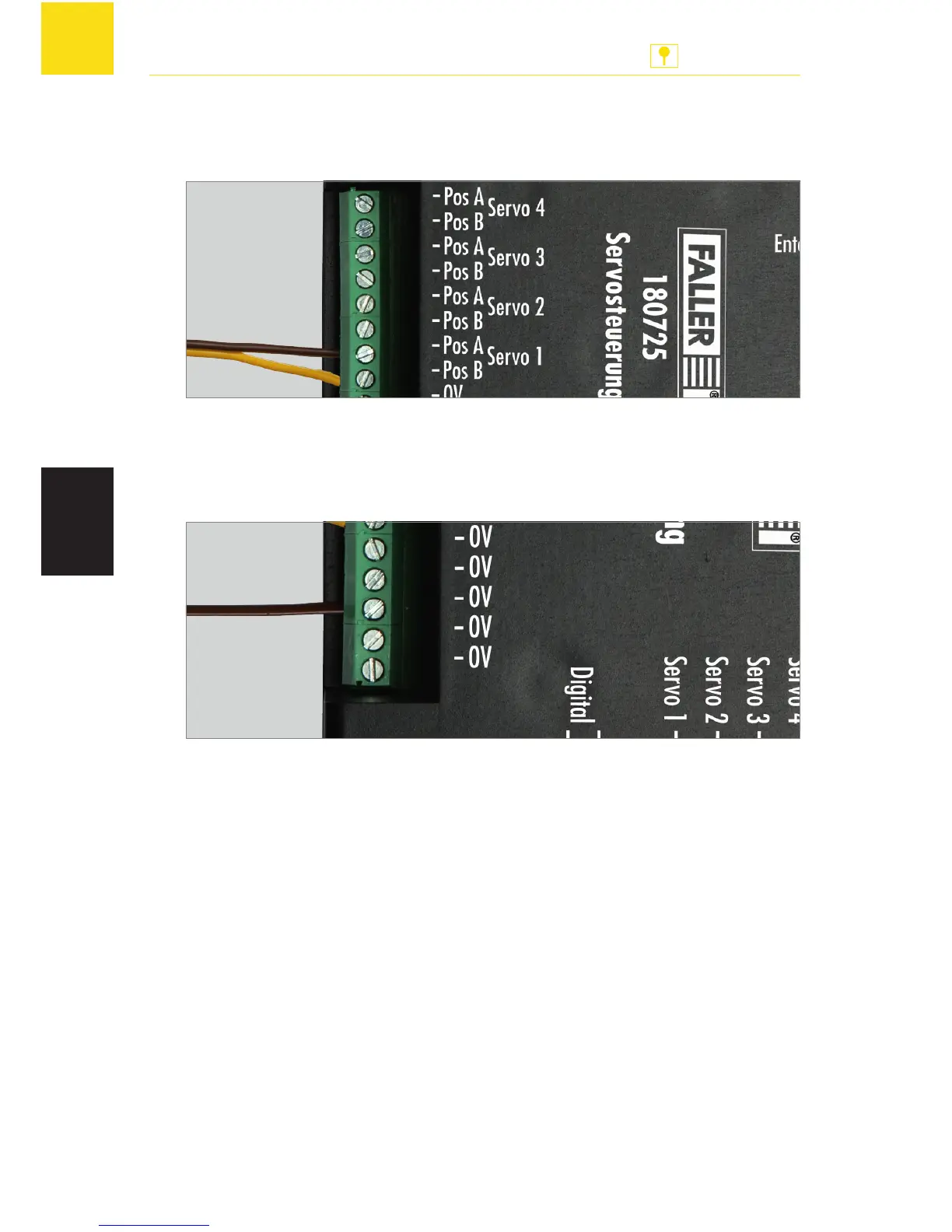

Fig. 6: Connecting push buttons
X
Connect one or several push buttons to one or several of the »Pos A
Servo 1« to »Pos A Servo 4« ports and »Pos B Servo 1« to »Pos B Servo
4« ports on the Servo Control, see Fig. 6.
Fig. 7: Connecting to the ground
X
For each push button, connect the ground wire of the push button to
one of the »0V« ports on the Servo Control, see Fig. 7.
