Connection
ANLAGENBAU
EN
Connecting a digital control unit
The Servo Control is compatible with DCC and Motorola digital systems.
If you connect the Servo Control to a digital control unit, you will be
able to preset the servos effortlessly via the digital control unit even
though the Servo Control has been built into your installation already.
TIP

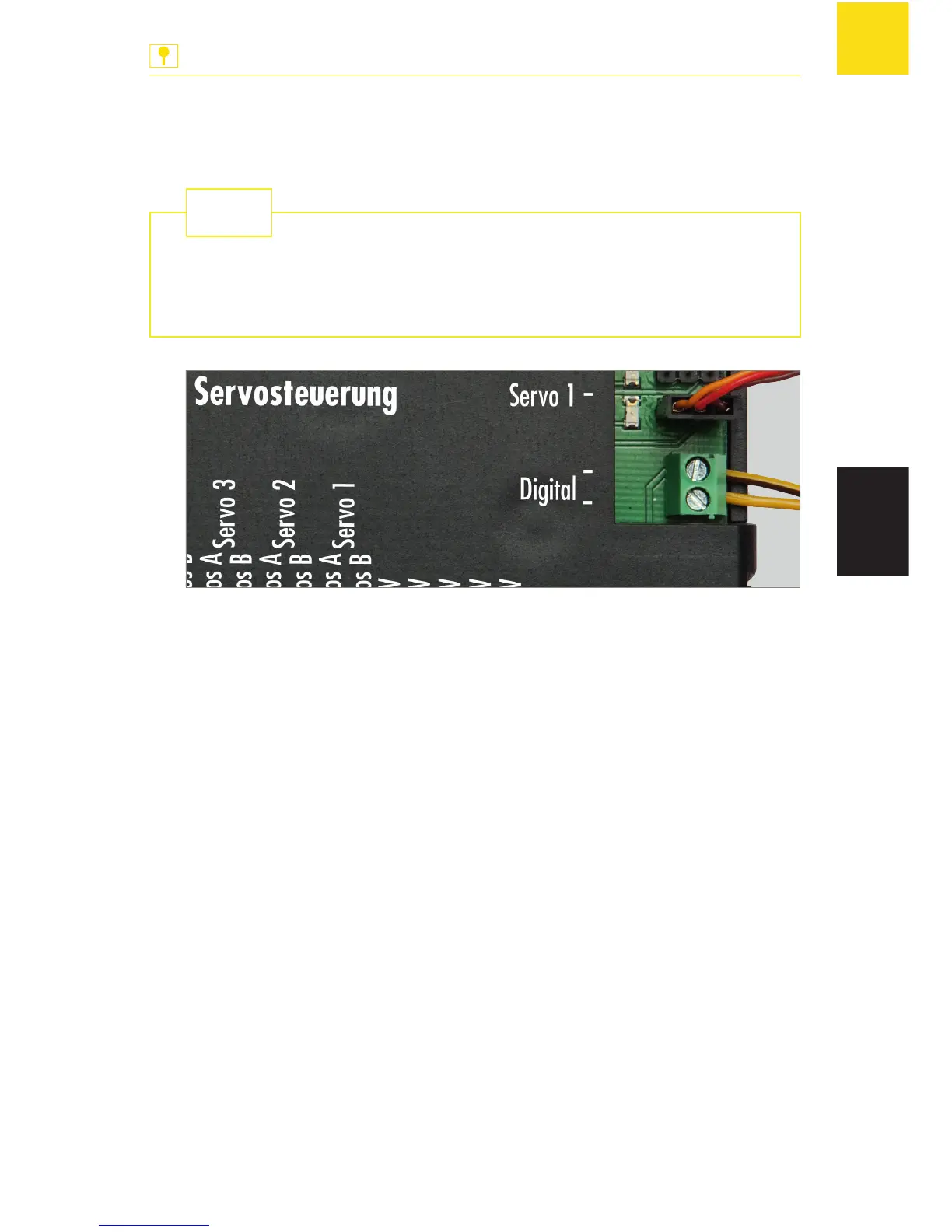

Fig. 5: Connecting a digital control unit
ADVICE: A digital control unit and the Servo Control may not under any
circumstances be connected to the same transformer.
X
If you want to preset servos via a digital control unit, connect the »Dig-
ital« port of the Servo Control to a programming track port of the dig-
ital control unit, see Fig. 5.
X
If you want to position servos via a digital control unit, connect the
»Digital« port of the Servo Control to a track output of a digital con-
trol unit, see Fig. 5.
