10

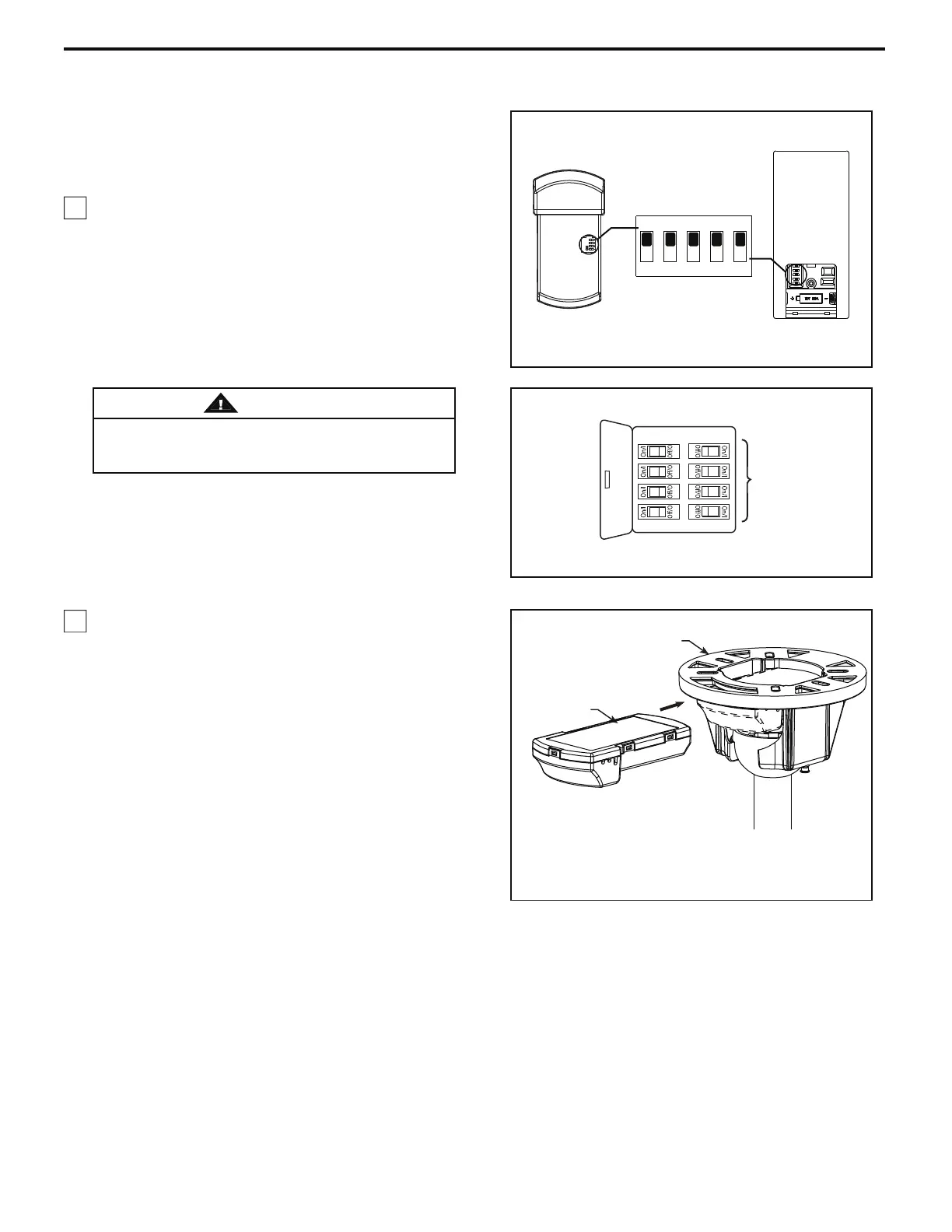

How to Wire Your Ceiling Fan
Hanger Bracket
Receiver
NOTE: Supply wires
omitted for clarity.
MAIN FUSE BOX
Figure 2
Figure 3
Figure 1
Dip Switch
Receiver
Remote Control
ON DIP
1 2 3 4 5
NOTE: Factory setting is all up. Do not use this position.
1. To set the code on receiver unit, slide dip switches to
the same positions as set on the remote. (Figure 1)
NOTE: The remote unit has 32 different code
combinations. To prevent possible interference from or
to other remote units, simply change the combination
code in the remote and receiver.
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
(Figure 2)
WARNING
CAUTION: INCORRECT WIRE CONNECTION WILL
DAMAGE THIS RECEIVER.
NOTE:
If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
2. Slide the receiver into the hanger bracket before
wiring as shown in figure 3.
To Next Page
