4
Hanger Bracket
Assembly (1)
Motor Coupling
Cover Assembly (1)
Motor Assembly (1)
Bulb (4)
Canopy Screw
Cover Assembly (1)
This manual is designed to make it as easy as possible for you to assemble,
install, operate and maintain your ceiling fan
Installed Wire Length
Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft.
12
Materials
Wiring outlet box and box connectors must be of type
required by the local code. The minimum wire would be a
3-conductor (2-wire with ground) of the following size:
NOTE:
Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are
missing contact your local retailer.
Ceiling Canopy (1)
Before assembling your ceiling fan, refer to section
on proper method of wiring your fan (page 10). If you
feel you do not have enough wiring knowledge or
experience, have your fan installed by a licensed
electrician.
WARNING
!
Tools Needed for Assembly
(Not included)
ne hillips head screwdriver
One stepladder
One wire stripper
One lade
screwdriver
NOTE: If you are uncertain of part description, refer to exploded view illustration.

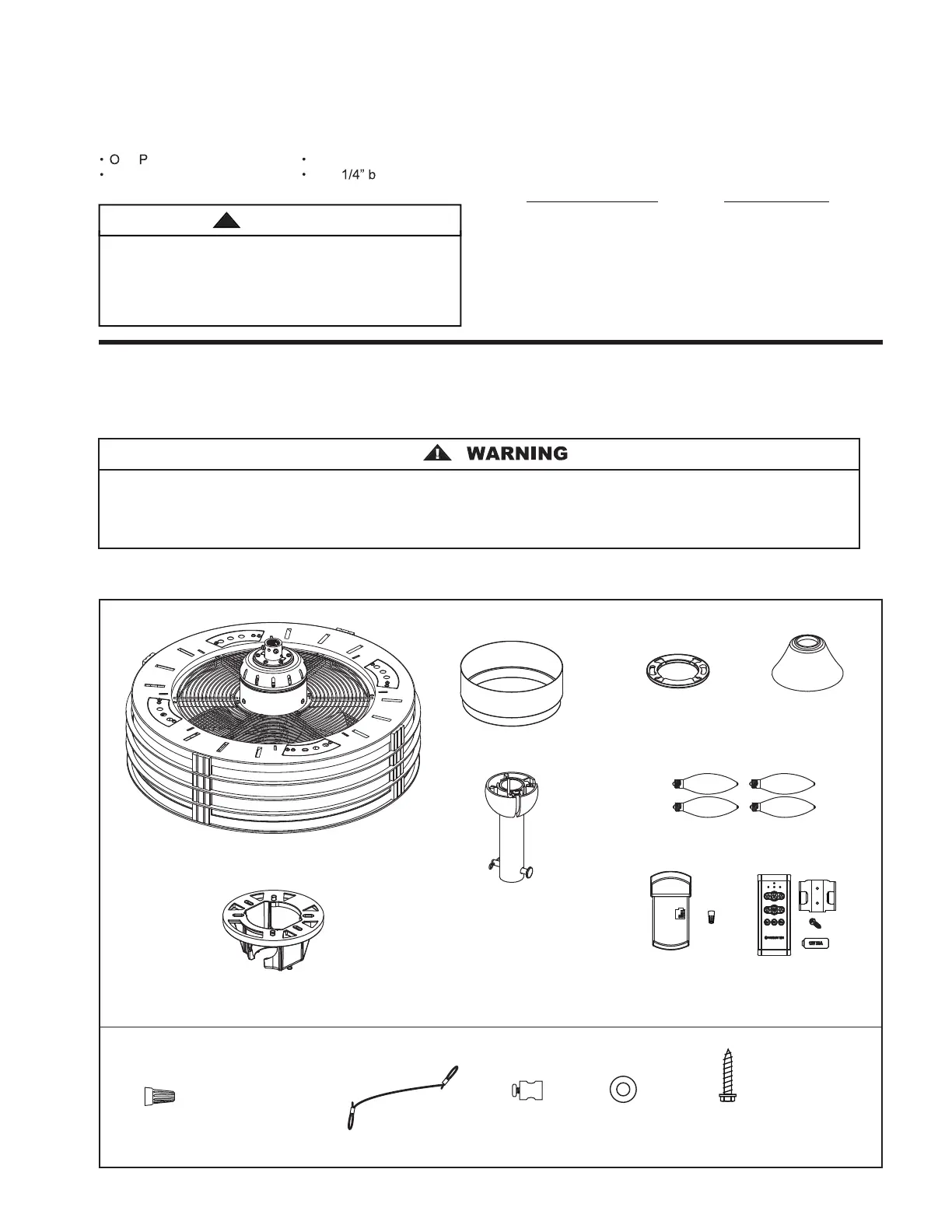

1. Check to see that you have received the following parts:
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each step is completed, place a check
mark in the box. This will insure that all steps have been completed and will be helpful in finding your place should
you be interrupted.
Do not install or use fan if any part is damaged or missing. This product is designed to use only those parts
supplied with this product and/or any accessories designated specifically for use with this product by
Fanimation. Substitution of parts or accessories not designated for use with this productby Fanimation could
result in personal injury or property damage.
Downrod/Hanger Ball
Assembly (1)
– Downrod (1)
– Hanger Ball (1)
– Clevis Pin (1)
– Hairpin Clip (1)
– Set Screw (1)
– Pin (1)
Receiver (1)
Wire Connectors (6)
Hand-held Remote (1)
Wall Holder (1)
Screws (2)
Battery (1)
12V 23A
Hardware bags
Wire Connectors (4)
Safety Cable Kit
Safety Cable (1) Cable Clamp (1)
Flat Washer,
Stainless Steel (1)
Lag Bolt (1)
To Next Page
