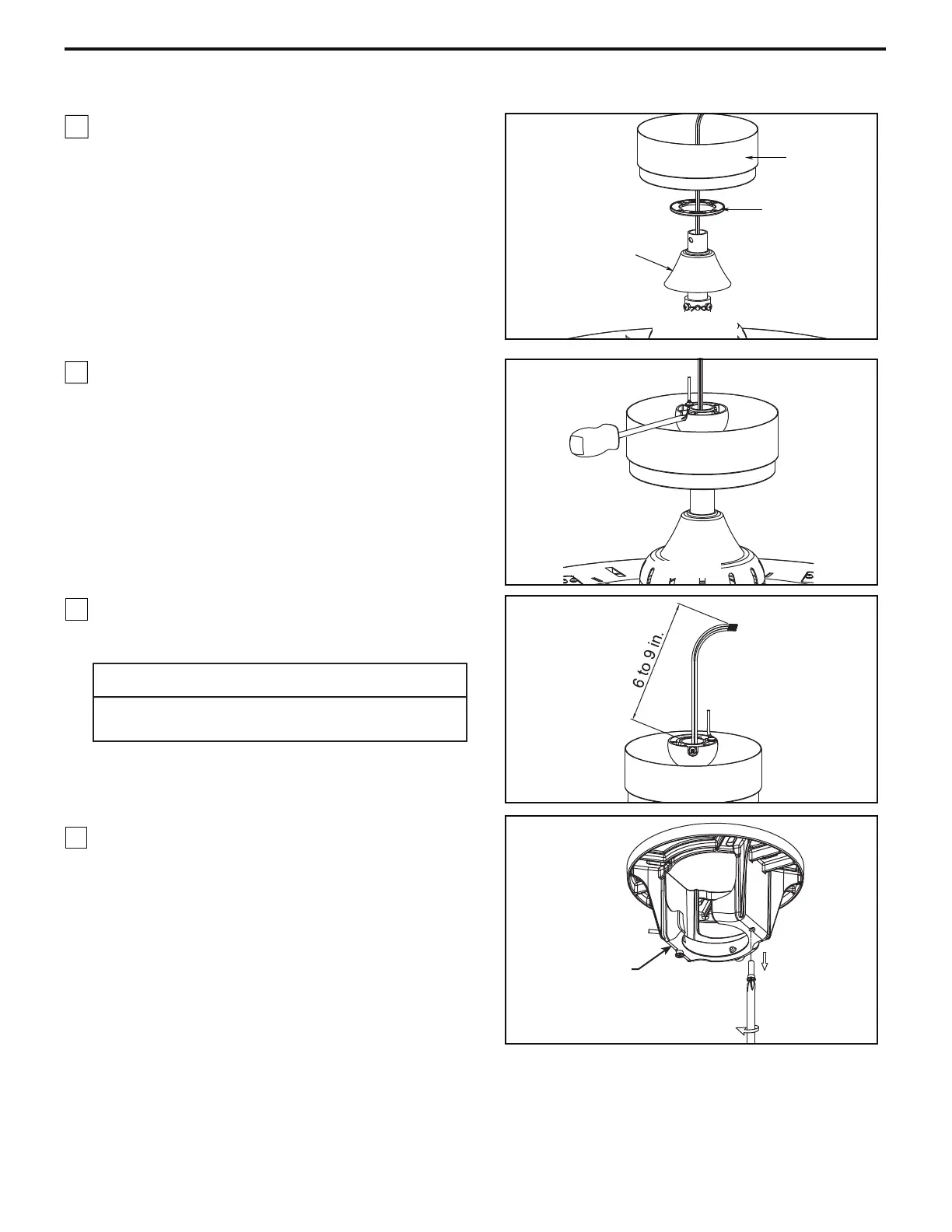

5. Route wires through motor coupling cover, canopy
screw cover and ceiling canopy. (Figure 5)
Motor Coupling
Cover
Ceiling Canopy
Canopy Screw
Cover
8
How to Assemble Your Ceiling Fan (continued)
7. Cut off excess lead wire approximately 6 to 9 inches
above top of the downrod. Strip insulation off 1/2 inch
from the end of each lead wire. (Figure 7)
Figure 6
Figure 5
Figure 7
6. Reinstall the hanger ball on the downrod as follows.
Route the black, white and blue wires and safety cable
through the hanger ball. Position the pin through
the two holes in the downrod and align the hanger
ball so the pin is captured in the groove in the top
of the hanger ball. Pull the hanger ball up tight
against the pin. Securely tighten the set screw in the
hanger ball. A loose set screw could create fan
wobble. (Figure 6)
8. Remove one of the two shoulder screws in the
hanger bracket and retain the screw for later. Loosen
the second shoulder screw without fully removing it.
(Figure 8)
Figure 8
Hanger Bracket
CAUTION
All set screws must be checked, and retightened where
necessary before installation.
