How to Wire and Operate Your C9 Wall Control
1. Setting the Code: The remote unit has 16 different code
combinations. It may be necessary to test a couple frequency
code settings to improve signal reception and/or eliminate
interference from other remote control household items. Multiple
fans should have different code settings to allow independent
fan control. To set the code, perform these steps.
• Wall Transmitter: Slide code switches to your choice of up or
down position. Factory setting is all up. Do not use this position.
With a small screwdriver or ball point pen slide fi rmly up or
down (Figure 11a). Replace battery cover on the transmitter.
• Receiver: Slide code switches to the same positions as set
on your wall transmitter (Figure 11b).
2. Installing Receiver in Hanger Bracket:
• Slide remote Receiver into the Hanger Bracket (Figure 12)
• Connect wires as indicated: (Figure 13)
– Green Hanger Bracket and Hanger Ball wires to BARE
(ground) wire.
– BLACK Receiver Unit wire (AC IN L) to BLACK supply wire.
– WHITE Receiver Unit wire (AC IN N). to WHITE supply wire.
– WHITE Receiver Unit wire (TO MOTOR N) to WHITE fan wire.
– BLACK Receiver Unit wire (TO MOTOR L) to BLACK fan wire.
– BLUE Receiver Unit wire (FOR LIGHT DOWN) to BLUE light
wire.
– ORANGE Receiver Unit wire (FOR LIGHT UP) to ORANGE
light wire.
• Position all connected wires and receiver antenna to allow
installation of ceiling canopy.
• Using canopy screws threaded into the hanger bracket
reinstall ceiling canopy.
3. Installing Wall Transmitter (Figure 14):
• With electrical power still disconnected, remove the existing
wall plate and switch.
• Make wiring connections with wire nuts as shown in Figure 3.
– One black wire from wall control unit to black (hot supply).
– One black wire from wall control unit to black wire leading to
ceiling outlet box.
• Attach wall control unit to outlet box using the two 6-32 screws
provided.
• Attach wall plate to the switch control front using the two small
screws provided.
• Restore electrical power.
4. Operating & Using Wall Transmitter:
• HI Push Button – high fan speed
• MED Push Button – medium fan speed
• LOW Push Button – low fan speed
• OFF Push Button – fan off
• U/L Push Button – on/off and brightness control for optional
up light
• D/L Push Button – on/off and brightness control for optional
down light
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
NOTE: If fan or supply wires are different colors than indicated,
have this unit installed by a qualifi ed electrician.

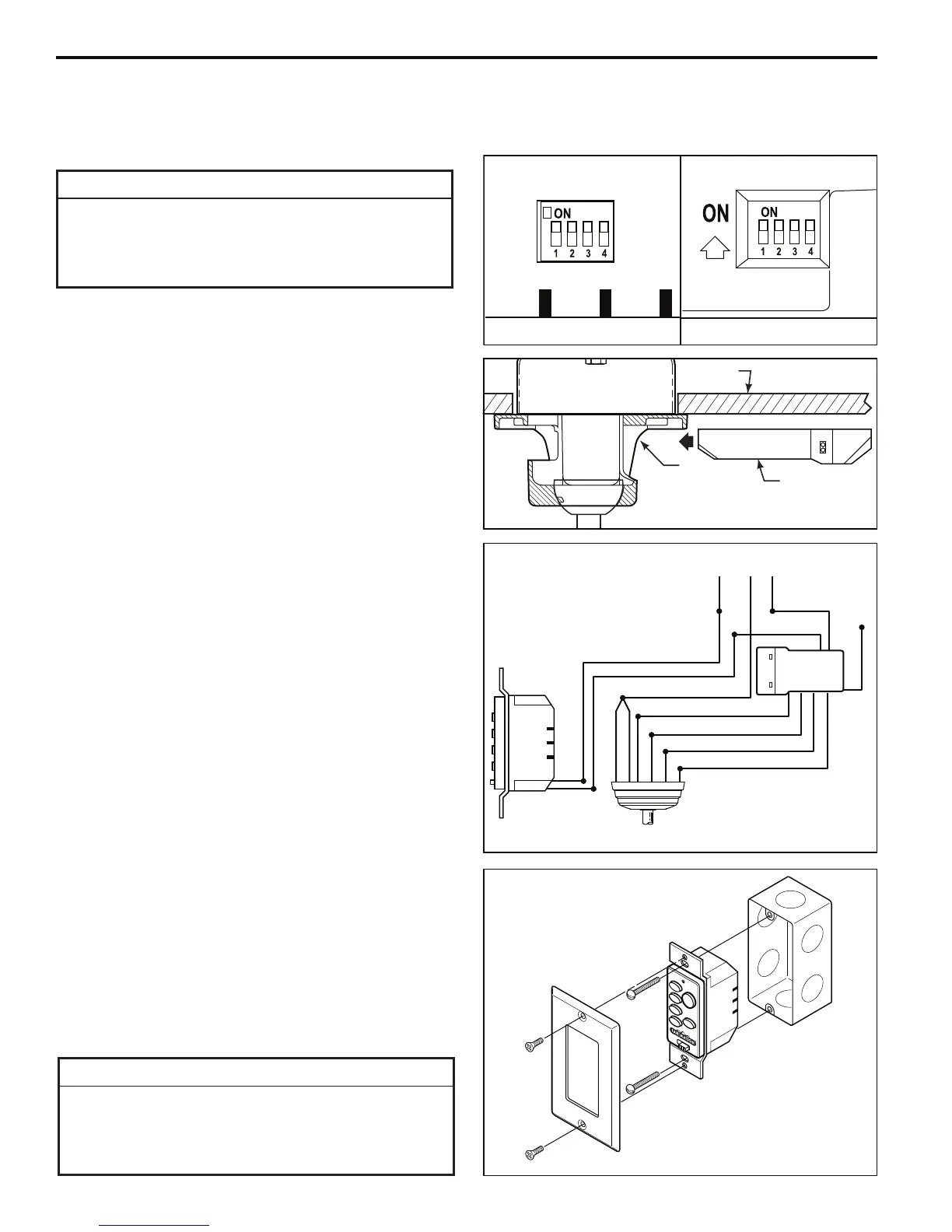

Figure 12
Figure 11bFigure 11a
Receiver Unit
Ceiling
Bracket
(Open End)
BLK-ANT
BL-AC IN L
WH-AC IN N
BLUE-FOR LIGHT DOWN
BLK-TO MOTOR L
WH-TO MOTOR N
GRN or BARE GROUND
GRN from hanger ball
GRN from bracket
Wall Transmitter Unit Detail
(located on side of Wall Control)
Receiver Unit Detail
120 VAC SUPPLY
(User Supplied)
NOTE: Receiver wires omitted for clarity.
Figure 13
ORG-FOR LIGHT UP
WH
GRN
BLK
BLK
BLK
Figure 14
NOTE: Supply wires and fan wires
omitted for clarity.
▲
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
▲
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until the blades is in place. Noise and fan damage
could result.
