9

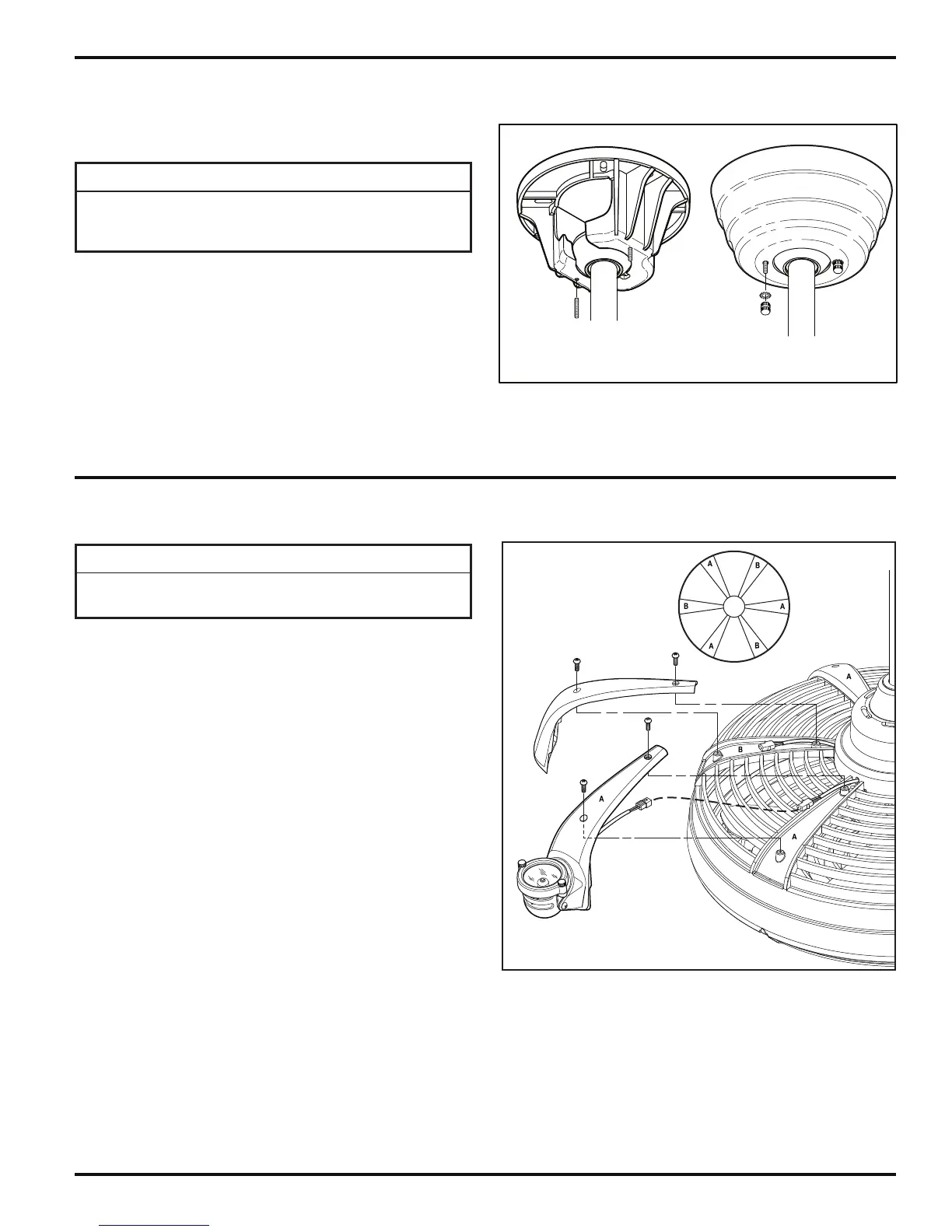

Installing the Canopy Housing
1. Screw in two threaded rods into the Hanger Bracket
(Figure 15a).
NOTE: The threaded rods in the hanger bracket serves
as guides for easier installation.
2. Securely attach the Canopy Housing to the Hanger
Bracket using the external lockwashers and knurled
knobs supplied with your fan (Figure 15b)
Figure 15a
How to Install Your Light Kit - LK23 (Optional)
1. Turn off power.
2. Remove the “plain” light channel covers with the
Philips screwdriver. Save the screws. (Figure 16)
3. Carefully connect the electrical connector on the light
kit to connector on the fan housing before mounting the
light kits.
4. Position light kit (LK23_ _) to corresponding position
(Light A to position “A”, Light B to position “B”) on top of
the fan housing and refasten the screws you saved from
step two. Be sure the wires are not pinched between the
cover and the fan assembly. Do not over-tighten.
5. Adjust the position of each light to a desired angle.
6. Restore power.
7. See pages 7 & 8 to operate your LK23 light Kit.
Remove
Light Channel
Cover
Figure 16
Install
LK23_ _
Unit
NOTE: This step is applicable after the neccessary
wiring is completed. (see page 7 or 8)
Figure 15b
NOTE: Supply wires and fan wires omitted for clarity
▲
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy housing
and not pinched between the housing and the ceiling.
▲
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box.
To Next Page
