Wire Connectors
RECEIVER HARDWARE USED:
X 7
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors. Do not operate fan until the blades are in
place. Noise and motor damage could result.
3. Connect wires using connectors as shown in
Figure 4.
CAUTION: INCORRECT WIRE CONNECTION
COULD DAMAGE THIS RECEIVER.
13

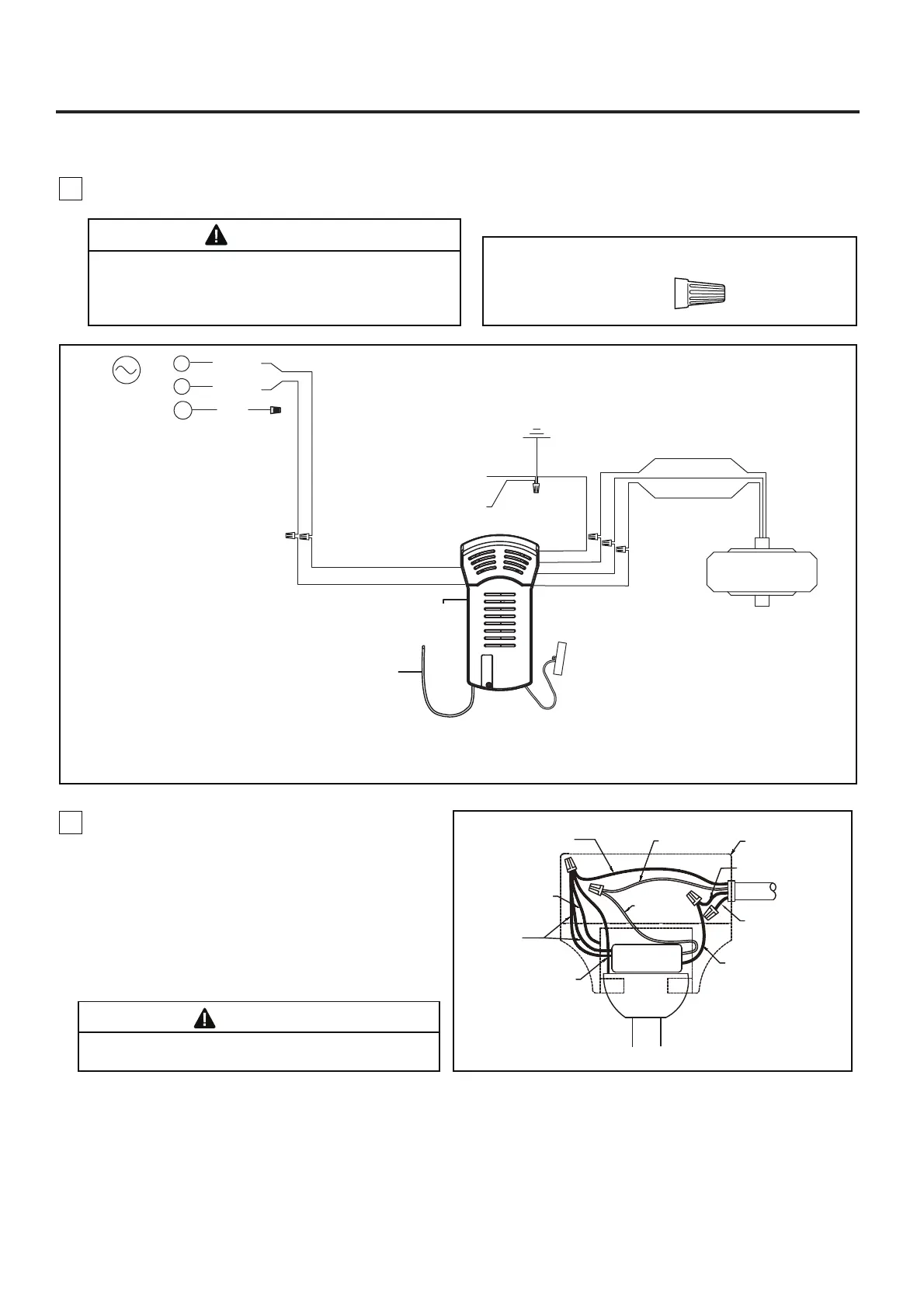

How to Wire Your Ceiling Fan (Continued)
WARNING
The blades must be installed first before programming
is performed.
Listed Outlet Box
White Wire
from Supply
Green Wire
from Supply
(Ground)
Household
Supply
Black Wire
from Supply
Black Wire
from Receiver
White Wire
from Receiver
Green Wire
from Hanger
Bracket (Ground)
Green Wire
from Hanger
Ball (Ground)
Green Wire
from Receiver (2)
(Ground)
Receiver
Figure 5
Red Wire
from Supply
4. After connections have been made, put the
white and green leads to one side and the black
leads towards the other side, the connection
should be turned upward and carefully push leads
into the outlet box. The wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and the ungrounded conductor on
the other side. (Figure 5)
BLACK
BLACK
WHITE
WHITE
L
N
AC
POWER
RED
GRAY
YELLOW
RED
GRAY
YELLOW
YELLOW
/ GREEN (2)
GROUND
HANGER
BRACKET
HANGER
BALL
DC MOTOR
Figure 4
BLACK
ANTENNA
Receiver
RED
L1
To Next Page
