How to Hang Your Ceiling Fan
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
WARNING
To avoid possible fire or shock, be sure electricity is
turned off at the main fuse box before hanging.

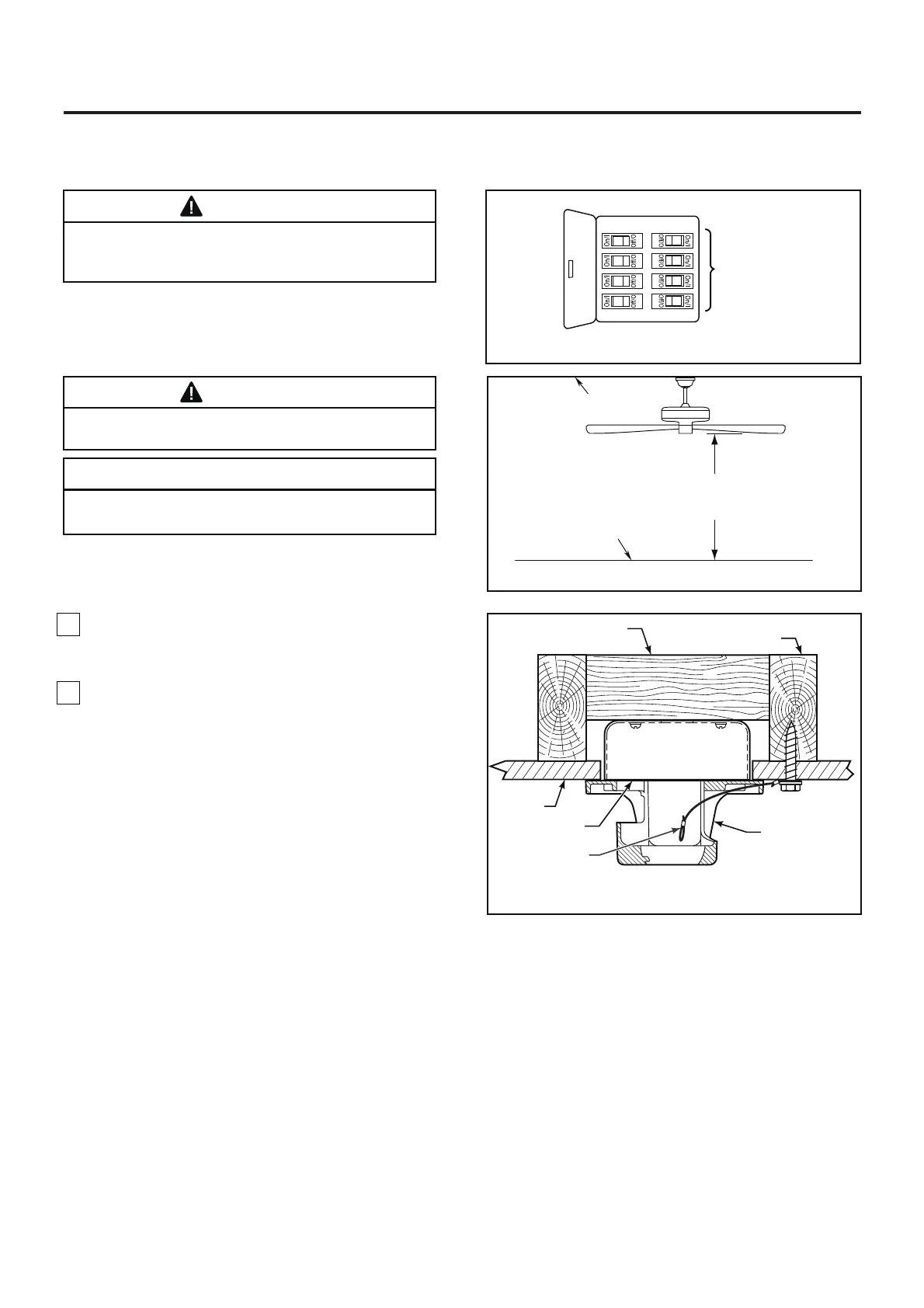

(Figure 1)
Figure 1
Main Fuse Box
1. Securely attach the hanger bracket to the outlet box
using the outlet box screws and washers supplied with
the outlet box. (Figure 3)
2. Drill a 1/4” pilot hole into the building structure to
prevent splitting or cracking with installation of the lag
bolt. Using the 3/8” x 2” lag bolt and flat washer, attach
safety cable to ceiling joist or wood structural member.
The lag bolt will pass through the flat washer, safety
cable loop, and into the building structure. (Figure 3)
NOTE: Ceiling support cable cannot be secured to
outlet box only, it must be directly secured to ceiling
joist or structural member using the 3/8” x 2” lag bolt
and flat washer. (Figure 3)
Figure 2
Figure 3
Ceiling
Floor
Ceiling Joist
Hanger Bracket
Ceiling
Outlet Box
Ceiling Support
Cable
Wood Member
(2” x 4” Approx.)
No Less
Than
7 Feet
WARNING
The fan must be hung with at least 7’ of clearance from
floor to blades. (Figure 2)
CAUTION
Do not bend the blades when handing, it may result in
damage to the fan blades.
To Next Page
