This manual is designed to make it as easy as possible for you
to assemble, install, operate, and maintain your ceiling fan
Unpacking Instructions
For your convenience, check-off each step. As each step is completed, place a check mark. This will ensure that all
steps have been completed and will be helpful in finding your place should you be interrupted.
Wiring outlet box and box connectors must be of type
required by local code. The minimum wire would be a 3-
conductor (2-wire with ground) of the following size:
NOTE: Place the parts from the loose parts bags in a small
container to keep them from being lost. If any parts are missing,
contact your local retailer.
Wire Size A.W.G.Installed Wire Length
14
12
Up to 50 ft.
50 - 100 ft.
4
WARNING
Before assembling your ceiling fan, refer to section on
proper method of wiring your fan (page 12). If you feel you
do not have enough wiring knowledge or experience,
have your fan installed by a licensed electrician.
Hanger Bracket
Assembly (1)
Motor Assembly (1)
Blade Set (1)
Ceiling Canopy (1)
Canopy Screw
Cover Assembly (1)
Motor Coupling
Cover Assembly (1)
• One Phillips head screwdriver
• One 1/4˝ flat head screwdriver
• One stepladder
• One wire stripper • Four wire connectors
• One hex wrench
Upper Housing (1)
Hardware Bags Safety Cable Kit
3/16"-24 Serrated Head
Screws (10)
Wire Connectors (4) Safety Cable (1) Cable Clamp (1) Flat Washer,
Stainless Steel
(1)
Lag Bolt
(1)
Flat Washers (10)
Downrod/ Hanger Ball
Assembly (1)
– Downrod (1)
– Hanger Ball (1)
– Set Screw (1)
– Hairpin Clip (1)
– Clevis Pin (1)
– Pin (1)
Hand-held Remote (1)
Wall Holder (1)
Screws (2)
Batteries (2)
Receiver (1)
Wire Connectors (7)
Materials
Tools Needed for Assembly
(Not Included)

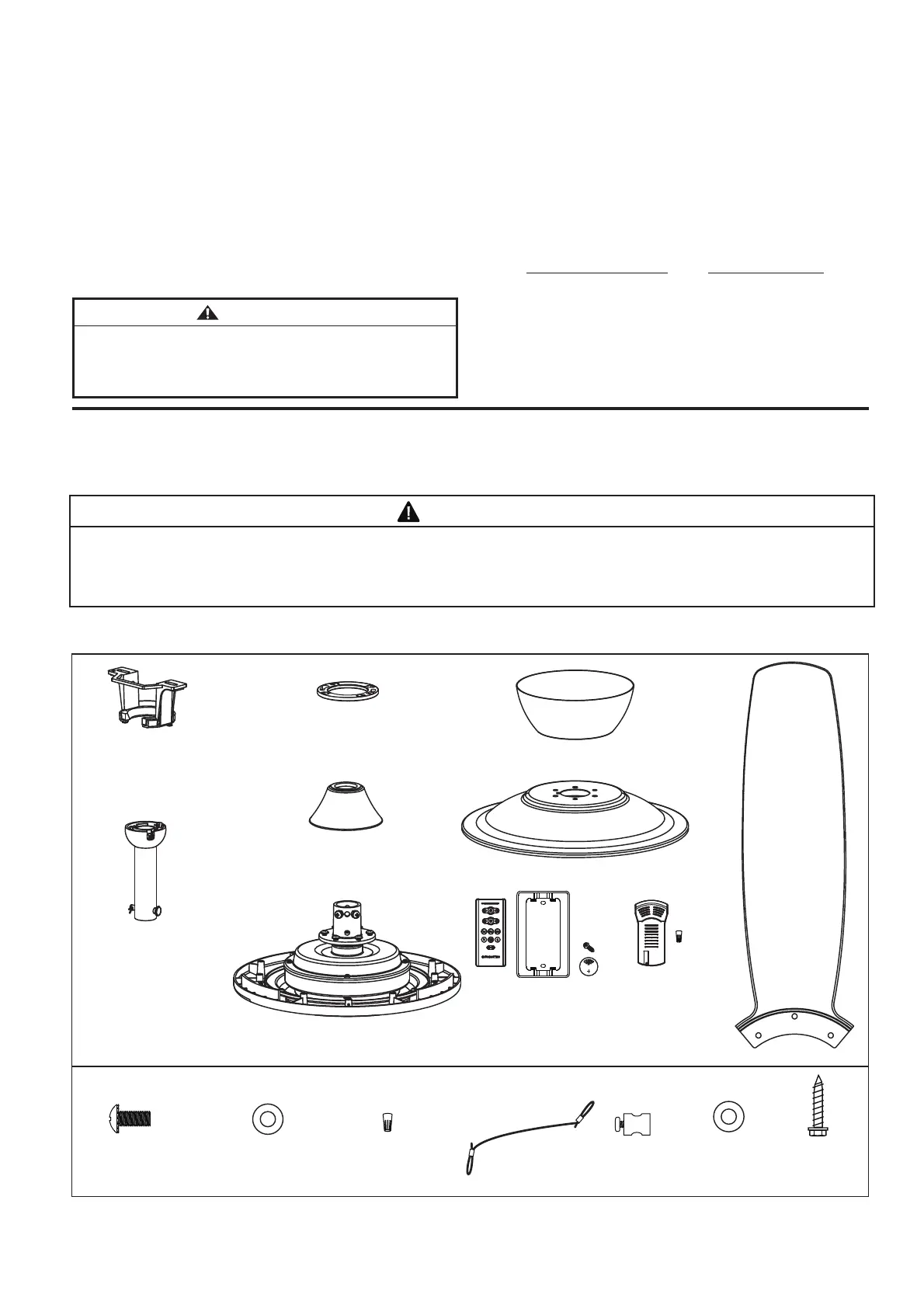

1. Check to see that you have received the following parts:
NOTE: If you are uncertain of part description, refer to exploded view illustration.
WARNING
Do not install or use fan if any part is damaged or missing. This product is designed to use only those parts supplied with
this product and/or any accessories designated specifically for use with this product by Fanimation. Substitution of parts
or accessories not designated for use with this product by Fanimation could result in personal injury or property damage.
Contact your retail store for missing or damaged parts.
