8
Figure 1

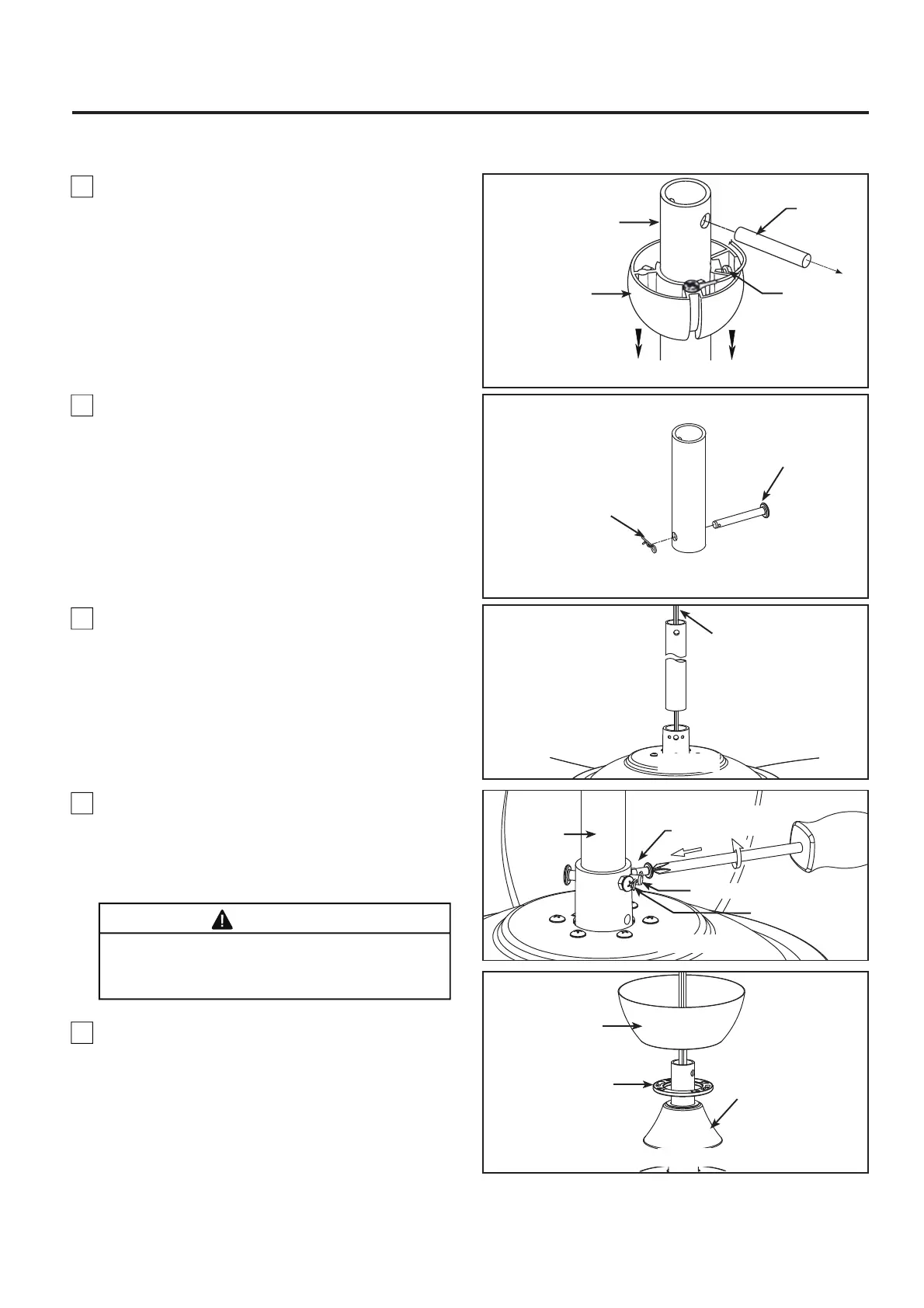

How to Assemble Your Ceiling Fan
Downrod
Set Screw
Pin
Hanger Ball
2. Remove the hairpin clip and clevis pin from the
bottom of the downrod. Retain the pin and clip for
reinstallation in Step 4. (Figure 2)
Figure 2
Hairpin Clip
Clevis Pin
Figure 5
WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the set screws and nuts are
securely tightened. Failure to do so could result in
the fan falling.
5. Route wires and safety cable through motor
coupling cover, canopy screw cover and ceiling
canopy. (Figure 5)
Downrod
Hairpin Clip
Figure 3
Motor Coupling
Cover
Ceiling Canopy
Canopy Screw
Cover
3. Route red, gray and yellow wires and safety cable
through the downrod. (Figure 3)
Figure 4
Set Screws and
Locking Nuts (2)
Clevis Pin
Red, Gray, Yellow wires
and Safety Cable
1. Remove the hanger ball portion from the
downrod/hanger ball assembly by loosening the set
screw in the hanger ball until the ball falls freely
down the downrod. Remove the pin from the
downrod, then remove the hanger ball. Retain the
pin and hanger ball for reinstal-lation in Step 6.
(Figure 1)
4. Slide downrod into the downrodsupport on top of
the motor. Install the clevis pin by aligning the holes
in the downrod support with holes in the downrod.
Secure clevis pin with hairpin clip. Install and tighten
the two set screws with nuts in the downrod support.
(Figure 4)
To Next Page
