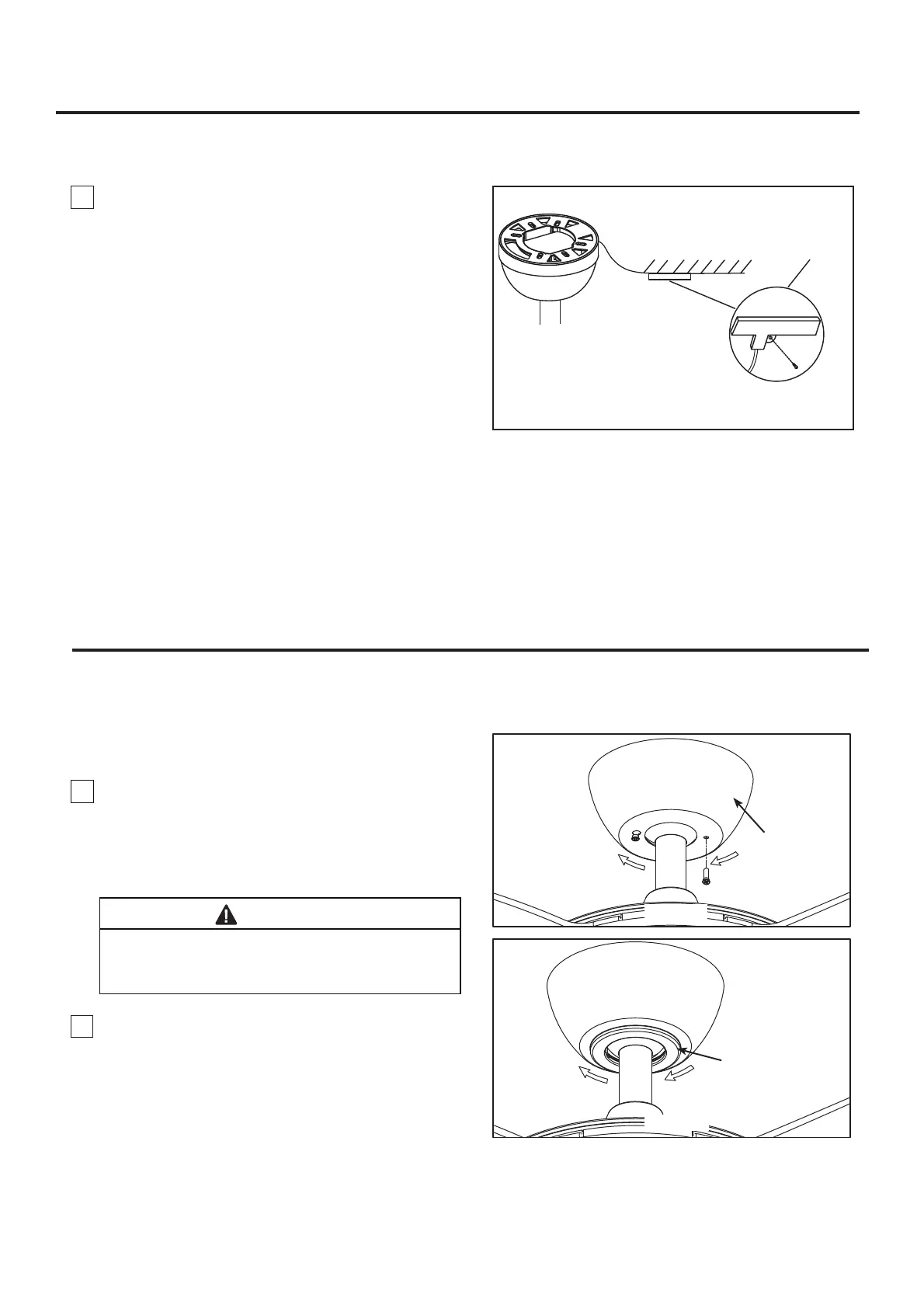

How to Install Your Canopy Housing
Figure 1
2. Securely attach and tighten the canopy screw cover
over the shoulder screws in the hanger bracket utilizing
the keyslot twist-lock feature. (Figure 2)
NOTE: This step is applicable after the neccessary wiring
is completed.
Figure 2
Ceiling Canopy
Canopy Screw
Cover
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the canopy
housing and not pinched between the housing and the
ceiling.
How to Wire Your Ceiling Fan (Continued)
1. Assemble canopy by rotating key slot in canopy
over shoulder screw in hanger bracket, taking care not
to pinch the wires. Tighten shoulder screw. Fully
assemble and tighten second shoulder screw that was
previously removed. (Figure 1)
Figure 6 (Optional)
WIFI antenna
Ceiling
After Installation
WIFI Antenna
mount to ceiling using
wood screw
5. The receiver has a wifi antenna that can be used if
you experience range issues. (Figure 6)
