Fanimation LEVON MAD7912B Series

How to Assemble Your Ceiling Fan Blades and Cap (Continued)

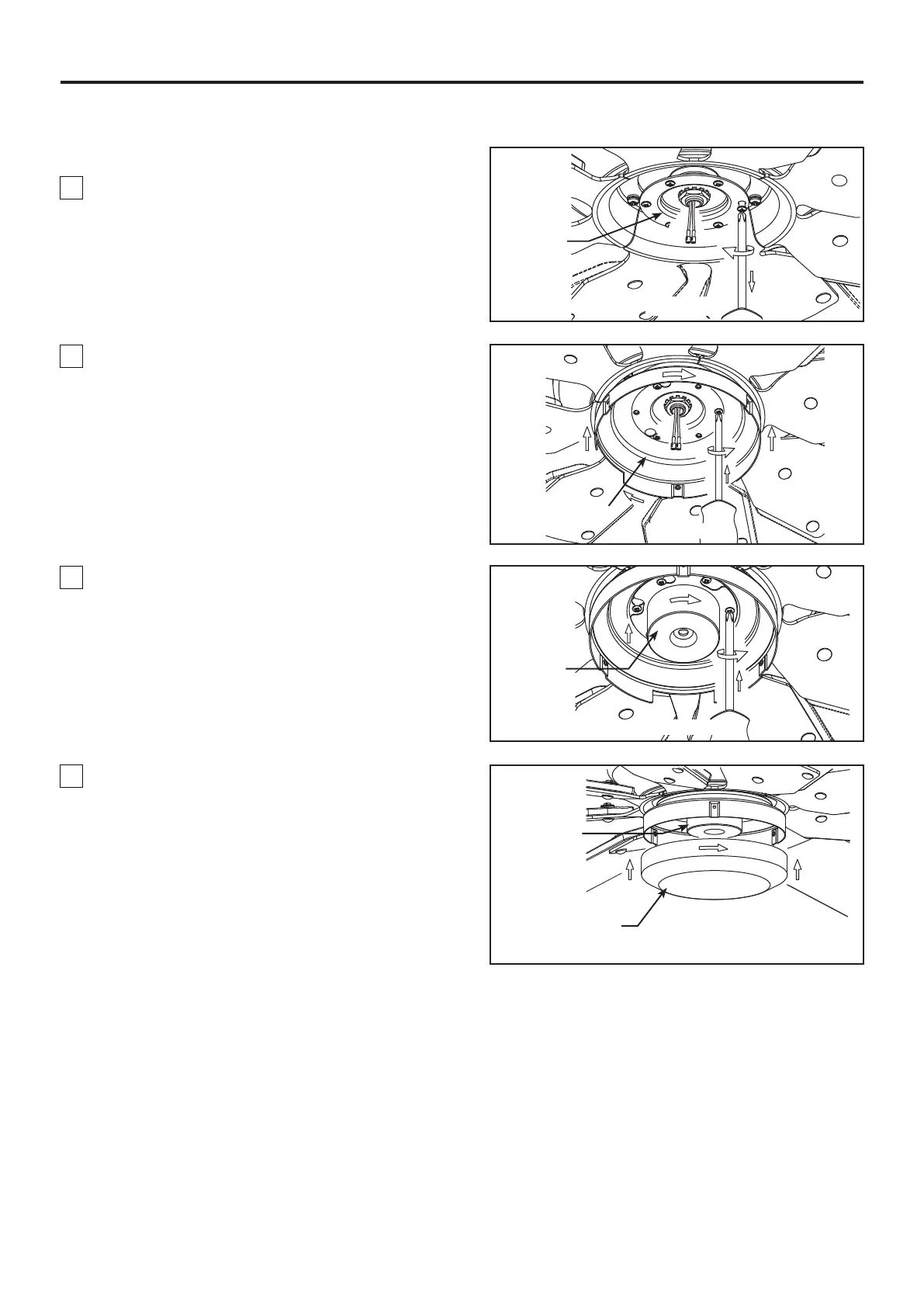

5. Attach the adapter-switch cup to the support flange
using three of the previously removed six screws and
fully tighten. (Figure 5)
6. Attach the inner-switch cup to the support flange
using the remaining three screws and fully tighten.
(Figure 6)
Figure 5
Adapter-
Switch Cup
Inner-
Switch Cup
Figure 6
7. Assemble the cover-switch cup assembly to the
inner-switch cup by twisting in a clockwise direction.
(Figure 7)
Inner-
Switch Cup
Cover-
Switch Cup
Assembly
Figure 7
Figure 4
Motor
Assembly
Switch Cup Assembly:
4. Remove the six screws in the motor assembly and
retain the screws for reassembly in steps 5 and 6.
(Figure 4)
