How to Assemble Your Ceiling Fan
Set Screw
Hairpin Clip
Downrod
Brown, Blue, Red, Gray,
Yellow wires and Safety
Cable
Set Screws
and Nuts (2)
Set Screws
and Nuts (2)
Hairpin Clip
Clevis Pin
Clevis Pin
Downrod
Pin
Hanger Ball

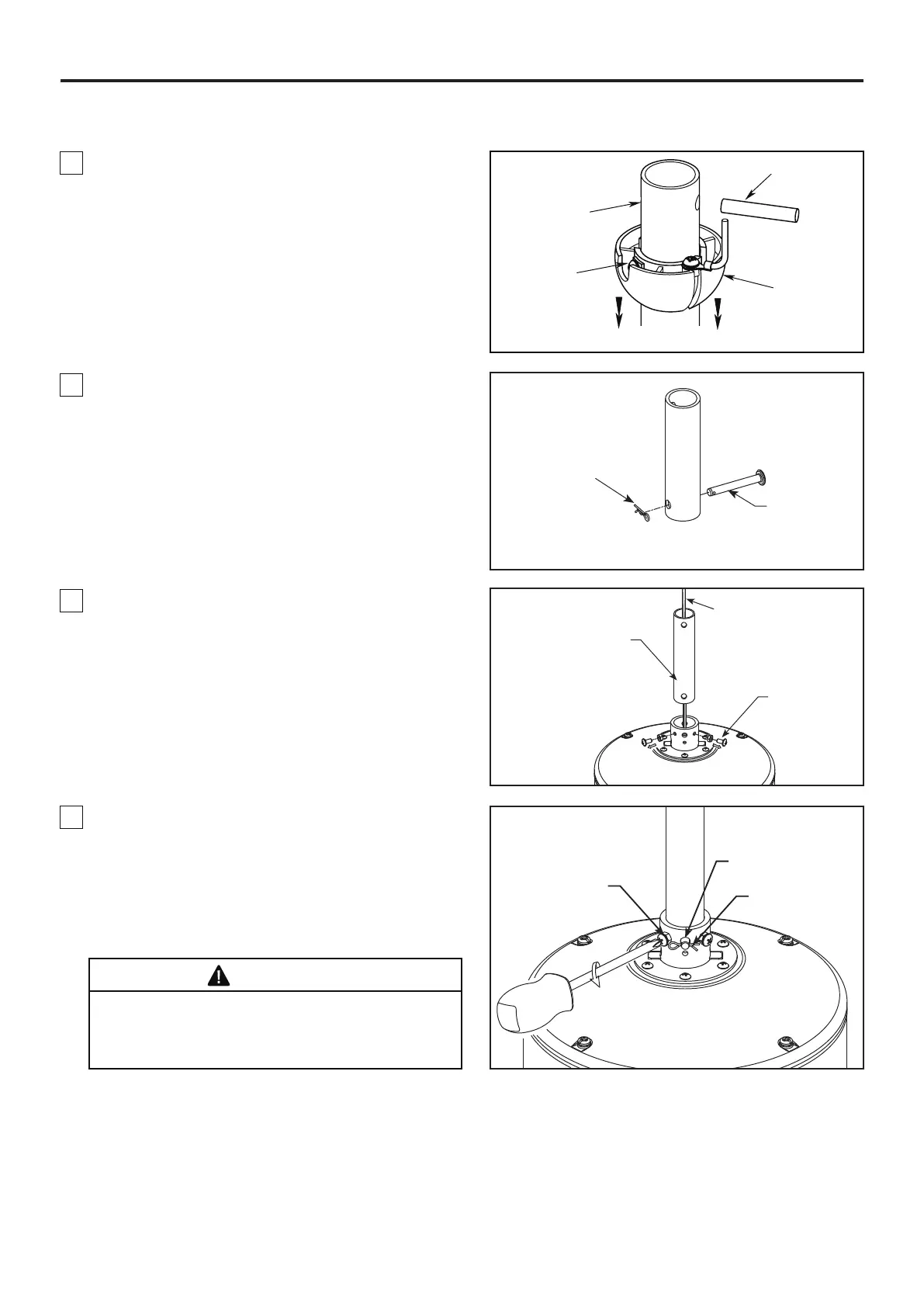

1. Remove the hanger ball portion from the downrod/
hanger ball assembly by loosening the set screw in
the hanger ball until the ball falls freely down the
downrod. Remove the pin from the downrod, then
remove the hanger ball. Retain the pin and hanger
ball for reinstallation in Step 6. (Figure 1)
Figure 1
2. Remove the hairpin clip and clevis pin from the
bottom of the downrod. Retain the pin and clip for
reinstallation in Step 4. (Figure 2)
3. Loosen the two set screws and locking nuts in the
downrod support of the motor assembly. Route the
brown, blue, red, gray and yellow wires and safety
cable through the downrod. (Figure 3)
4. Slide downrod into the downrod support on top of
the motor. Install the clevis pin by aligning the holes
in the downrod support with holes in the downrod.
Secure clevis pin with hairpin clip. Tighten the two set
screws with nuts in the downrod support. (Figure 4)
Figure 2
Figure 3
Figure 4
WARNING
It is critical that the clevis pin in the downrod support
is properly installed and the set screws and nuts are
securely tightened. Failure to do so could result in the
fan falling.
7
