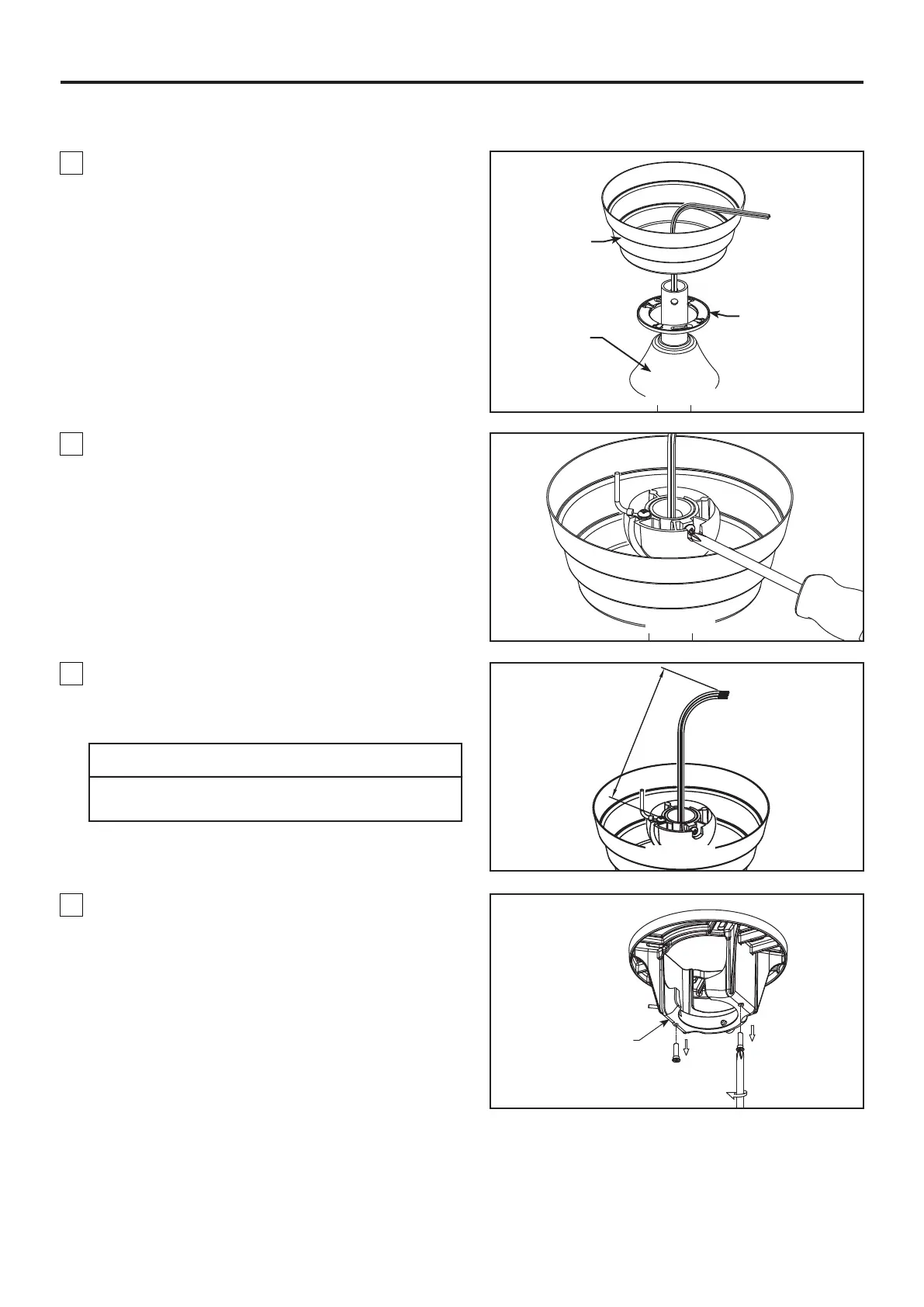

How to Assemble Your Ceiling Fan (Continued)
Figure 5
5. Route wires and safety cable through motor
coupling cover, canopy screw cover and ceiling
canopy. (Figure 5)
6. Reinstall the hanger ball on the downrod as follows.
Route the brown, blue, red, gray, yellow wires and
safety cable through the hanger ball. Position the pin
through the two holes in the downrod and align the
hanger ball so the pin is captured in the groove in the
top of the hanger ball. Pull the hanger ball up tight
against the pin. Securely tighten the set screw in the
hanger ball. A loose set screw could cause fan
wobble. (Figure 6)
7. Cut off excess lead wire approximately 6 to 9 inches
above top of the downrod. Strip insulation off 1/2 inch
from the end of each lead wire. (Figure 7)
Figure 6
Figure 7
6 to 9 in.
Hanger Bracket
Figure 8
8. Remove the two shoulder screws in the hanger
bracket and retain the screws for later. (Figure 8)
8
CAUTION
All set screws must be checked, and retightened where
necessary before installation.
To Next Page
